Minelab F3

F3 Service Manual
Page 30
 Three configuration links must be connected, two links set the detector to F3 or
F3L. One link sets the confidence tone to threshold tone or Heartbeat tone.
 If the detector has an LED display on the handle then the configuration links
must be set to F3L.
 If the detector does not have an LED display on the handle then the
configuration links must be set to F3.
f. To Close the Electronics Pack:
 Check the configuration links are correctly set refer to Figure 22.
 Attach the electronics pack housing, battery connector locking mechanism and
the bulkhead screws. Assembly is in the reverse order described in section
4.3.e Opening the electronics pack
F3L link
F3L link
F3 link
F3 link
Heartbeat
link
Threshold
tone
or

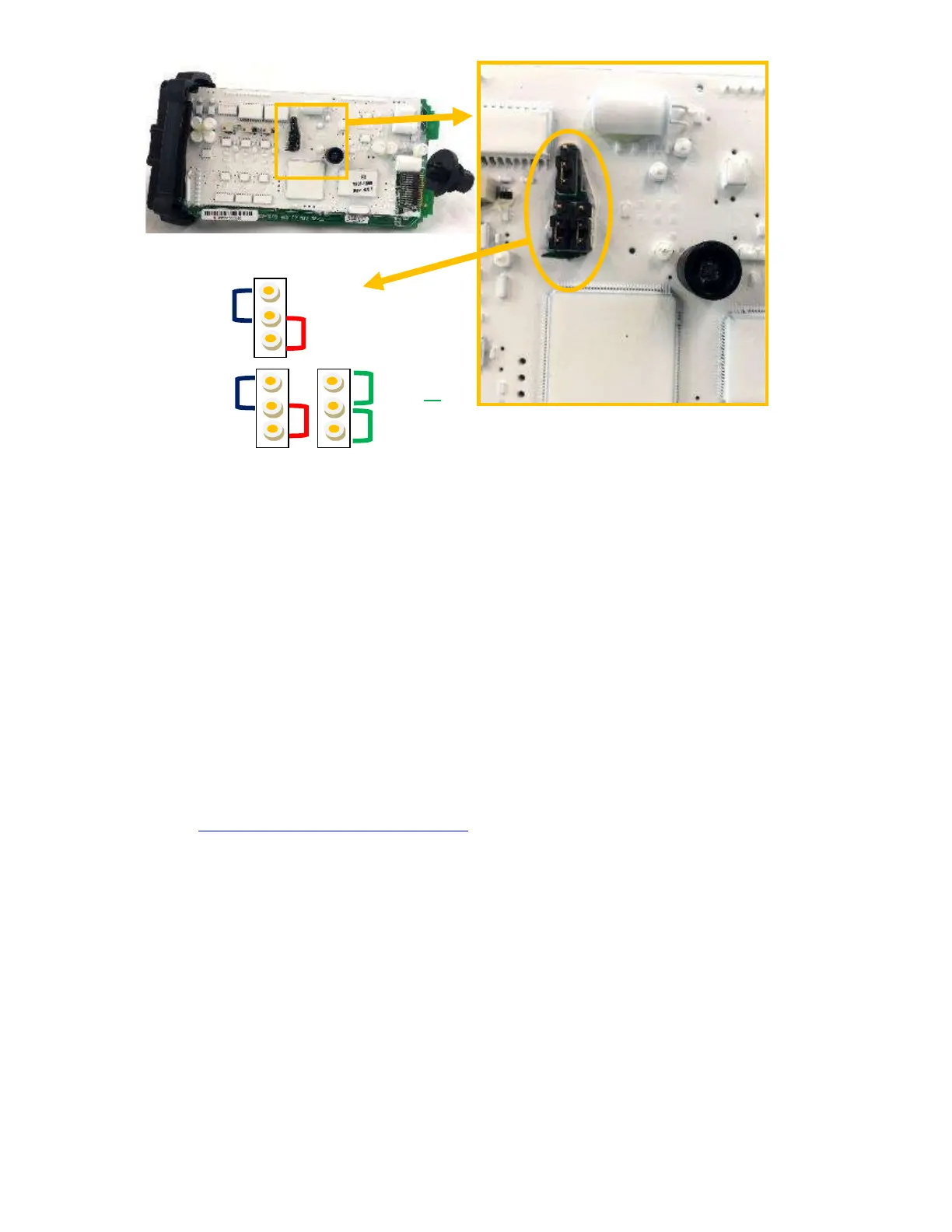

Figure 22: Configuration links.
