Minelab F3 Service Manual

F3 Service Manual
Page 32

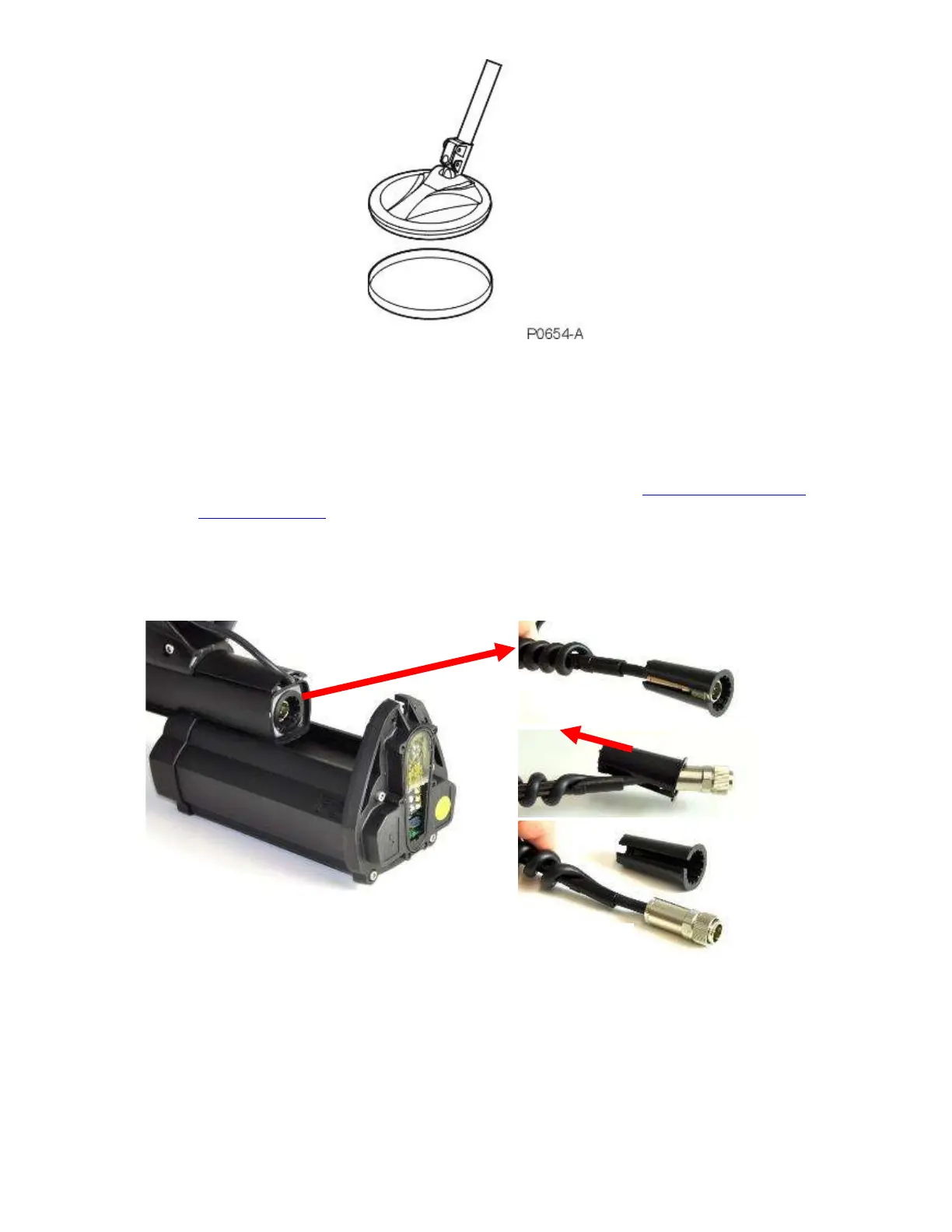

Figure 24: Replacing the Skid Plate.
b. To remove the coil:
 Retract the shafts and remove the battery pack and endcap.
 Remove the electronics pack as described in section 4.3a To remove the
electronics pack. However, there is no need to remove the electronics pack
from the upper shaft.
 Remove the retainer plug from the coil cable, if fitted, as shown in Figure 25.
 Allow the coil cable to retract into the shafts.
 Maintaining firm downward pressure on the 6.5mm screwdriver, carefully lever
the coil retainer cover off the coil top and remove it, as shown in Figure 26.
Figure 25: Removing Retainer Plug.
