 Lift the lower shaft with lower camlock assembly out of the coil top.
 Carefully pull the coil cable out from inside the shafts, as shown in Figure 27.
 If necessary, remove the coil pin for use with the replacement coil.

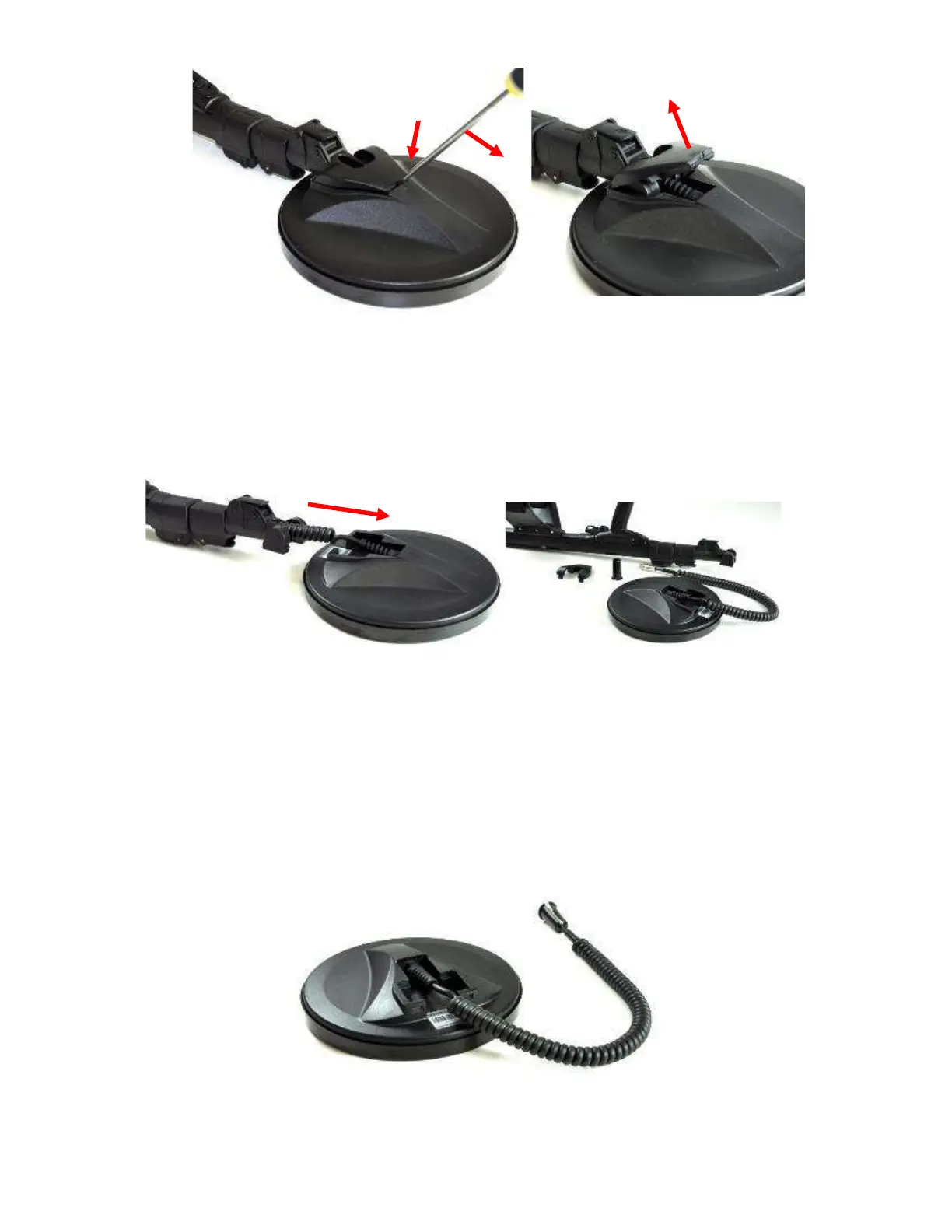

Figure 27: Removing the Coil.
NOTE
If there is any damage to the coil or coil cable, the coil must be replaced. There are
no repairable parts on the coil (other than the skid plate)
c. To Connect a Coil:
 Ensure a skid plate is fitted to the coil.
Figure 28: Coil.
1
2
3
Figure 26: Removing the Coil Retainer
