F3 Service Manual
Page 54
Fasten two screws into the cover ribbon cable. Shown in Figure 54. Tightening
these screws squeezes the grommet around the wiring loom creating a water
tight seal.

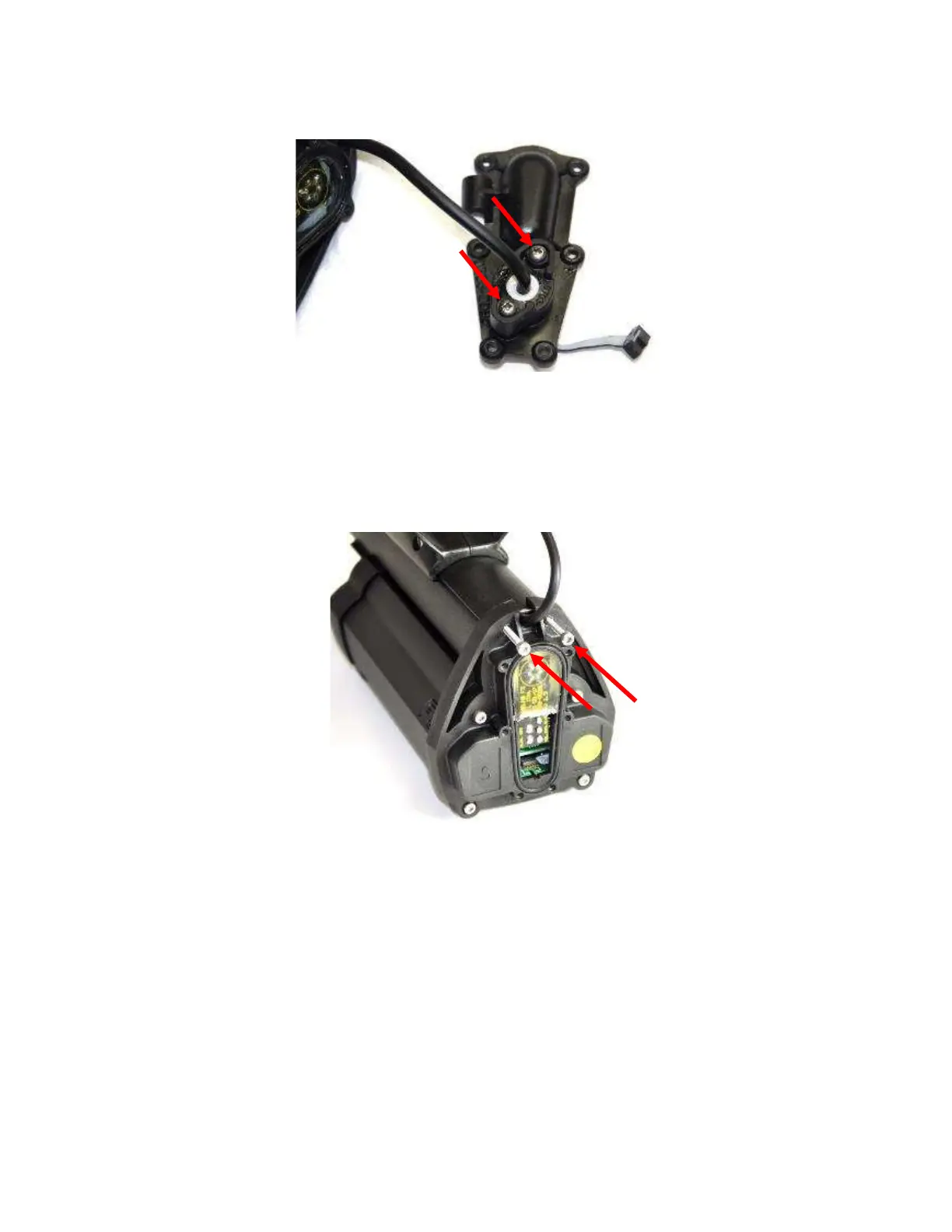

Figure 54: Cover Bulkhead.
Slide the electronics pack all the way along the upper shaft, ensuring the wiring
loom cable lays in the cut out at the top of the electronics pack rear cover.
Insert the two screws securing the electronics pack to the upper shaft.
Figure 55: Connecting the Electronics Pack to the shaft.
Clean and lightly grease the O-ring (Part 8).
Ensure the O-ring (Part 8) is positioned correctly in the groove under the
bulkhead cover in the electronics pack rear panel.
Ensure that the keyway on the wiring loom plug is towards the bottom of the
electronics pack then plug the wiring loom into the connector in the electronics
pack. Shown in Figure 56.
