F3 Service Manual
Page 55

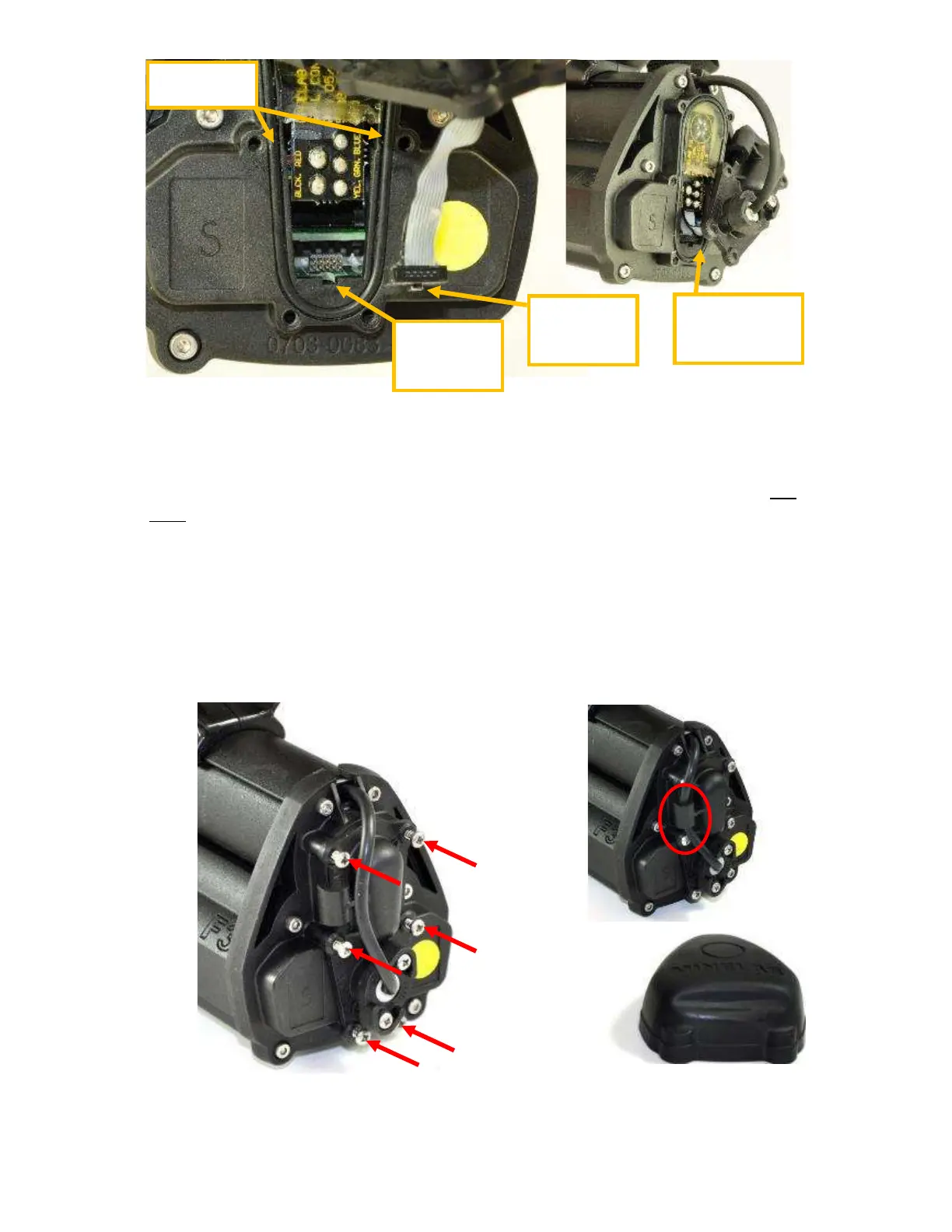

Figure 56: Connecting Wiring Loom to the Electronics Pack.
NOTE
Take great care when connecting the wiring loom plug to the electronics pack. DO
NOT force the connection because this could damage or break the connector on the
printed circuit board.
Fold excess wiring loom cable into the electronics pack above the plug. Shown
in Figure 56.
Attach the bulkhead cover with six screws. Route the wiring loom under the
cable router on the side of the bulkhead cover. Shown in Figure 57.
Figure 57: Attaching the Cover Bulkhead and routing of Wiring Loom
Connect the sensitivity endcap.
Keyway
Cut-out
Connector
Keyway
O-Ring
Wiring Loom
folded inside
To Next Page
