Minelab F3 Service Manual

F3 Service Manual
Page 62
d. To Reassemble the Camlock Upper:
 Press the camlock body upper on to the upper shaft, ensuring that that the
square hole in the camlock body is aligned with the cut-out in the upper shaft.
Shown in figure 64.

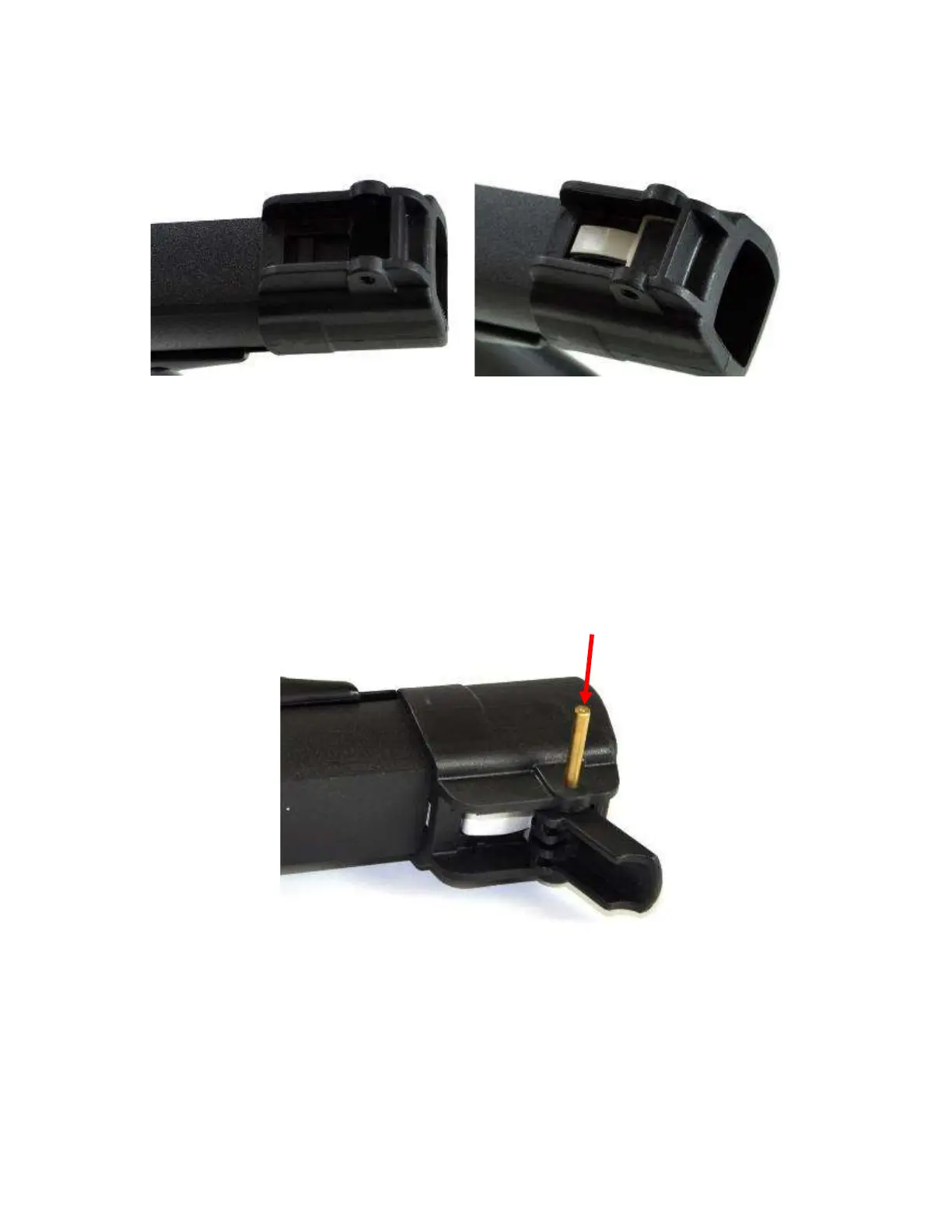

Figure 64: Camlock Upper.
 Place the tail of the pressure block upper into the recess in the rear of the
camlock body upper and push the block down into the square hole. Shown in
figure 64.
NOTE
Ensure that the pressure block does not protrude too far into the shaft. If necessary
push it back into the camlock body otherwise difficulty may be encountered when
fitting the middle shaft.
Figure 65: Reassembling the Camlock Upper.
 Hold the cam lever in place whilst the pin is pushed into the camlock. Shown
in Figure 65.
 Open the cam lever upper.
e. To Reassemble the Camlock Middle and Middle Shaft:
