Minelab F3 Service Manual

F3 Service Manual
Page 61
 Using Figure 62 as a guide, use the 3mm hex driver (Allen key) or punch to
push out the pin (Part 5) from the camlock middle.
 Remove the cam lever.
 Remove the pressure block by pushing it out from inside the shaft.
 Remove the middle shaft by pushing it back through the upper shaft.
c. To Disassemble the Camlock Upper:

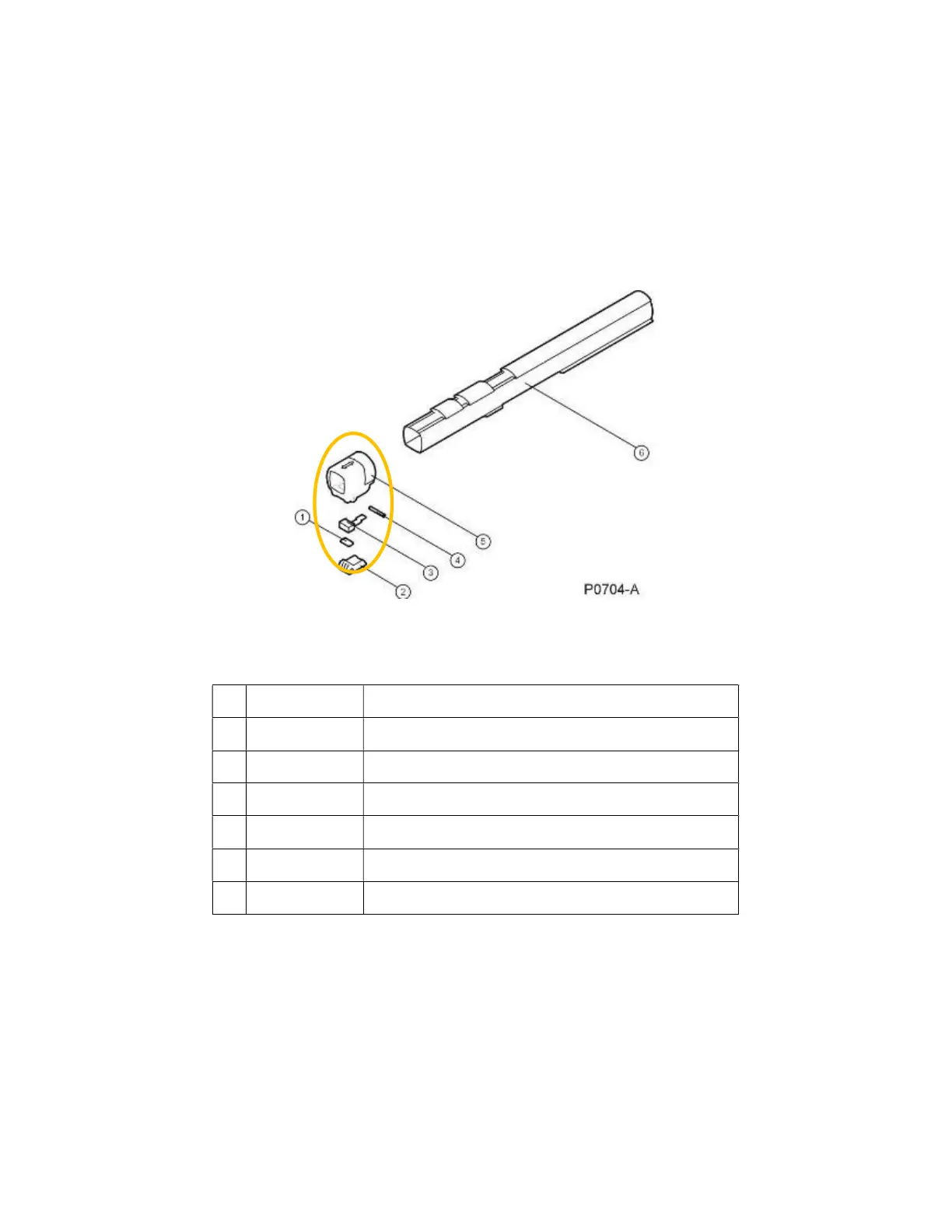

Figure 63: Camlock Upper.
Table 10: Camlock Kit Upper
3004-0013 Camlock Kit Upper, contains items 1 to 5
1 8008-0030 Wear Plate
2 8008-0005 Cam Lever
3 8008-0068 Pressure Block Upper (includes wear plate)
4 4308-0003 Pin Cam Lever
5 8008-0021 Camlock Body Upper
6 8007-0023 Upper Shaft (Not Part Of Camlock Kit)
 Using Figure 63 as a guide, use the 3mm hex driver (Allen key) or punch to
push out the pin cam lever pivot (Part 4) from the upper camlock (Part 5).
 Remove the cam lever.
 Remove the upper pressure block by pushing the block out from inside the
shaft.
 Remove the camlock body upper from the upper shaft.
