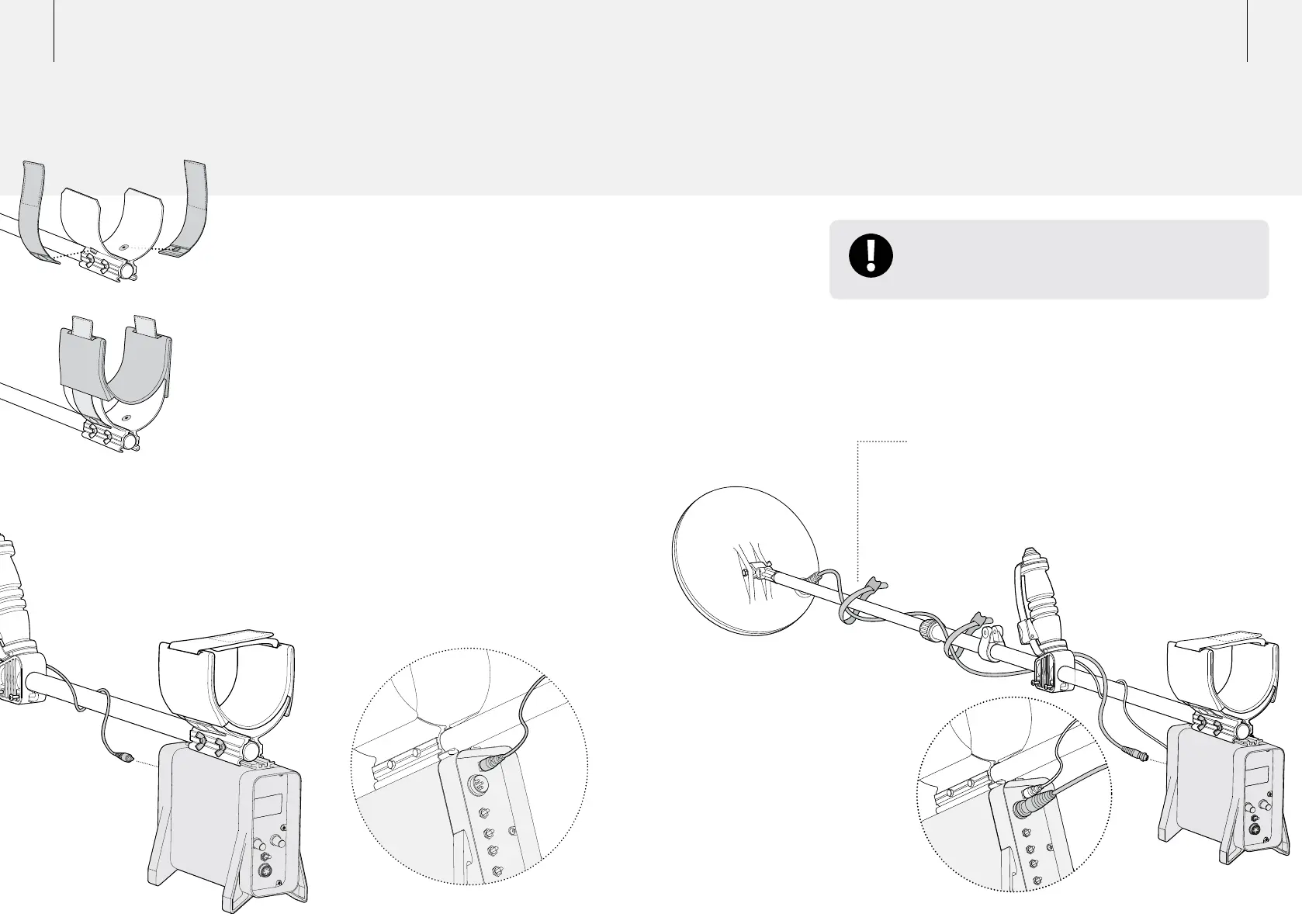

Connecting the Coil Cable:
1 Wind the coil cable around the lower and upper shafts
enough times to take up the slack. Leave enough slack at
the bottom of the cable near the coil to allow the angle of
the coil to be adjusted while detecting.
2 Use the velcro straps to secure the coil cable to the shaft.
3 Plug the coil connector into the coil socket on the control
box, firmly tightening the retaining ring to hold it in place.
Note: If the Quick-Trak cable
becomes loose try securing
it onto the shaft with
electrical tape.
Attaching the Armrest Straps to
the Armrest:
1 Press both strap studs onto the armrest studs.
2 Push the armrest straps through the slots in the armrest
cover and then slide the cover over the armrest.
Connecting the Control Box to
the Upper Shaft:
1 Place the detector on a flat surface, with the handle
facing upwards.
2 Position the armrest on top of the control box.
3 Clip the control box onto the armrest, ensuring the battery
plug faces away from the coil.
4 Fasten with the wing-nuts.
5 Wind the Quick-Trak button cable around the upper shaft
and plug it into the Smart Point socket in the control box.
Ensure that the cable is wrapped firmly but avoid strain on
the connector.
Always ensure that the control box is turned off before
connecting or disconnecting the coil to avoid damage to
the detector's electronics.
