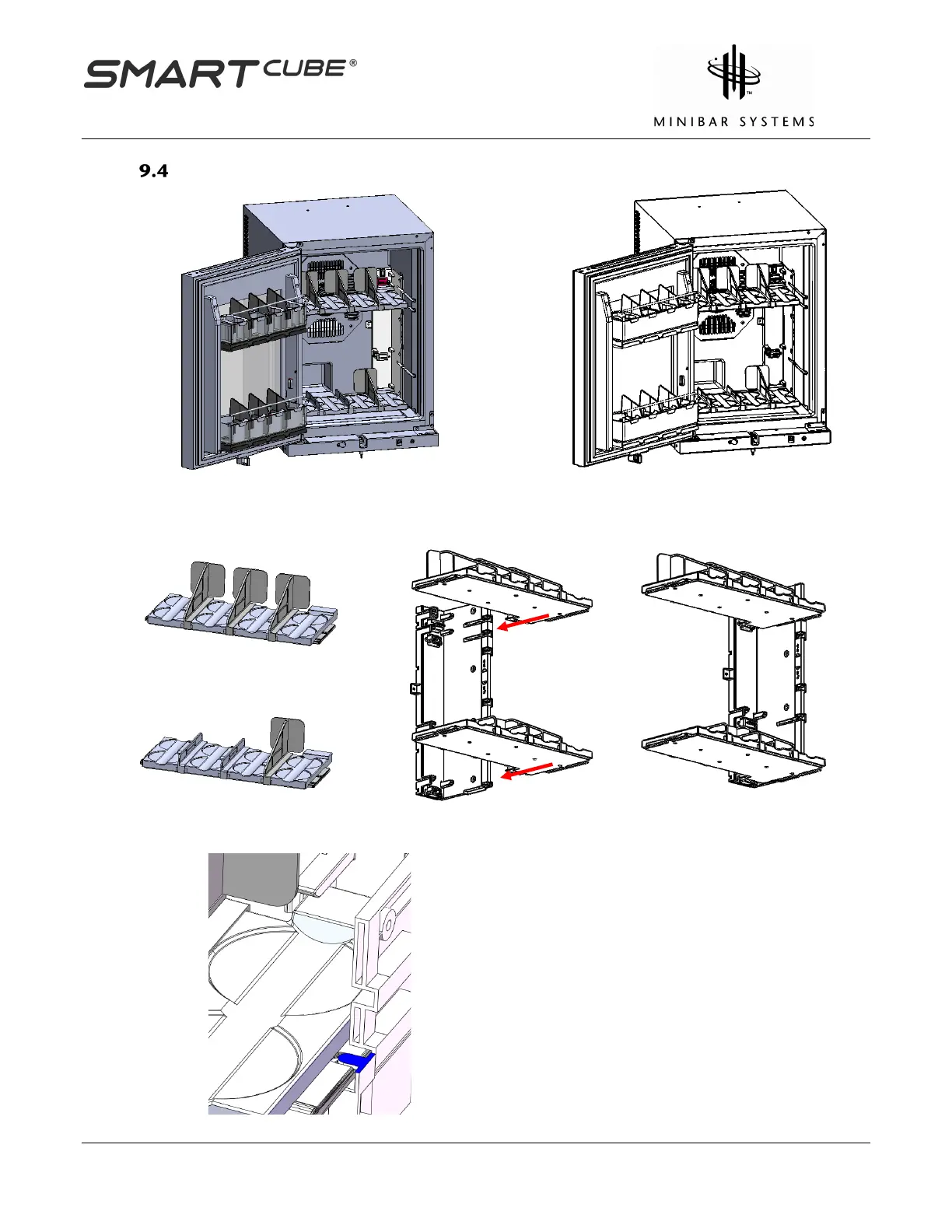

Cube Shelf Installation
Connect dividers (MB-PP-0005 and PULF0015) to the sensor shelves. Once assembled onto sensor
shelf (MB-MA-0034) slide the sensor shelves in the slots of the cube to connect onto the backplane
connectors.
Push down on the lock bar to secure shelves onto
the backplane frame.
