Console Box Installation

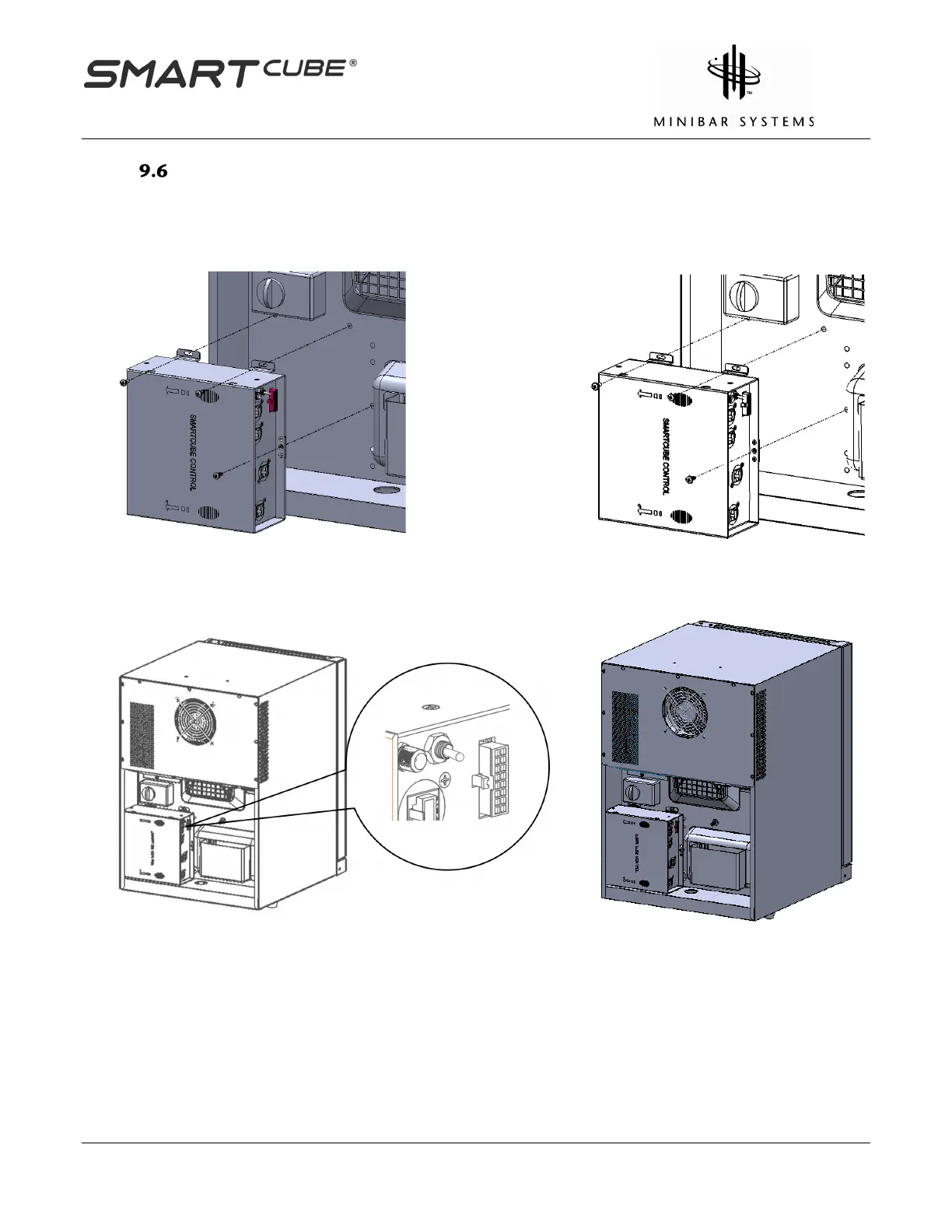

Mount the Console Box to the SmartCube back using 2
Round Philips Head screws (MB-NP-0027) and 1 Flat
Philips Head screw(MB-NP-0029).
Connect all cables back according to the wiring diagram
and then swith on the power supply unit.
