minnkotamotors.com | 21
©2018 Johnson Outdoors Marine Electronics, Inc.

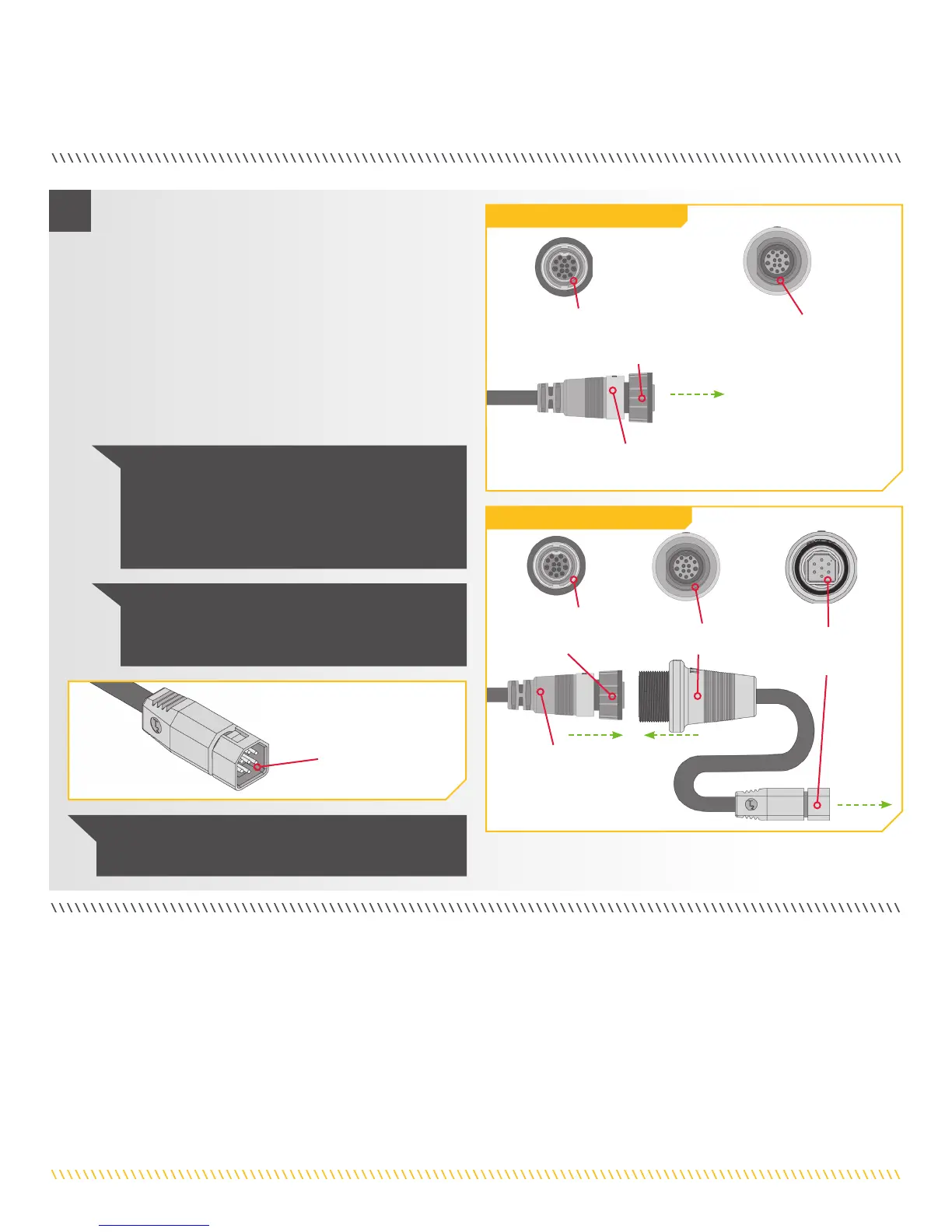

FEATURE OVERVIEW AND CONNECTING THE CABLES
Adapter Cable
(Helix ONLY)
Adapter
Cable Keyed
Connection
Locking Collar
Fourteen Pin Connector
Built-In MEGA
Down Imaging from
Trolling Motor
Humminbird Helix Fish Finder
Plug into
Helix Fish
Finder
b. When installing with a Solix, the Built-In MEGA
Down Imaging cable can be plugged directly into
the Solix fish finder. Plug the Built-in MEGA Down
Imaging cable into the corresponding connection on
the Solix fish finder.
c. When installing with a Helix, first attach the Adapter
Cable and then plug the Adapter Cable into the
Helix fish finder. The Adapter Cable will only have
one connection that is keyed on the back of the
Helix fish finder. Plug the Adapter Cable into the
only matching keyed connection.
2
Solix Fish Finder
Connection
Plug directly into
Solix Fish Finder
Locking Collar
Fourteen Pin Connector
Built-In MEGA Down Imaging
from Trolling Motor
Humminbird Solix Fish Finder
NOTICE: Check for compatibility or any required
adapter cables online at minnkotamotors.com. The
cable from the trolling motor can be extended with a
10’ Extension Cable #720081-1 or the 30’ Extension
Cable #720081-2 found at humminbird.com.
NOTICE: If any cables need to be routed, please
follow the guidelines in the Routing Connection
Cables section of these installation instructions.
Keyed Adapter Cable
for Helix Fish Finder
NOTICE: The connectors are keyed to prevent
reversed installation.
To Next Page
