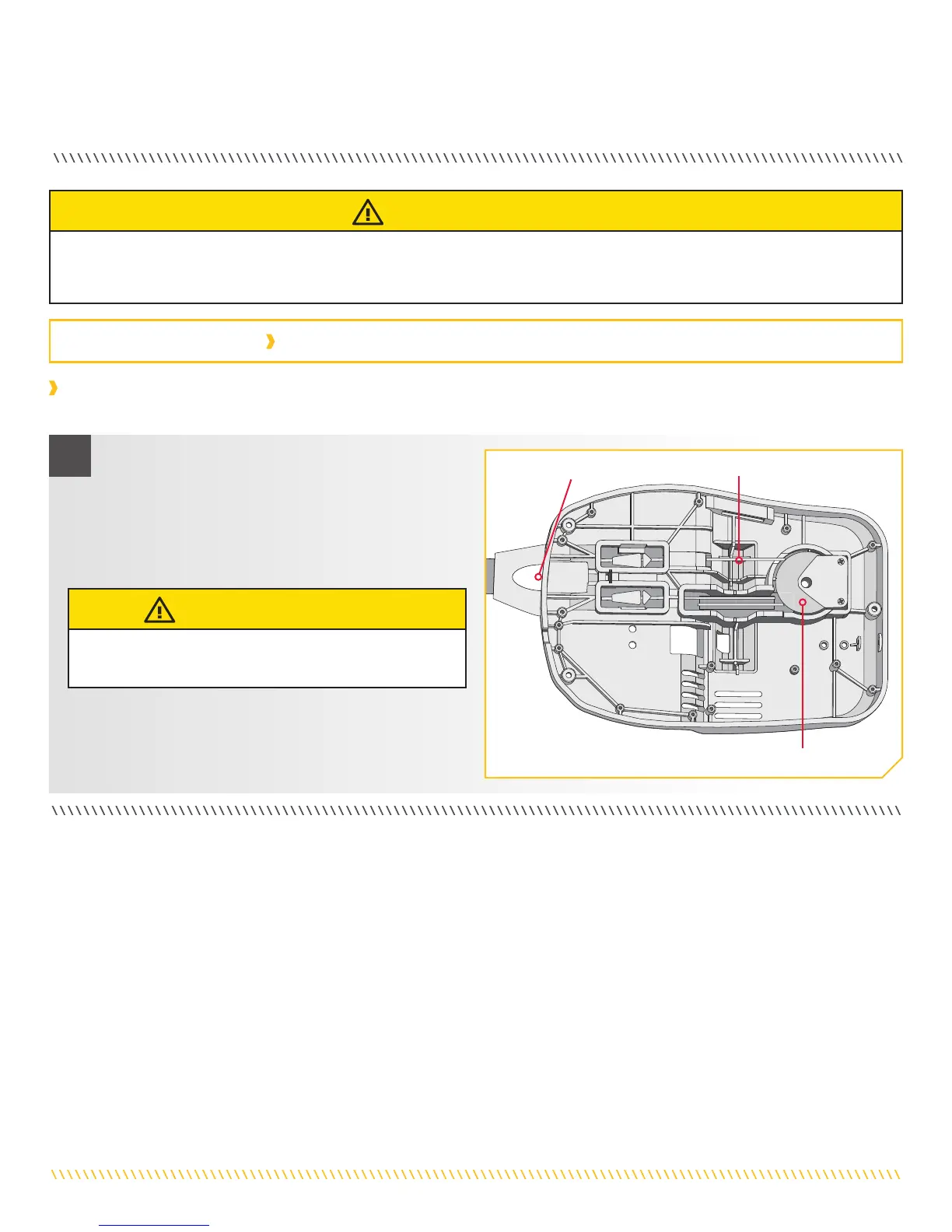

ADJUSTING THE STEERING CABLE
Stainless Steel Cable
Cable Tension Adjustment Screw
Cable Pulley
CAUTION
Route the Foot Pedal Cable neatly to minimize tripping hazards.
Practice proper ergonomics when operating the Foot Pedal to avoid fatigue and prevent injury.
FOOT PEDAL ADJUSTMENTS
The steering cable tension is pre-set at the factory but, through normal use, may need occasional adjustment.
Adjusting the Steering Cable
a. Adjust the tension of the cables by turning the cable
tension adjustment screw (Phillips pan-head screw)
located near the bottom of the foot pedal, just under
the steering cable cover.
b. Turn the screw clockwise to increase tension and
counter-clockwise to decrease tension.
1
CAUTION
If the cable becomes too loose, it may disengage the wrap
drum in the control box or the pulley in the foot pedal.

MINN KOTA FORTREX Specifications

General

Thrust	80 lbs
Shaft Length	45 inches
Max Amp Draw	56 Amps
Speed Control	Variable
Blade Material	Composite
Motor Technology	Digital Maximizer
Voltage	24V
Control Type	Cable Steer Foot Pedal
Mount Type	Bow
Type	Trolling Motor
Battery Requirement	2 or 3 deep-cycle batteries
Warranty	2 years
