PARTS DIAGRAM & PARTS LIST
FORTREX - 80/112 LBS THRUST - 24/36 VOLT - 45”/52” SHAFT
The parts diagram and parts list provides Minn Kota® WEEE compliance disassembly instructions. For more information about where
you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please
contact your dealer or distributor from which your product was purchased. Tools required, but not limited to: flat head screwdriver,
Phillips screwdriver, socket set, pliers, wire cutters.

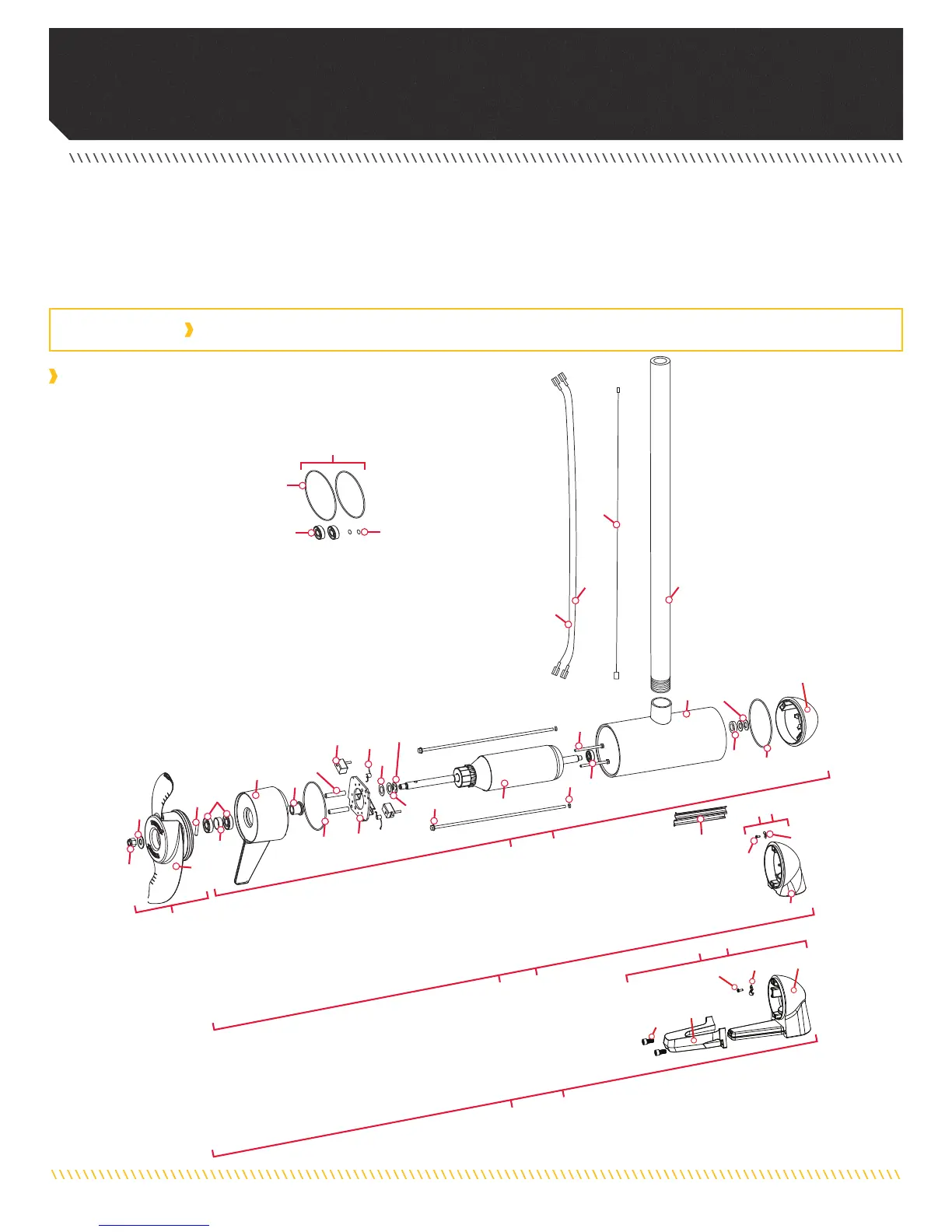

24 Volt 4” Motor Parts Diagram
FORTREX MOTOR
U
50
48
46
52
60
58
54
56
16
18
10
14
26
38
20
22
24
36
6
34
2
32
28
4
30
8
42
40
26
12
44
AA
64
62
26
16
28
X
Z
V
W
H
J
SS
TT
K
M
66
72
62
68
70
74

MINN KOTA FORTREX Specifications

General

Thrust	80 lbs
Shaft Length	45 inches
Max Amp Draw	56 Amps
Speed Control	Variable
Blade Material	Composite
Motor Technology	Digital Maximizer
Voltage	24V
Control Type	Cable Steer Foot Pedal
Mount Type	Bow
Type	Trolling Motor
Battery Requirement	2 or 3 deep-cycle batteries
Warranty	2 years
