USING THE FOOT PEDAL
To Adjust Motor Speed
Turn the speed knob clockwise to increase speed and counter-clockwise to decrease speed.
To Operate the Motor in Momentary Mode
The default mode of operation for the foot pedal is Momentary. In this mode, the motor will only run while downward force is applied to the
Momentary On button on the top of the foot pedal. A toe touch to the Momentary button on the top of the foot pedal will turn the propeller
on in this mode. Removing downward force on the Momentary button will turn the propeller off.
To Operate the Motor in Constant Mode
To switch to Constant Mode, flip the side-mounted Constant On
switch until the propeller starts. In Constant Mode, the propeller
will continually run, regardless of whether force is being applied
to the Momentary On button on the top of the foot pedal.
To Turn Left or Right
Push the toe end of the foot pedal down to turn right and push
the heel end of the foot pedal down to turn left. The indicator
on the motor head shows the direction of the motor. The motor
will not maintain its own heading. You must keep your foot on
the pedal to control steering during operation.
To Reverse the Motor
The motor always travels in the direction of the indicator. You
can reverse the direction of the motor by turning the motor
180° from straight ahead.
Toe End
Speed Knob
Heel End
Constant On
Switch
Momentary On
Button
Directional
Indicator

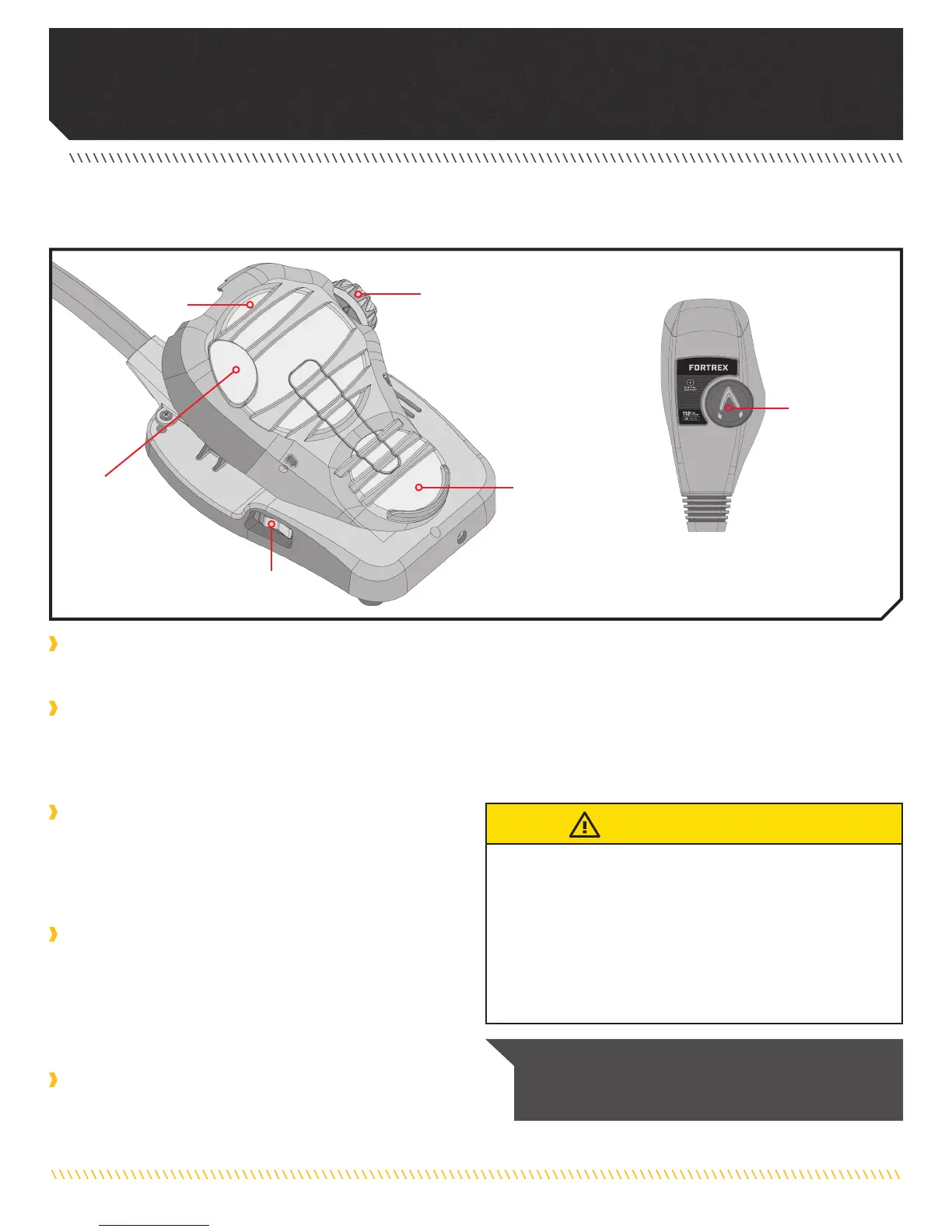

CONTROLLING SPEED & STEERING WITH THE FOOT PEDAL
Most controls on the Foot Pedal are easy to operate by either foot or hand.
CAUTION
Make sure that the Constant On Switch is turned off when the
motor is not in use.
For safety reasons, disconnect the motor from the battery/
batteries when the motor is not in use or while the battery/
batteries are being charged.
Moving parts can cut or crush. Avoid pinch points when
operating the Foot Pedal.
NOTICE: Remember to turn the power off when the
motor is not in use to prevent the motor from draining the
battery.

MINN KOTA FORTREX Specifications

General

Thrust	80 lbs
Shaft Length	45 inches
Max Amp Draw	56 Amps
Speed Control	Variable
Blade Material	Composite
Motor Technology	Digital Maximizer
Voltage	24V
Control Type	Cable Steer Foot Pedal
Mount Type	Bow
Type	Trolling Motor
Battery Requirement	2 or 3 deep-cycle batteries
Warranty	2 years
