minnkotamotors.com | 39
©2018 Johnson Outdoors Marine Electronics, Inc.

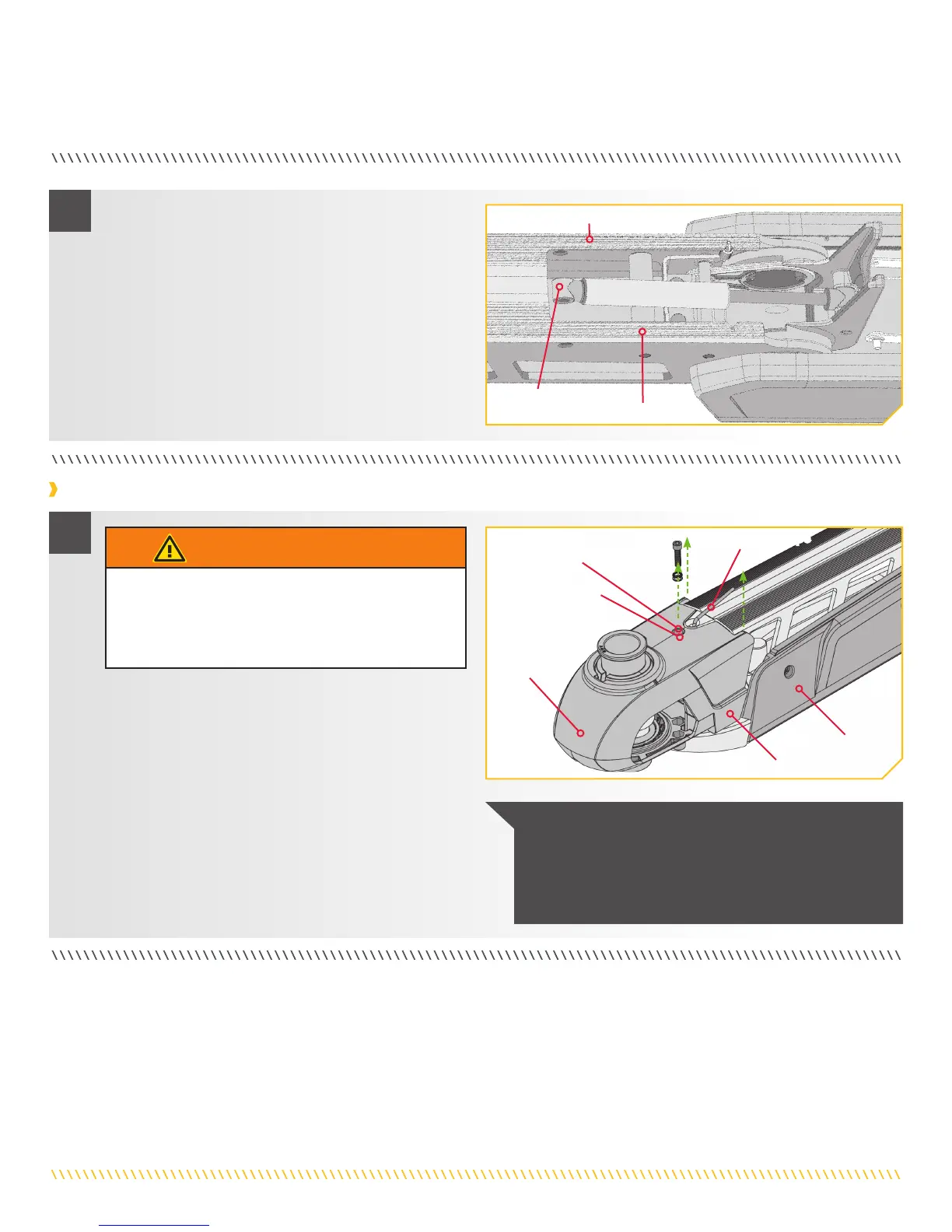

SERVICE & MAINTENANCE
1
2
d. Once the screws are removed, the pin and spacers
can be removed from the Upper Cylinder.
e. Now it is safe to remove the motor from the bow
mount when the motor is in the deployed position.
Gas Spring Cylinder
Outer Arm
Outer Arm
a. With the gas spring disconnected, place the motor in
the deployed position.
b. Remove the 5/16" Allen Screw with a 1/4" Allen
Wrench. The 5/16" Allen Screw is located on the
opposite end of the mount from the hinge that opens
and closes when the mount is stowed and deployed.
c. Once the Allen Screw and Lock Washer are removed,
lift the Bowguard straight up until it is free from the
mount.
Mount
Allen Screw
Lock Washer
Pull Grip and Rope
Keyways
Bowguard
Remove Motor From Mount
NOTICE: To re-assemble the motor, first refer to the
"Assembly of Motor to Mount" section of this Manual. Once
re-assembled, follow the directions for "Installing the Gas
Spring Pin" section of this Manual to re-engage the Lift
Assist.
WARNING
Moving parts can cut or crush. The gas assist lift
mechanism is under pressure. Disconnect gas spring
before removing motor from mount. Do not engage the
pull grip and rope until gas spring is disconnected.
