INSTALLATION
INSTALLING THE FORTREX
Your new Fortrex comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or
coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket, refer
to the installation instructions provided with the bracket. For compatible quick release mounting bracket, please visit minnkotamotors.
com. To install the motor directly to the boat, please follow the instructions provided in this manual. Please review the parts list,
mounting considerations and tools needed for installation prior to getting started. For additional product support and to locate your
nearest dealer, please visit minnkotamotors.com.
3
4
5
6
10
11
13
14
15
12
9
8
7
Item /
Assembly
Part # Description Qty.
3
✖
MOTOR ASSEMBLY 1
A 2994887 INSTALLATION HARDWARE BAG ASSEMBLY 1
4 2263468 1/4 - 20 X 2.5" SS PPH SCREW 6
5 2263103 1/4 - 20 SS NYLOCK NUT 6
6 2261713 1/4 FLAT 18-8 SS WASHER 6
AA 1378132 80# THRUST PROP KIT 1
BB 1378160 112# THRUST PROP KIT 1
7 2341160 PROP-WW2 (4.5)W/ADP.RING 1
8 2091701 WASHER-PROP (LARGE) 1
9 2093101 NUT-PROP NYLOC,LG, MX101 3/8 SS 1
10 2262658 PIN-DRIVE 1" 3/16" S/S 1
B 2991925
p BRACKET STABLZR ARM ASY (SUB) 1
11 22655100 BUMPER STABILIZER 1
12 2263624 STABILIZER ROD 1
13 2263107 NYLON HEX NUT 3/4 - 10 UNC 1
14 2281829 BRACKET 1
15 2260221 VINYL CAP 1
16 2223100 NUT 5/16-18 NYLOCS SS 2
17 2263422 BOLT 5/16-18 X 1" SS CAP SCREW 2
18 2281700 5/16 "ID X .457 OD HIGH COLLAR LOCK WASHER 2
20 2773806 STRAP, HOLD DOWN 1
C 2994912 BAG ASSY, FORTREX MOUNT HDW 1
25 2283410 SCREW-1/4-20 X .500" PFH 2
26 2281710 SPACER, GAS SPRING, FORTREX 2
27 2282610 PIN, UPPER SHOCK 1
p
2287110 INSTALLATION GUIDE, FORTREX 1
D 2991650 MNT FW 80# 45”, 112#/HC 52” *80 LB 45”* *112 LB 52”* 1
E 2991652 MNT ASM FTX FW 80# 52/62” *80 LB 52”* *80 LB 62”* 1
F 2991653 MNT ASM FTX FW 112# 45” *112 LB 45”* 1
G 2991654 MNT ASM FTX FW 112# 52” *112 LB 52”* 1
32
2211415 Ì CABLE-EXTENSION, PD/AP 110" *PRE-INSTALLED* 1
490507-2 â CABLE, ADP-INT MDI 14 M12-174" *PRE-INSTALLED* 1
A
BB
AA
B
D
E
F
G
17
25
16
27
18
26
20
32
C

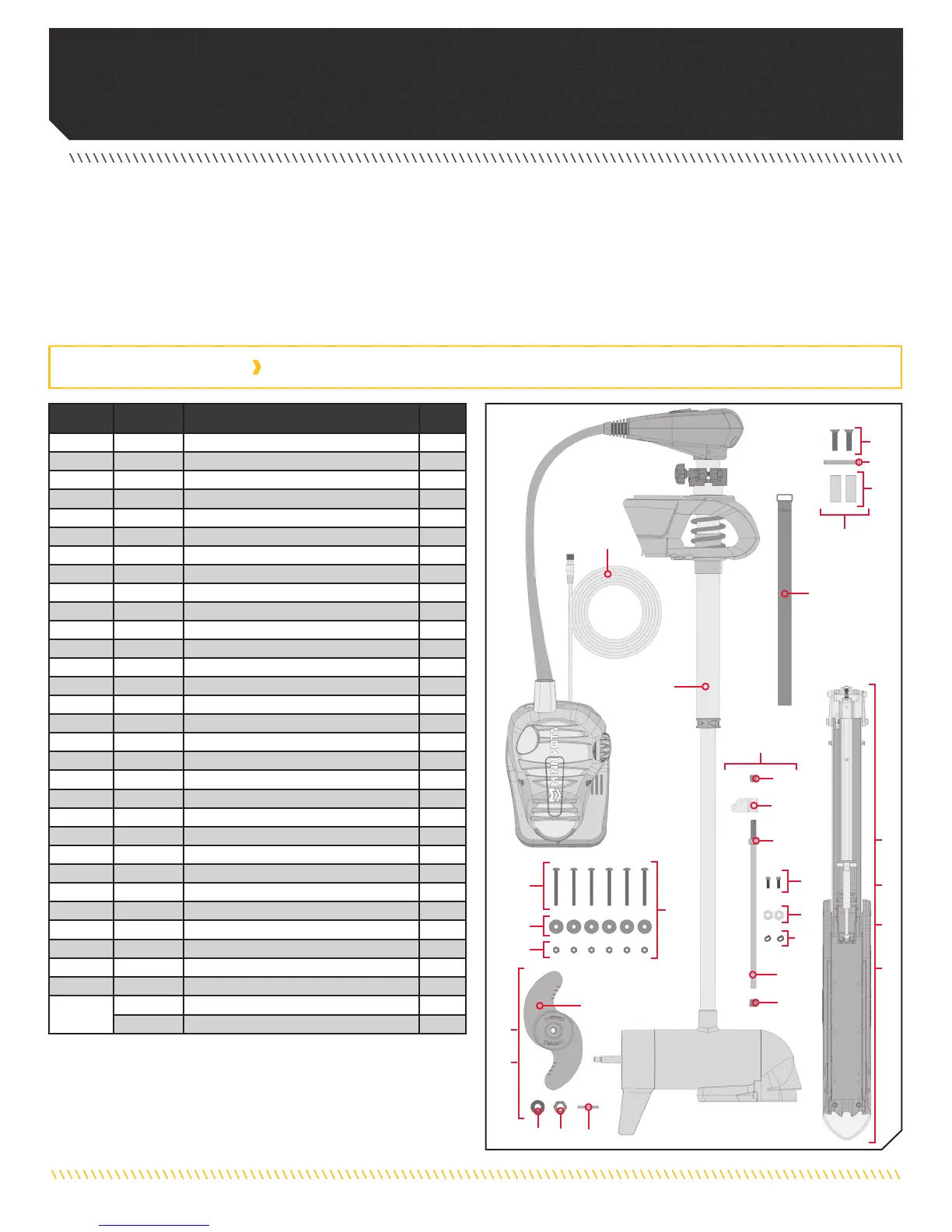

INSTALLATION PARTS LIST
p Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
Ì Only available with models factory installed with Universal Sonar.
â Only available with models factory installed with Built-in MEGA Down Imaging.
p The Bow-Mount Stabilizer Assembly is not required or included on the 80lb
45” Fortrex.
