USING & ADJUSTING THE MOTOR

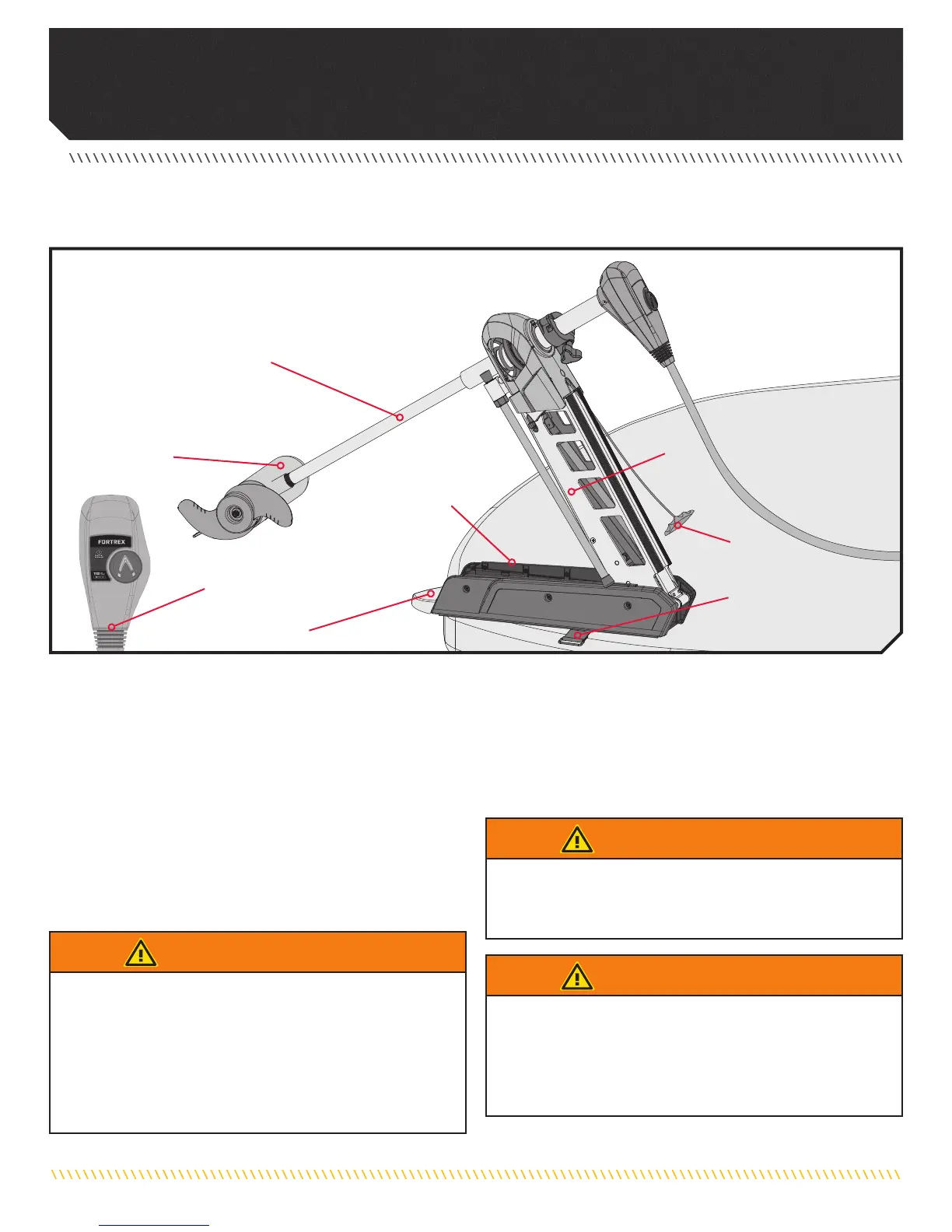

MOUNT FEATURES
Become familiar with the features of the motor to maximize the capabilities this product offers.
• The motor Mount is designed to fold back and lock the motor flat on the deck when not in use and to provide secure stowage for
transport.
• The Pull Grip and Rope releases the lock bar, which automatically engages when the unit is lowered or raised into position. The Pull
Grip and Rope should be used to both lower and raise the unit.
• The Motor Rest positions the Lower Unit as it comes in contact with the nose of the mount and guides it onto the Motor Rest.
• The Yoke captures the Motor Shaft and keeps the Lower Unit centered on the Motor Rest.
• The Hold Down Strap must be used to place pressure on the
motor shaft to hold the lower unit tightly against the motor
rest when stowed.
• The Pull Grip and Rope can be stored by placing the Pull
Grip into the rope stow slot on the control box of the motor.
Lower Unit
Motor Shaft
Motor Rest
Rope Stow Slot
Motor Ramp
Hold Down Strap
Pull Grip and Rope
Mount
WARNING
The prop may turn on unexpectedly if the control board fails.
Prevent injury from a turning propeller and always know how to
quickly disengage the power.
WARNING
Be alert for unexpected boat movement when operating the
Fortrex. The boat may encounter sharp turns and jolts if the
steering is changed sharply or if broad changes in speed are
made while operating. Maintain balance and observe safe
motor operation.
WARNING
The Fortrex is not intended to be a primary propulsion
motor. Heavy use of the motor can cause elevated motor
temperatures, which can be increased by an excessively hot
operating environment. Use care when handling the Control
Head and Foot Pedal to avoid burns or injuries from excessive
heat. In the event that the motor or speed control would break,
always be prepared to take manual control of the boat.
