SERVICE & MAINTENANCE

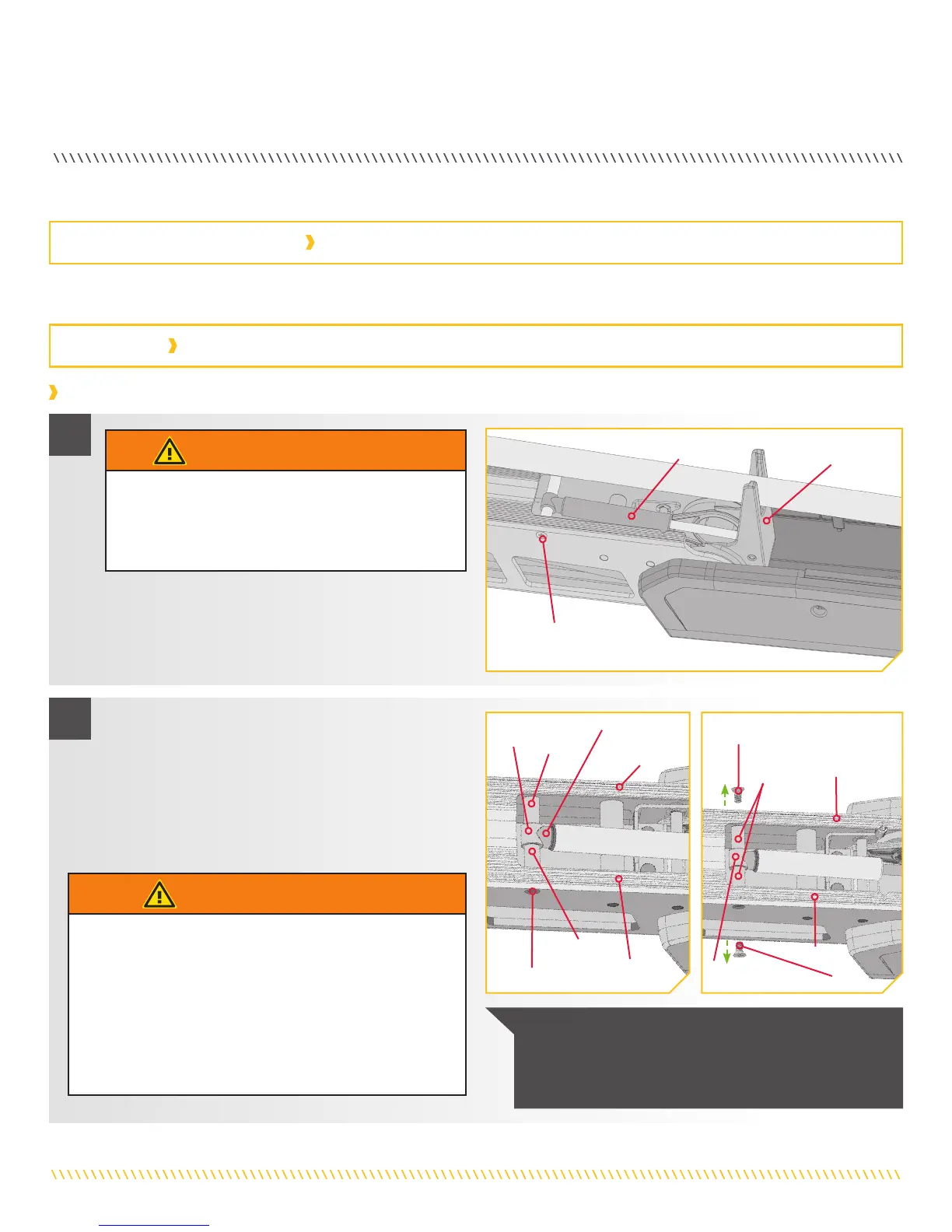

a. In order to remove the Bowguard, the Gas Spring
needs to be disconnected. Place the motor in the
stowed position.
Phillips Screw
Phillips Screw
Phillips Screw
Spacers
Spacer
Spacer
Gas Spring
Cylinder
Gas Spring
Cylinder
Outer Arm
Outer Arm
Outer Arm
Outer Arm
Upper
Cylinder Pin
b. To disconnect the Gas Spring, locate the Upper
Cylinder Pin. Two Phillips Screws hold the Upper
Cylinder for the Gas Spring in place. Using two #3
Phillips screwdrivers, hold the screw at one end of
the Upper Cylinder Pin in place.
c. Remove the screw at the opposite end of the pin with
the other #3 Phillips screwdriver.
REMOVAL OF THE BOWGUARD
(2) #3 Phillips screwdrivers
1/4” Allen Wrench
Torque Wrench
Needle Nose Pliers
TOOLS AND RESOURCES REQUIRED
INSTALLATION
1
2
Disconnect the Gas Spring
WARNING
Moving parts can cut or crush. The gas assist lift
mechanism is under pressure. Disconnect gas spring
before removing motor from mount. Do not engage the
pull grip and rope until gas spring is disconnected.
WARNING
The gas assist lift mechanism in this unit is under high
spring pressure when the motor is in the deployed position.
Do not remove the Steering Module assembly from the
mount without disconnecting one end of the gas spring.
Failure to do this can create a condition where accidental
pulling of the pull grip and rope may cause the mount to
spring open rapidly, striking anyone or anything in the direct
path.
NOTICE: Use a #3 Philips screwdriver to remove the
screws. They have a pre-applied thread locker. Not using
the recommended tool can cause damage and prevent
them from being removed.
Phillips Screw
Gas Spring Cylinder
Yoke
To Next Page
