FEATURE OVERVIEW AND CONNECTING THE CABLES

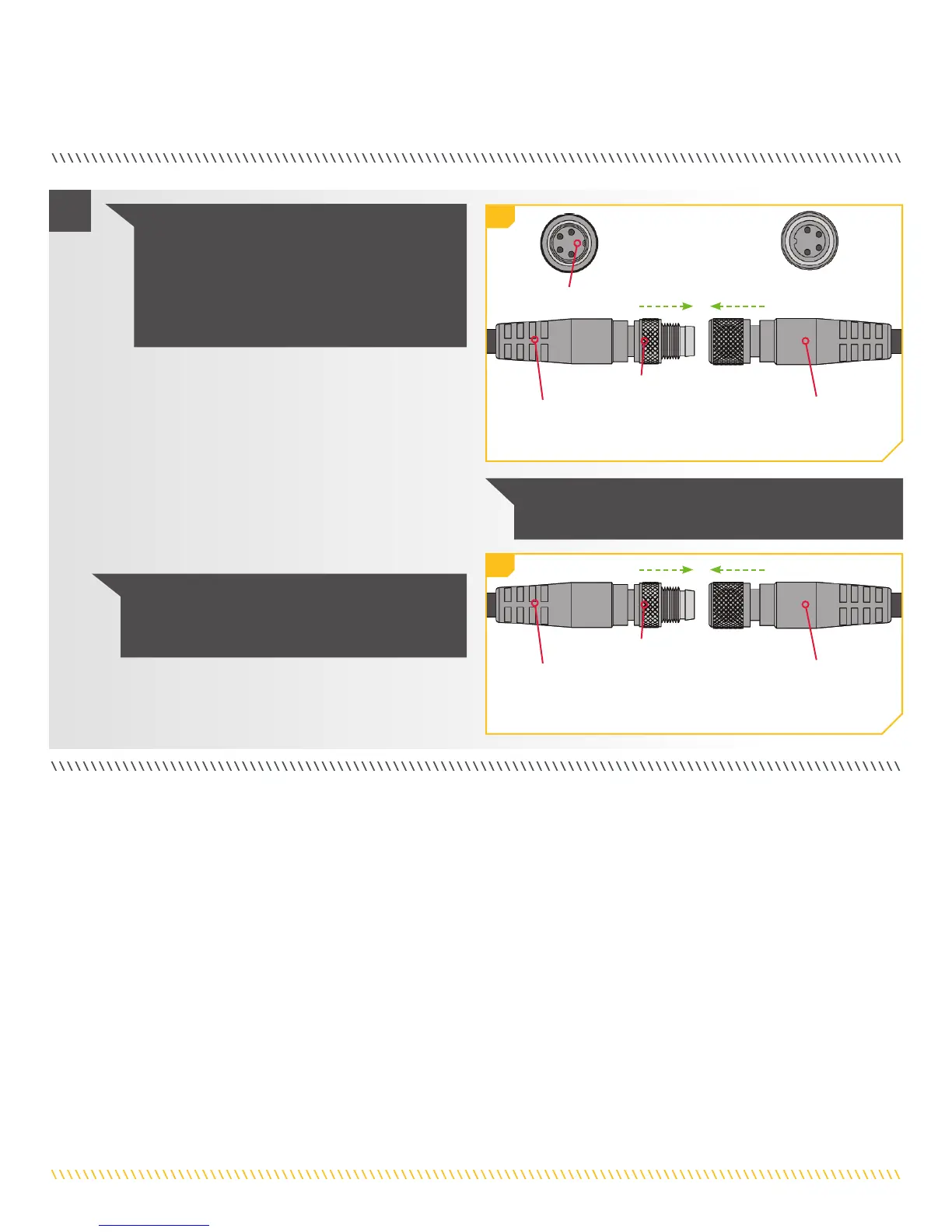

c. Take the Universal Sonar Extension Cable, if needed,
and attach it to the Universal Sonar Cable exiting the
Foot Pedal. Firmly push the plug together and twist
the locking collar until it is snug.
NOTICE: The connectors are keyed to prevent reversed
installation.
Four Pin Connector
Universal Sonar
Cable from
Foot Pedal
Universal Sonar Cable from
Foot Pedal OR Universal
Sonar Extension Cable
Universal Sonar
Extension Cable
Universal Sonar
Adapter Cable to
fish finder
Locking Collar
Locking Collar
2
NOTICE: If any cables need to be routed, please
follow the guidelines in the Routing Connection
Cables section of these installation instructions.
NOTICE: The Universal Sonar Cable may not be
long enough to reach the fish finder. If the cable
length does not reach the desired fish finder
installation location, a 14.5’ extension cable is
available to purchase. Minn Kota recommends
using the MKR-US2-11.
d. Install the Universal Sonar Cable that exits the Foot
Pedal or the Universal Sonar Extension Cable (if
used) to the appropriate Universal Sonar Adapter
Cable. Install the Adapter Cable to your fish finder.
Refer to your fish finder manual for complete
installation instructions.
2d
2e

MINN KOTA FORTREX Specifications

General

Thrust	80 lbs
Shaft Length	45 inches
Max Amp Draw	56 Amps
Speed Control	Variable
Blade Material	Composite
Motor Technology	Digital Maximizer
Voltage	24V
Control Type	Cable Steer Foot Pedal
Mount Type	Bow
Type	Trolling Motor
Battery Requirement	2 or 3 deep-cycle batteries
Warranty	2 years
