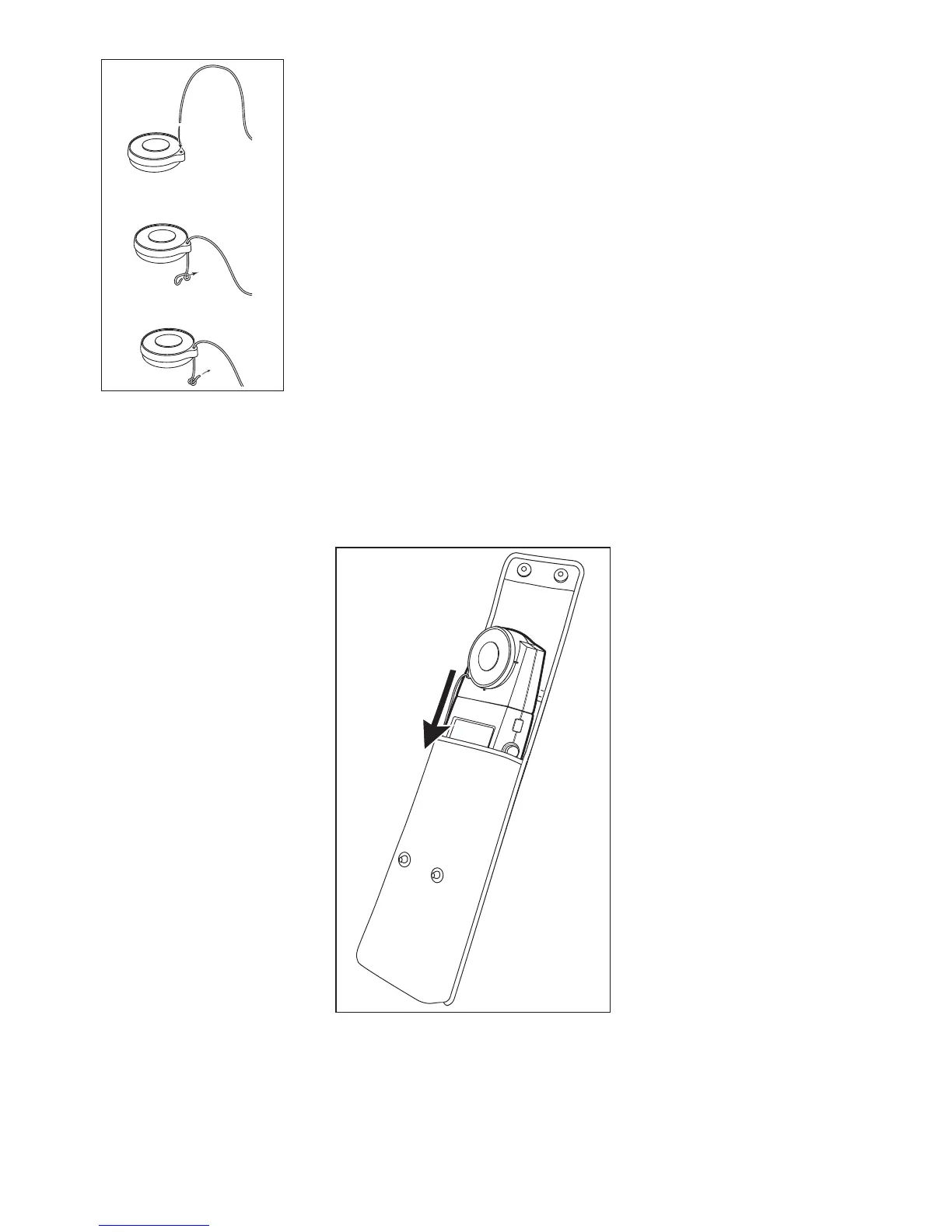

Placing the CHROMA
METER into the Case
Set the cap onto the receptor window
, and slide the CHROMA
METER into the case.
3.
Pass the string back through the hole in the cap, and tie a knot at
the end of the string so that the cap cannot come of
f.
