0 [SET] key ......................... • Sets the instrument into SET mode.
• Registers a numeric setting into memory.
A [▲][▼] keys ...................... Use the keys to change a numeric value or move the
decimal point.
B [
䊳
/D-OUT] key ................. • In modes other than SET mode, use this key to out-
put measurement data to a printer or computer.
• In SET mode, use this key to select the digit whose
value you want to change with the [▲] or [▼] key.
C [CF] key............................ Use this key to switch use of correction factor ON or
OFF, and to set the CF.
D [CALL] key ....................... Displays relevant setting from memory.
E Tripod socket
F Receptor-head release button ........ Pressing this button detaches the receptor head from
the main body.
G HOLD button
RUN position......................... When this button is popped out, the CHROMA ME-
TER takes continuous measurements.
HOLD position ...................... When you press the button in, the CHROMA METER
pauses measurement operation and saves the most
recent measurement result. When you press the but-
ton again, the button pops out and measurement
resumes.
H Power switch
I Battery cover
J Strap hook
K Measuring-unit selector .................. Allows selection of lx or fcd.
(Screen examples given in this manual are mainly for
lx.)

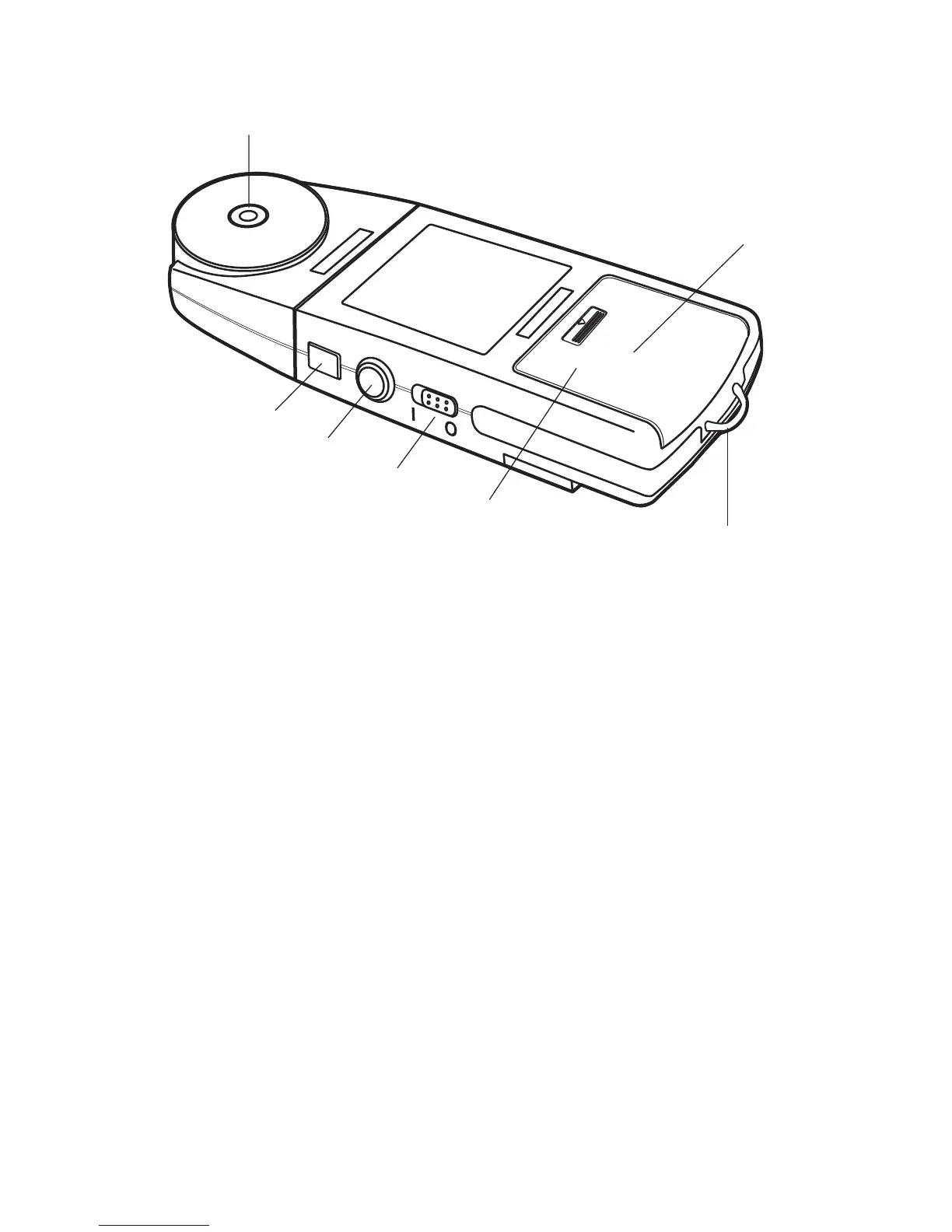

F
G
H
I
E
J
K
(Inside the battery chamber,
refer to page 8)
