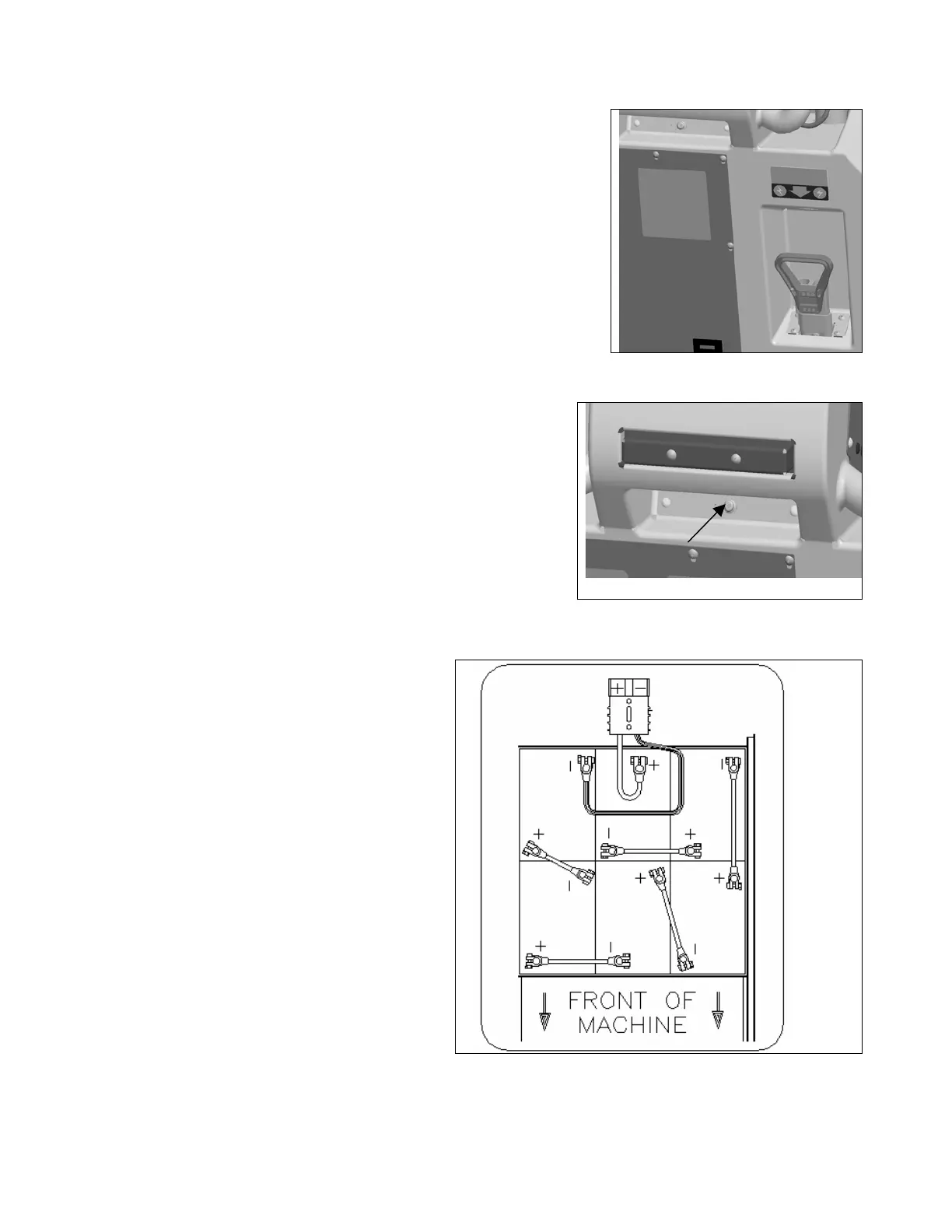

EMERGENCY DISCONNECT HANDLE
This handle is located beneath the control console off center
to the right. When the red emergency handle is pulled,
power will be turned off. Use this button in case of a
machine emergency. To reactivate, return the handle back
to its original position, correctly seated in the receptacle. All
operational settings are retained even when the power is
turned off and on.
CIRCUIT BREAKER
The circuit breaker is located under the emergency belly
bar. The 100-amp breaker protects the main system
circuit (controller). Each main component is
individually protected with an internal breaker built-in
the controller. (See fault code table) and can be reset by
turning the key switch off a few seconds and then on
again.
BATTERY COMPARTMENT
The battery compartment is located on
the rear of the machine under the
recovery
tank. Unlatching the two safety latches
on the side of the machine enables the
operator
to tilt the recovery tank and access the
batteries for servicing and maintenance
(make sure recovery tank has
been drained before tilting).
The battery compartment contains six
6-volt batteries connected in series.
Connect
the batteries according to the battery
connection diagram
(see diagram). The recommended
batteries are 275Ah (Minuteman P/N
956740).
