Minuteman ES 2832 - OFF-AISLE WAND (Optional)

16
OFF-AISLE WAND (optional)
The ES2832 is equipped with a ready-to-use built-in telescoping off-aisle wand system for use in hard to
reach areas. This integrated system eliminates attaching hose for use and detaching hoses for storage. By
turning the pump switch ON (located behind the right handle of the control console) the off-aisle wand is
ready to use in seconds. After use, simply flip the switch OFF and return the wand to it’s original
storage location. The wand is also equipped with the patented flip-flop tool that allows the operator to
switch from scrub brush to squeegee tool by just rotating the tool end.

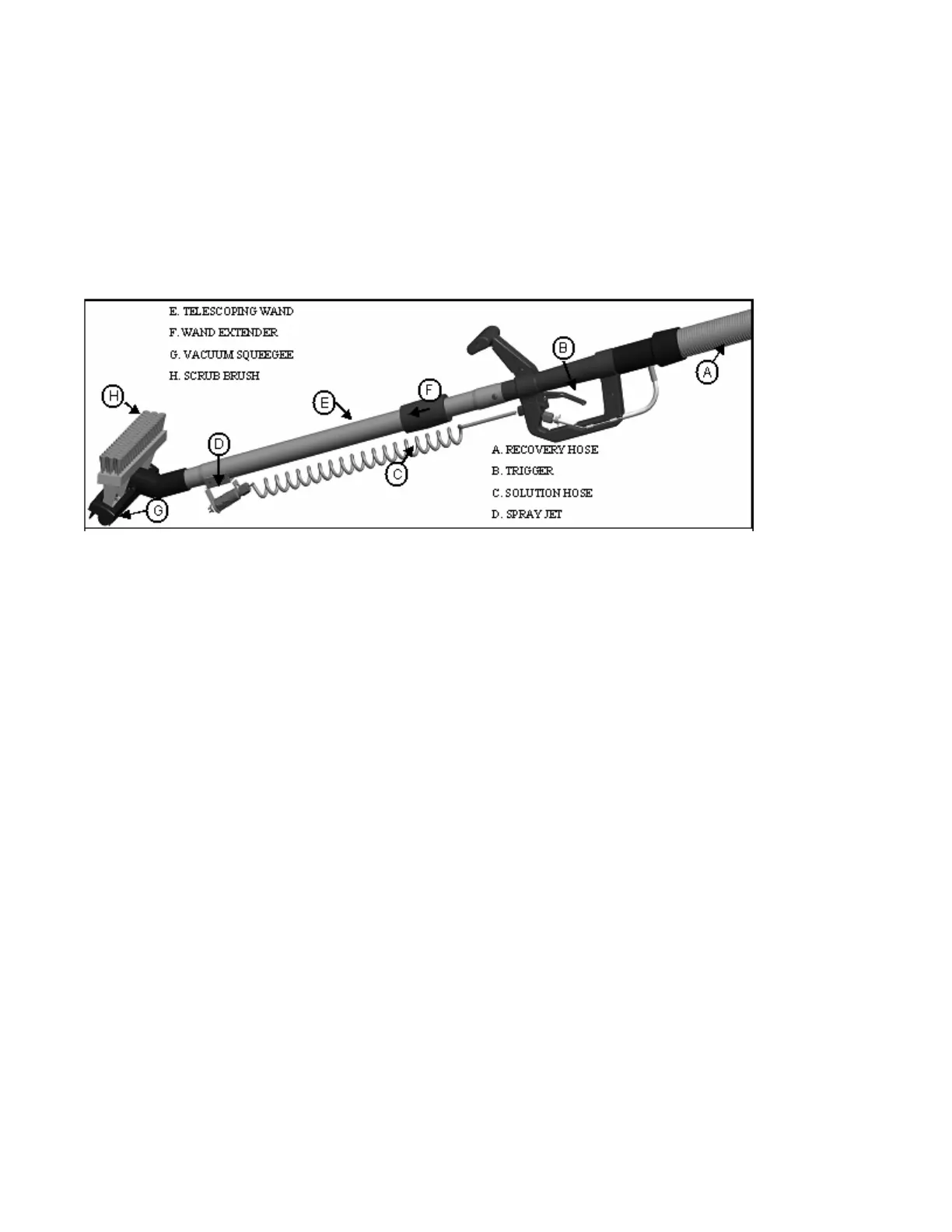

OFF-AISLE WAND TOOL
The off-aisle wand tool as described in the previous page is composed of the following items:
The recovery hose is connected to the end of the wand on one end and to the recovery tank hose on the
other end. This hose has swivel cuffs on both ends that allow the operator a good range of motion and
the solution hose to be inside the recovery hose.
The trigger controls the solution flow to the spray jet. Squeezing the trigger opens an internal valve to
dispense cleaning solution.
The coiled solution hose acts as a conduit from the trigger to the spray jet, and allows hose to be
extended along with the wand.
The spray jet dispenses the cleaning solution to soak soiled areas that are not accessible to the main
scrub deck.
The telescoping wand allows the length to be adjusted for operator comfort and better storage when not
in use.
Sliding the wand extender forward (as shown above) extends the wand length during use and retracts
the wand by pulling it back for the storage position.
The flip-flop tool gives the operator complete flexibility when changing from the scrub brush mode to
vacuum squeegee mode by simply rotating the end.
When the off-aisle wand switch is turned ON, six LEDs on the battery gauge will flash to indicate that
you are in the off-aisle tool mode. This switch turns on the pump to supply solution to the wand spray jet
and the vacuum motor to recovery the dirty water.
