14
REAR SQUEEGEE
The rear squeegee is the main element that acts as the conduit that transfers the spent solution
into the recovery tank. A daily maintenance check of this component is essential to have
optimum machine performance. The rear squeegee assembly is equipped with a universal front
blade that allows the operator the option to use a slotted and a non-slotted side for specific
applications. Each blade configuration has two usable edges. The rear blade however has four
usable edges.
The squeegee is pre-adjusted at the factory. Adjustments may be required to get optimum
performance for different floors and conditions.
Q
G
G
N
E
L
M
K
P
H
J
C
I
D
B
A
O

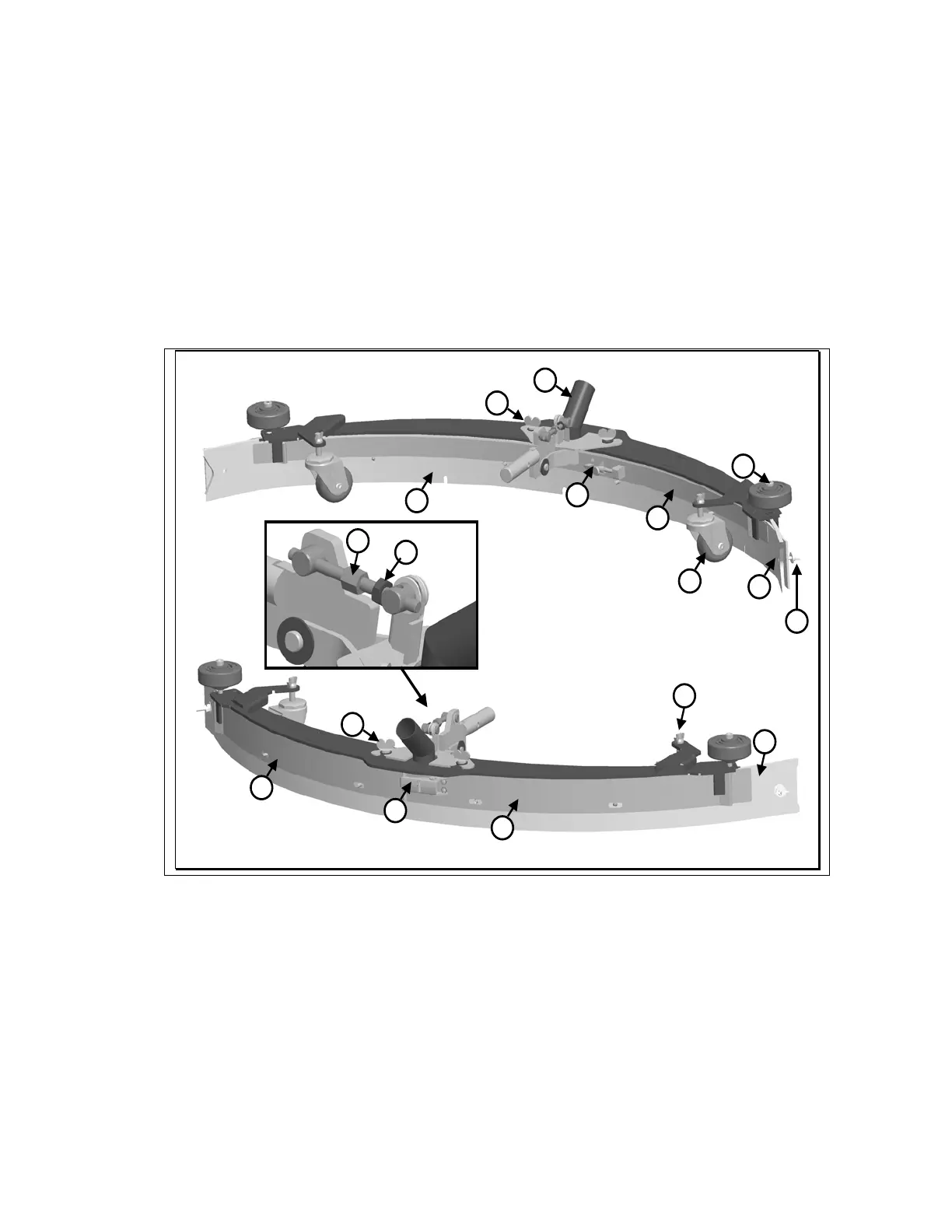

REAR SQUEEGEE COMPONENTS
A. Rear squeegee blade
B. Wing jam nut (2)
C. Swivel Caster (2)
D. Lock Nut
E. Turnbuckle
F. Front squeegee blade
G. Wing bolt (2)
H. Toggle clamp
I. Front strap (long)
J. Front strap (short)
K. Rear strap (latch side)
L. Rear strap (catch side)
M. Latch
N. Guide wheels (2)
O. Nylon wing bolt (2)
P. Nylon bolt (2)
Q. Recovery hose intake
