INSPECTION
Carefully unpack and inspect your ES Walk-Behind Scrubber for shipping damage. Follow
unpacking instructions on shipping pallet. Each unit has been tested and thoroughly inspected
before shipment. Any damage is the responsibility of the delivery carrier who should be
notified immediately.
ELECTRICAL
This machine is battery operated and designed to operate on 36 volts DC (6) 6-volt batteries.
BATTERIES
The recommended batteries are rated 275Ah (Minuteman P/N 956740).
We do not recommend mixing AMP hour capacities. Any alternate battery sets can be used if
they equal physical size and capacity. See page 13 for service and installation.
OPERATOR RESPONSIBILITY
Read this manual carefully before operating this machine.
The operator is responsible in taking care of the daily maintenance and check ups of the
machine to keep it in good working condition. The operator must inform the service mechanic
or supervisor when the scheduled maintenance intervals are required as stated in the
MAINTENANCE section of this manual.
Before starting familiarize yourself with the machine and its controls (see “Machine Overview,
Front”, “Machine Overview, Rear”, “Operator Compartment”, “Control Console”
diagrams).

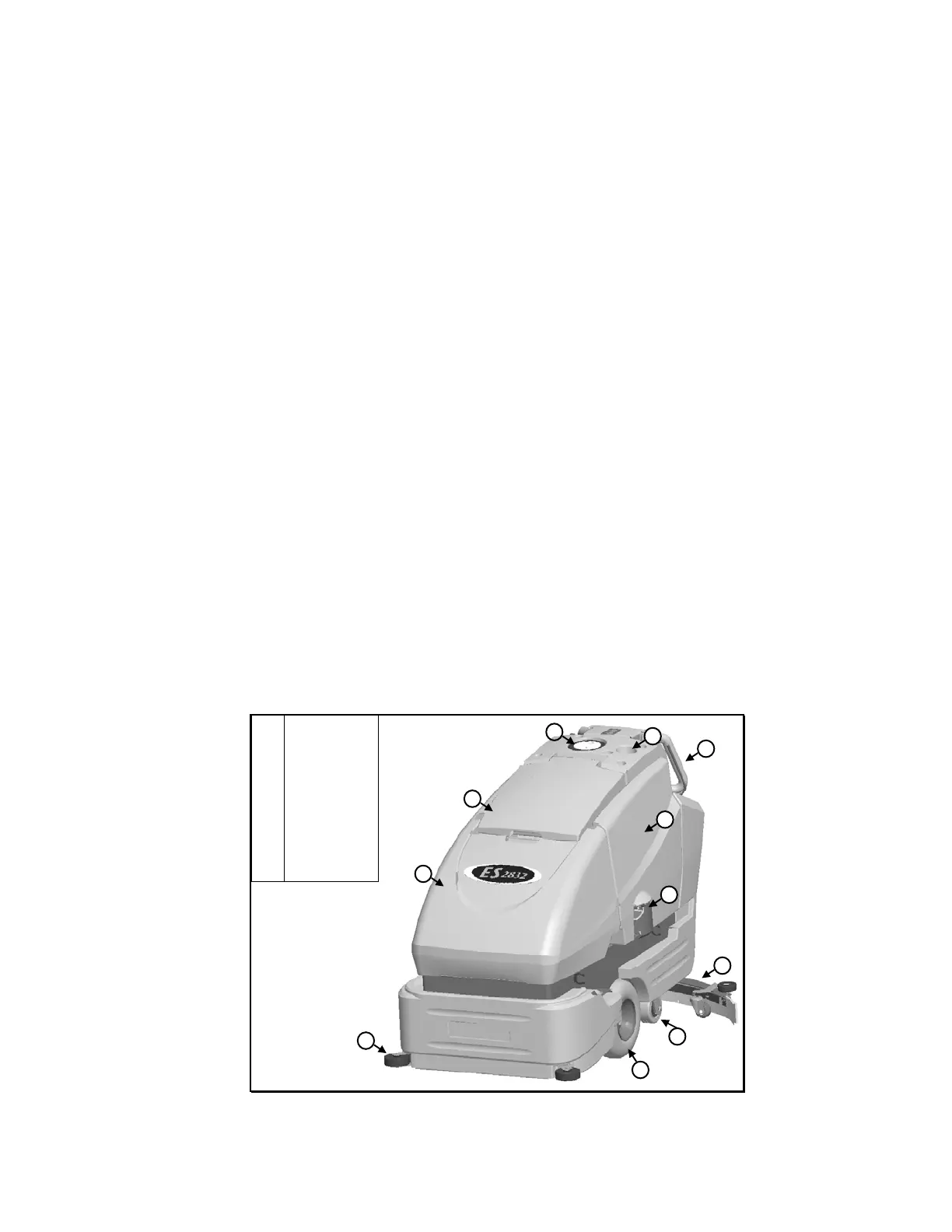

MACHINE COMPONENTS
FRONT
ROLLER BUMPERS
RECOVERY TANK
SOLUTION TANK
FRONT WHEEL
REAR CASTER
REAR SQUEEGEE
CONTROL CONSOLE
CUP HOLDER
VACUUM COVER
TANK LID
DUMP CAP COVER
A
B
C
D
E
F
G
H
I
J
K
A
C
J
I
G
F
E
D
B
H
K
