17
Mechanical and Chassis Installation
4.1.5 FX-2003-12XTDS Mechanical Installation
FX-2003-12XTDS is an expanded version of the FX-2003-12DS.

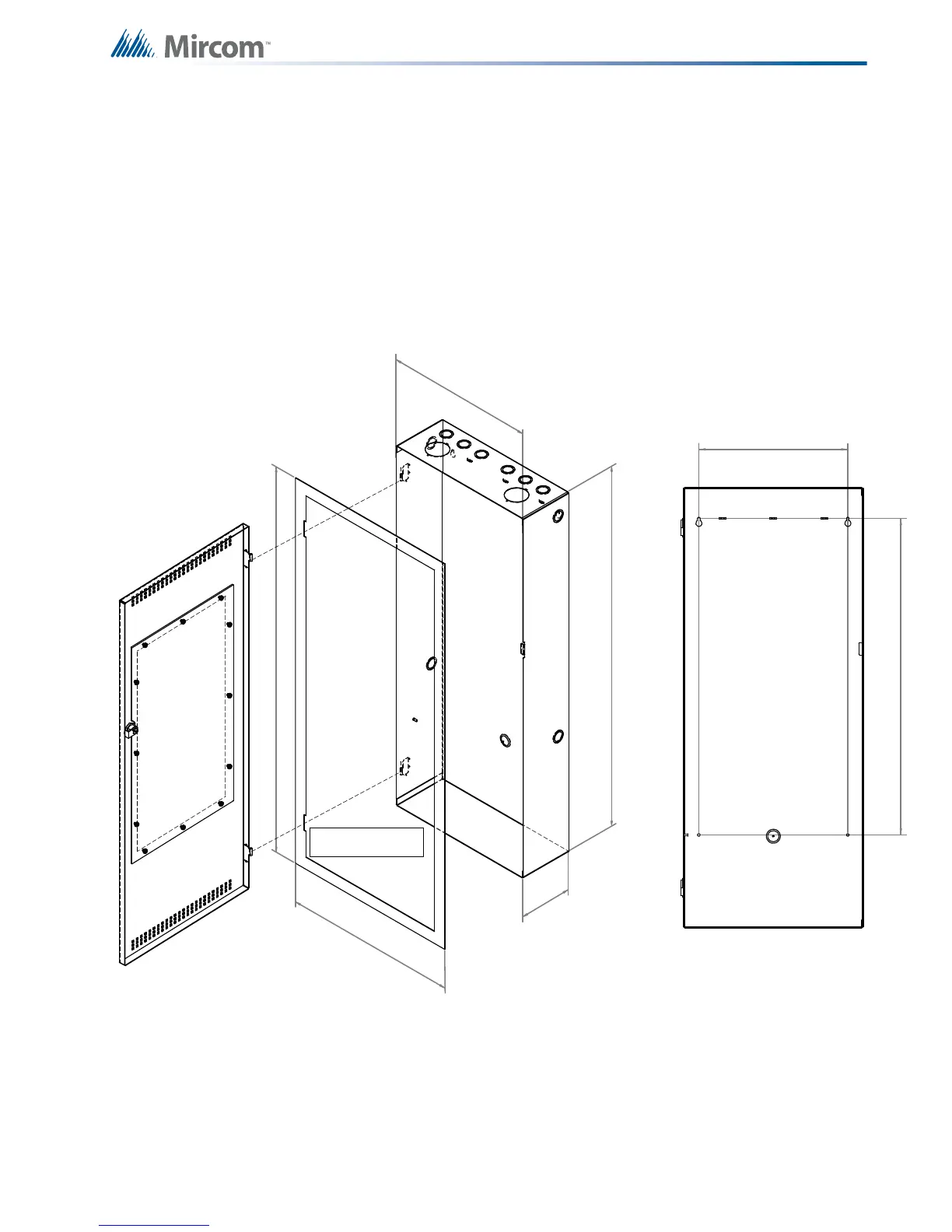

Figure 5 BBX-1024XT/R Backbox Enclosure with Trim Ring
Dimensions 14.76” wide by 35.8” long by 5.45”
16GA (0.059”) thick for backbox
14GA (0.075”) thick for door
Finish Painted except for hinges
14.500
35.500
5.25
17.000
38.010
12.000
25.500
Front Door
(Inside View)
FA-XT-TRB
Trim Ring for
Flush Mounting
Backbox
Adhere trim ring to wall
surface around backbox.
Backbox
Mounting Holes
To Next Page
