Mechanical and Chassis Installation
4.1.6 Surface and Flush Mounting Views of the BBX-1024XT/R

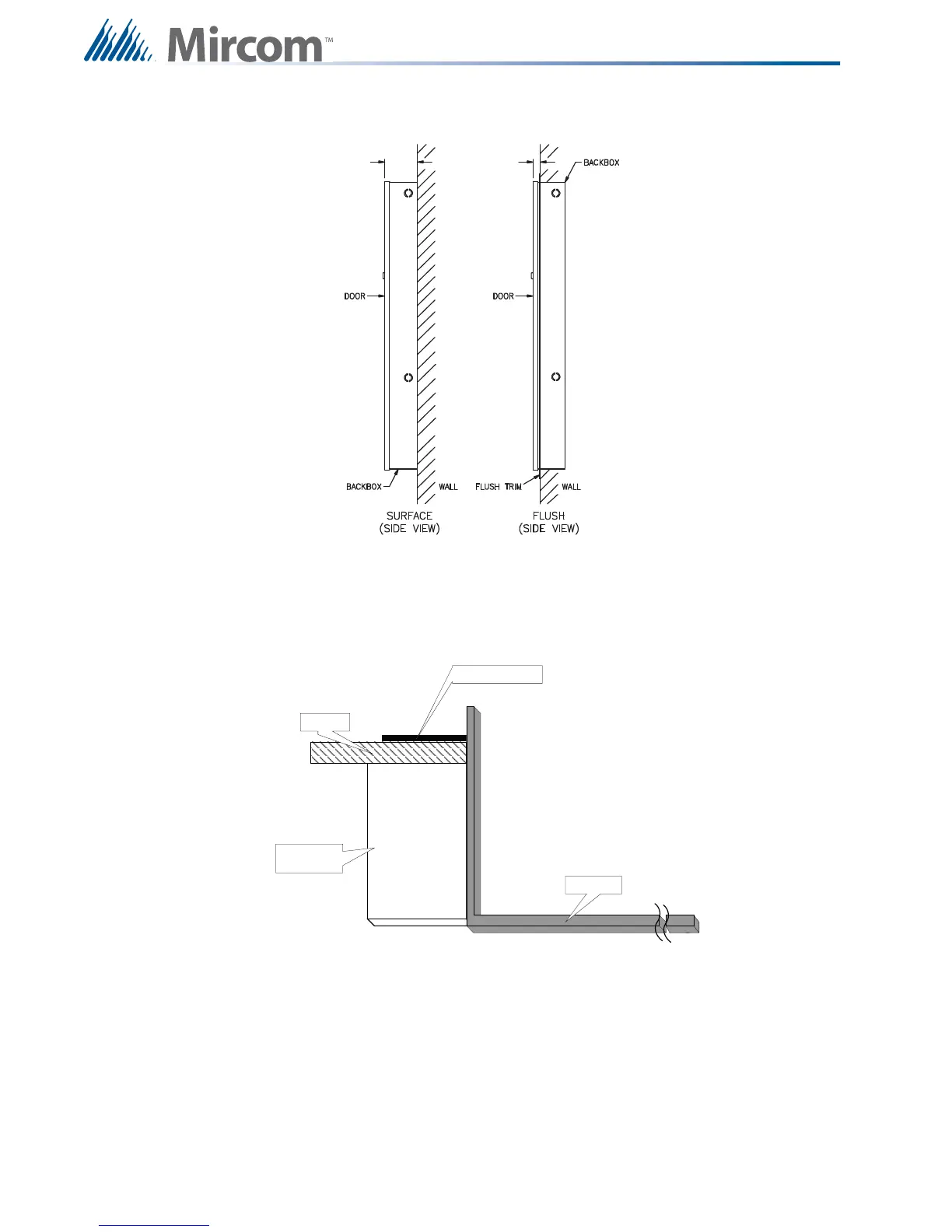

Figure 6 BBX-1024XT/R Surface and Flush Side Views
4.1.7 BBX-1024XT Flush Mounted Box with FA-XT-TRB Trim Ring
Figure 7 Cross section view of mounted BBX-1024XT/R enclosure
5.45” 0.7”
TRIM RING
WALL
WOOD OR
METAL STUD
BACKBOX
