7/4/2004 Page 20 of 22

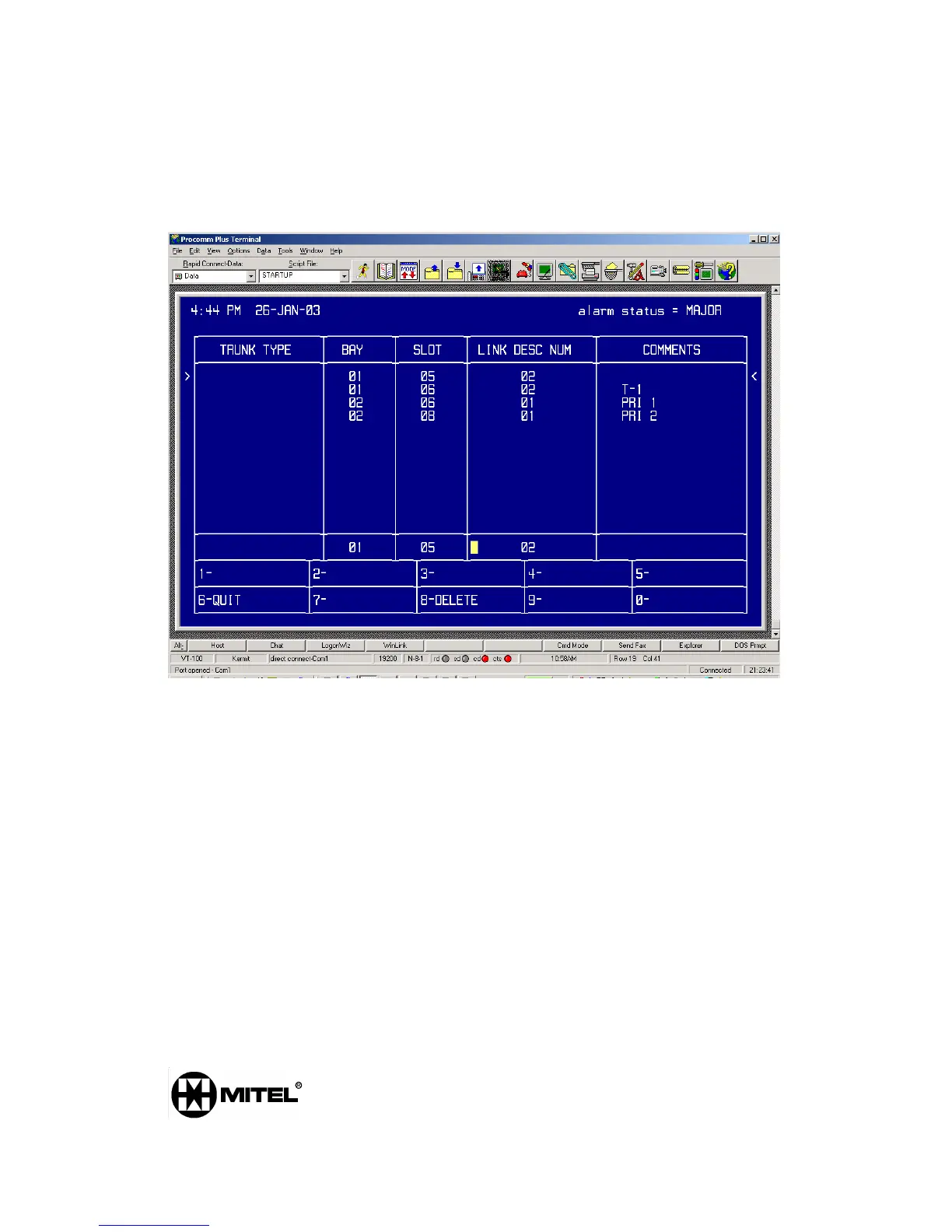

Assign the ISDN link descriptor to slot 6 and/or slot 8 on the PRI card bay, Form
43
Form 44, Network Sync - To be determined by qualified Technician
SX200 with T1/D4
• Attach VCon IGC server to SX200 with cross over cable.
• Program trunks for T1/D4. All values are default.
• Program ARS so that a single four digit number accesses the IGC system
o See SX200 Technician’s Handbook for more information
o Send simulated ANI down trunk using Digit Modification Table, form
22 as shown below with digit mod number 3. The Dialogic card in
the IGC expects ANI, and there will be a 10 – 15s delay accessing
the server unless such a string is sent down the trunk.
