6.1 RJ21 CABLE
6.1.1 RJ21 CABLE RECOMMENDATON
The RJ21 cable reference to use with the Mitel AG4100 gateways is 25 Pair Telco Cable with
180 Degree, 50-Pin RJ21, Male, Bail Lock, Amphenol Connector.
6.1.2 RJ21 WIRE SEQUENCE
The recommended RJ21 cable has 25 pairs of wires but the Analog Gateways only supports 24

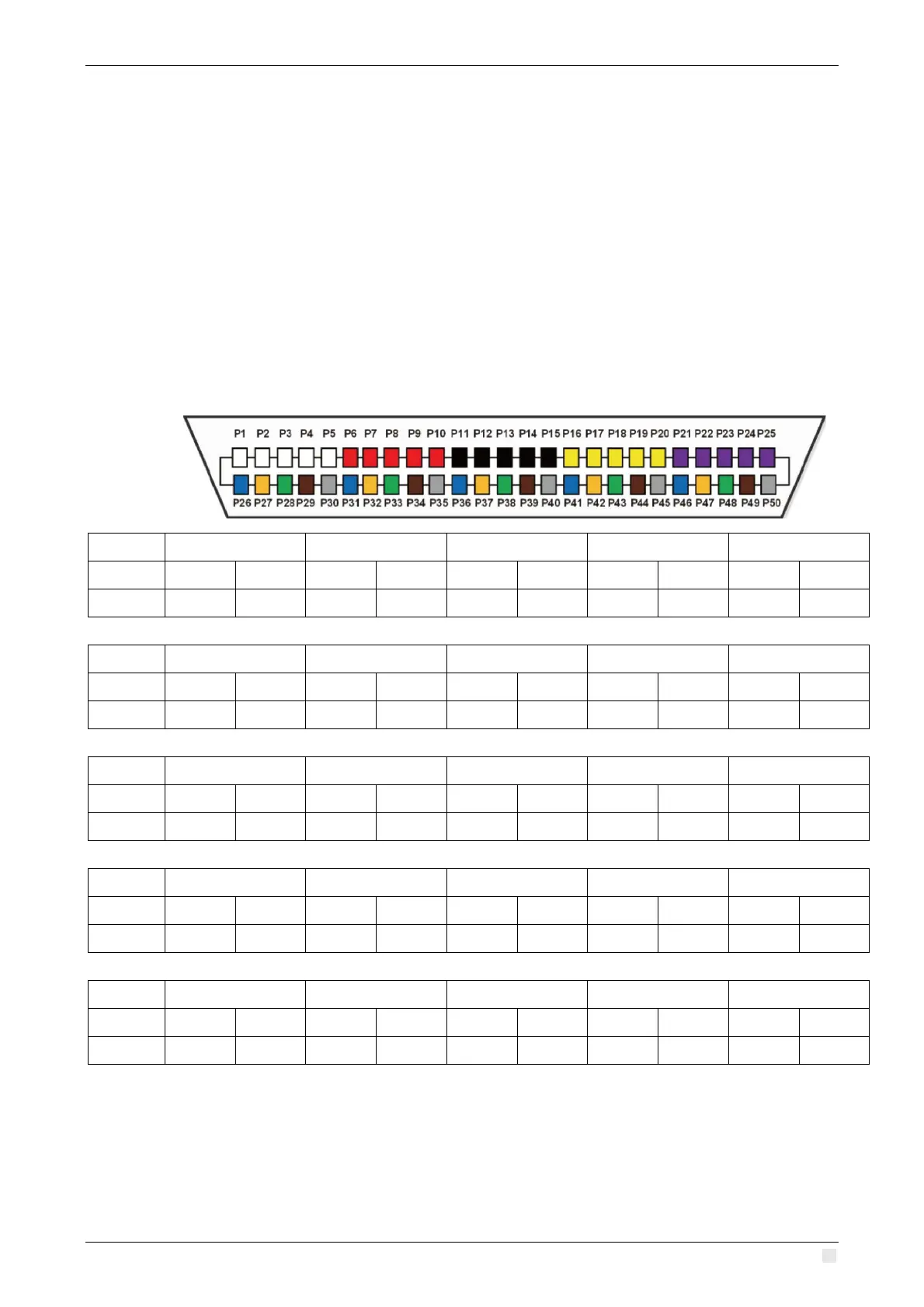

pairs, from Pair 0 to Pair 23. The figure below shows the RJ21 wire sequence required:
Pair No.
0
1
2
3
4
Color
White
Blue
White
Orange
White
Green
White
Brown
White
Slate
PIN No.
P1
P26
P2
P27
P3
P28
P4
P29
P5
P30
Pair No.
5
6
7
8
9
Color
Red
Blue
Red
Orange
Red
Green
Red
Brown
Red
Slate
PIN No.
P6
P31
P7
P32
P8
P33
P9
P34
P10
P35
Pair No.
10
11
12
13
14
Color
Black
Blue
Black
Orange
Black
Green
Black
Brown
Black
Slate
PIN No.
P11
P36
P12
P37
P13
P38
P14
P39
P15
P40
Pair No.
15
16
17
18
19
Color
Yellow
Blue
Yellow
Orange
Yellow
Green
Yellow
Brown
Yellow
Slate
PIN No.
P16
P41
P17
P42
P18
P43
P19
P44
P20
P45
Pair No.
20
21
22
23
24
Color
Violet
Blue
Violet
Orange
Violet
Green
Violet
Brown
Violet
Slate
PIN No.
P21
P46
P22
P47
P23
P48
P24
P49
P25
P50
