Mitel AG4100 Series - Mitel Ag4172 Analog Gateway; Mitel Ag4172 Features; Mitel Ag4172 Dimensions and Weight; Mitel Ag4172 Limitations

MITEL AG4100 ANALOG GATEWAY - QUICK INSTALLATION GUIDE
8 04/2024
2.2 MITEL AG4172 ANALOG GATEWAY
2.2.1 MITEL AG4172 FEATURES
The Mitel AG4172 is an Analog Gateway with:
• 72 FXS interfaces, accessible from the rear panel with 3 RJ21 connectors.
• 2 LAN ports, 1 AUX port, 1 Management port and 1 Console port (front panel)

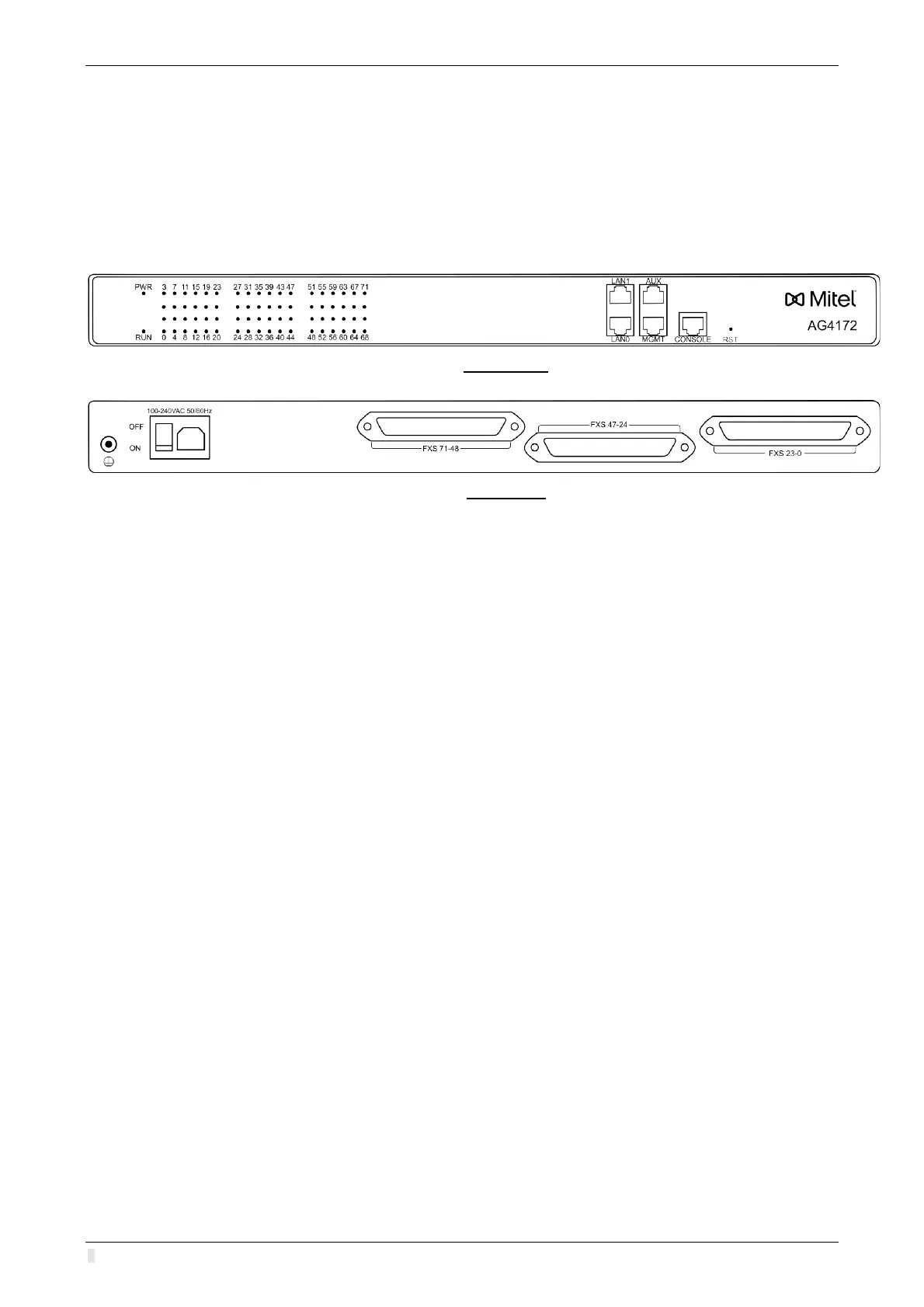

Front panel
Rear panel
2.2.2 MITEL AG4172 DIMENSIONS AND WEIGHT
Dimensions
• Width: 44 cm (17,3”)
• Depth: 32,8 cm (13”)
• Height: 4,4 cm (1 ¾”)
Weight
• 4,25 kg (9,4lbs)
2.2.3 MITEL AG4172 LIMITATIONS
• Up to 36 lines out of the 72 lines supported by the Mitel AG4172 can ring or light MWI lights
at the same time.
