Installation Guide
Base Station
5
2.2.1 IPBS432 WITH INTERNAL ANTENNA

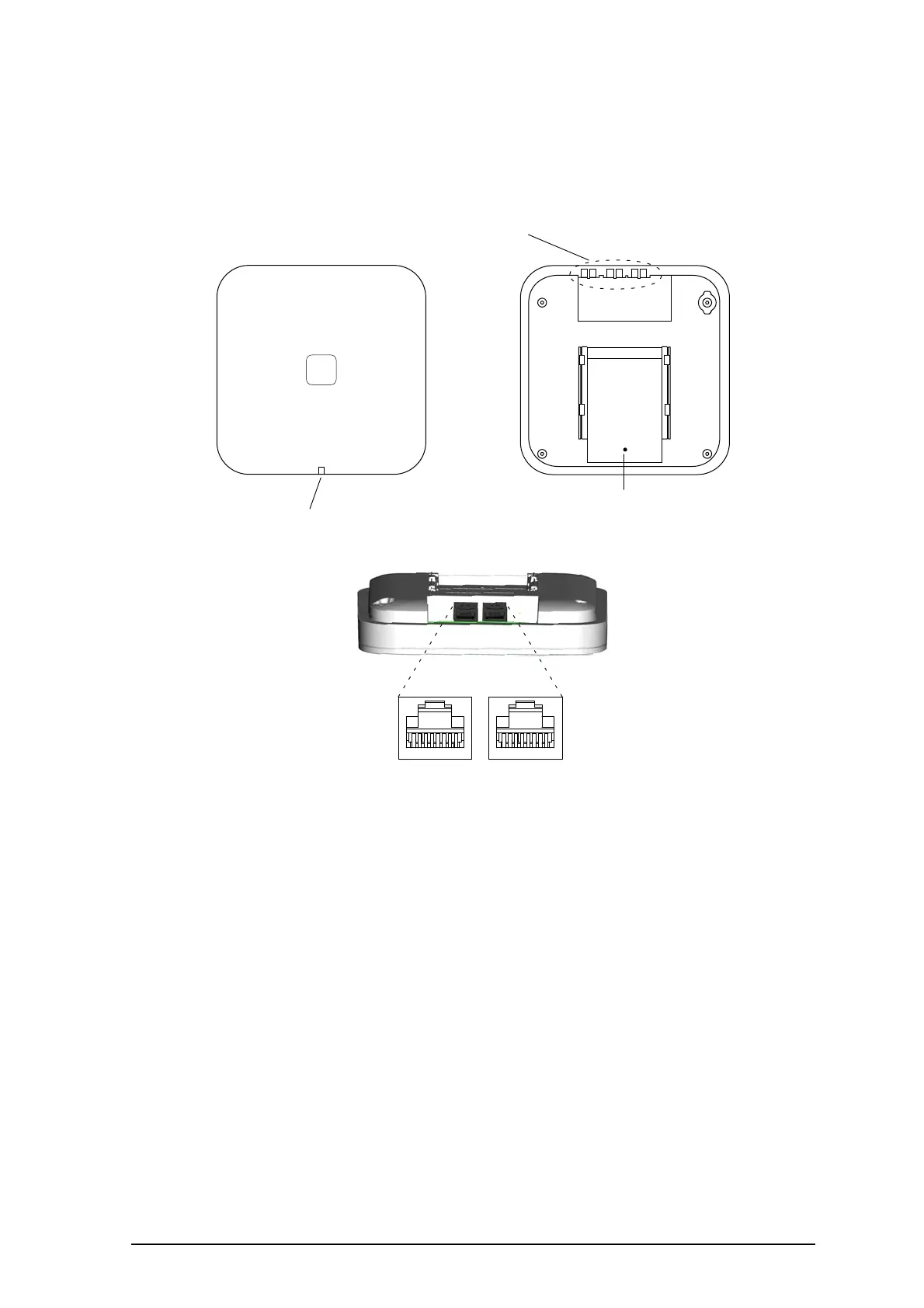

Figure 2. IPBS2 Overview
Contents of the Box
The box in which the IPBS432 is packed contains:
• An IPBS4x2 with integrated antennas
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The IPBS4x2 can be powered using the following methods:
• Power over Ethernet, IEEE 802.3af
• A local AC-adapter
NOTE: For more information about power distribution, see 3.3 Power the Base Station
on page 22.
Front view
LED
LAN
(RJ45)
Power Supply
(RJ45)
Back view while lying down
Used for cable ties
to provide strain
relief for cables
Back view
Reset
