Mitsubishi AJ65BT-R2N-U-HW User Manual

15
(4) RS-232 transmission setting switches

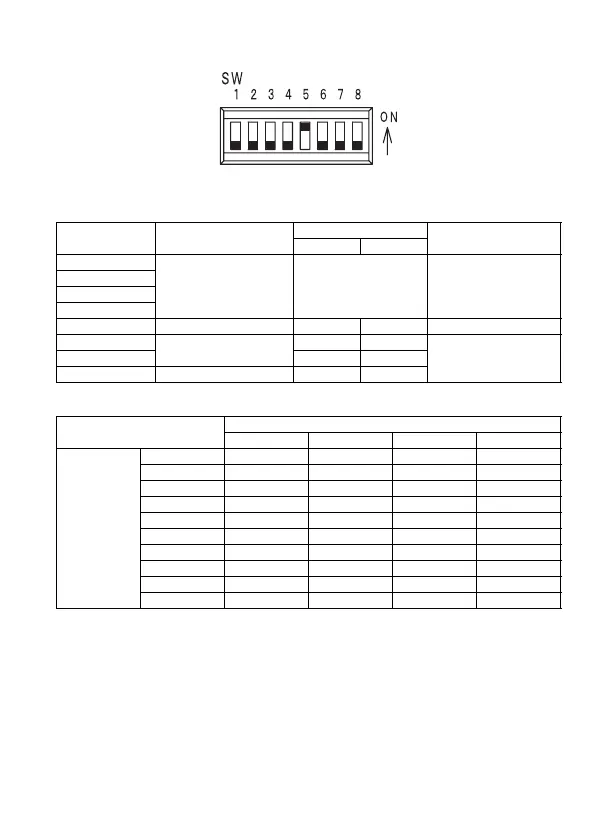

Figure 4.5 RS-232 transmission setting switches
Table 4.5 RS-232 transmission setting switches
Switch No. Setting item
Switch status
Factory default setting
ON OFF
SW1
Transmission speed
For details, refer to
Table 4.6.
OFF
SW2
SW3
SW4
SW5 Data bit length 8 7 ON
SW6
Parity bit
Present None
OFFSW7 Even Odd
SW8 Stop bit length 2 1
Table 4.6 RS-232 transmission setting switches (SW1 to SW4)
Setting item
Switch No.
SW1 SW2 SW3 SW4
Transmission
speed
300bps OFF OFF OFF OFF
600bps ON OFF OFF OFF
1200bps OFF ON OFF OFF
2400bps ON ON OFF OFF
4800bps OFF OFF ON OFF
9600bps ON OFF ON OFF
19200bps OFF ON ON OFF
38400bps ON ON ON OFF
57600bps OFF OFF OFF ON
115200bps ON OFF OFF ON
