2 Simple Application Controllers
Installation 3
ENG-14
3. Installation
3.1 Installation Mounting Notes
The α2 Series’ safe design means the user can install it almost anywhere but please take
the following points into consideration.
• Do not install in areas with excessive or conductive dust, corrosive or flammable gas,
moisture or rain, excessive heat, regular impact shocks or excessive vibration. Do not
place in water or let water leak onto the controller.
• Do not allow debris to fall inside the unit during installation.
• Keep as far as possible from high-voltage cables and power equipment.
• The
α2 Series Controller must be installed in a distribution box or a control cabinet.

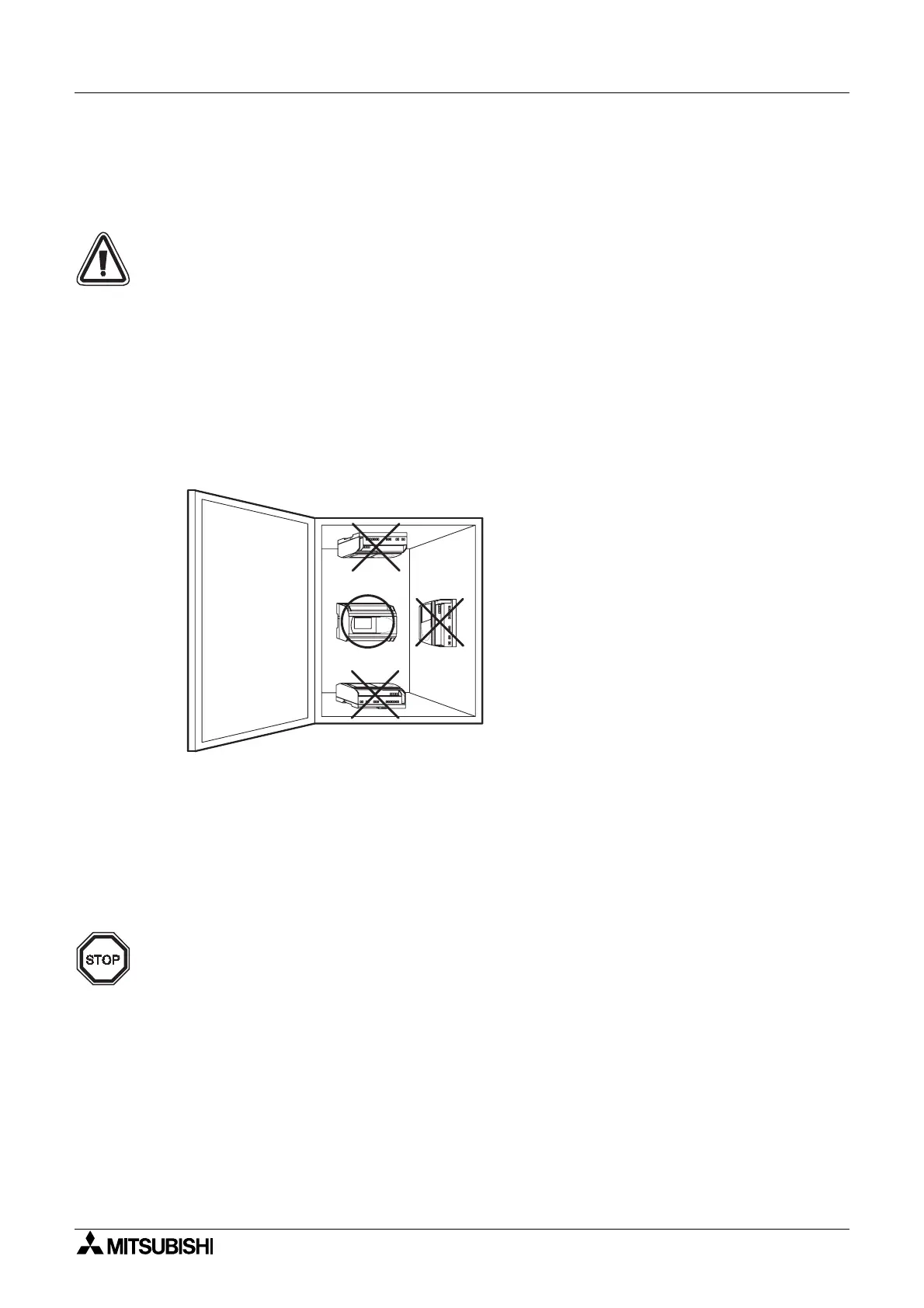

Figure 3.1: Mounting Arrengement.
• Use size M4 screws when mounting by screw holes.
• The connectors must be covered to prevent injury from contact with “live” wires.
• Leave a minimum of 10mm of space for ventilation between the top and bottom edges of
the
α2 Series Controller and the enclosure walls.
• Do not disassemble the
α2 Series controller.
Note;
• Refer to chapter 6 when installing or removing the AL2-EEPROM-2.
• Refer to chapter 7 when installing or removing the AL-232CAB.
• Refer to chapter 8 when installing or removing the AL2-GSM-CAB.
• Refer to chapter 9 when installing or removing the AL2-ASI-BD.
• Refer to chapter 11 when installing or removing the AL2-2DA.
• Refer to chapter 12 when installing or removing the AL2-2PT-ADP.
• Refer to chapter 13 when installing or removing the AL2-2TC-ADP.
