Mitsubishi alpha 2 User Manual

α 2 Simple Application Controllers
AL2-2PT-ADP 12
ENG-61
ENG
12.1 Introduction
The AL2-2PT-ADP should be used convert PT100 Temperature input (-50 - 200°C) to a voltage
equivalent (0 - 10V) for direct use in the main unit.

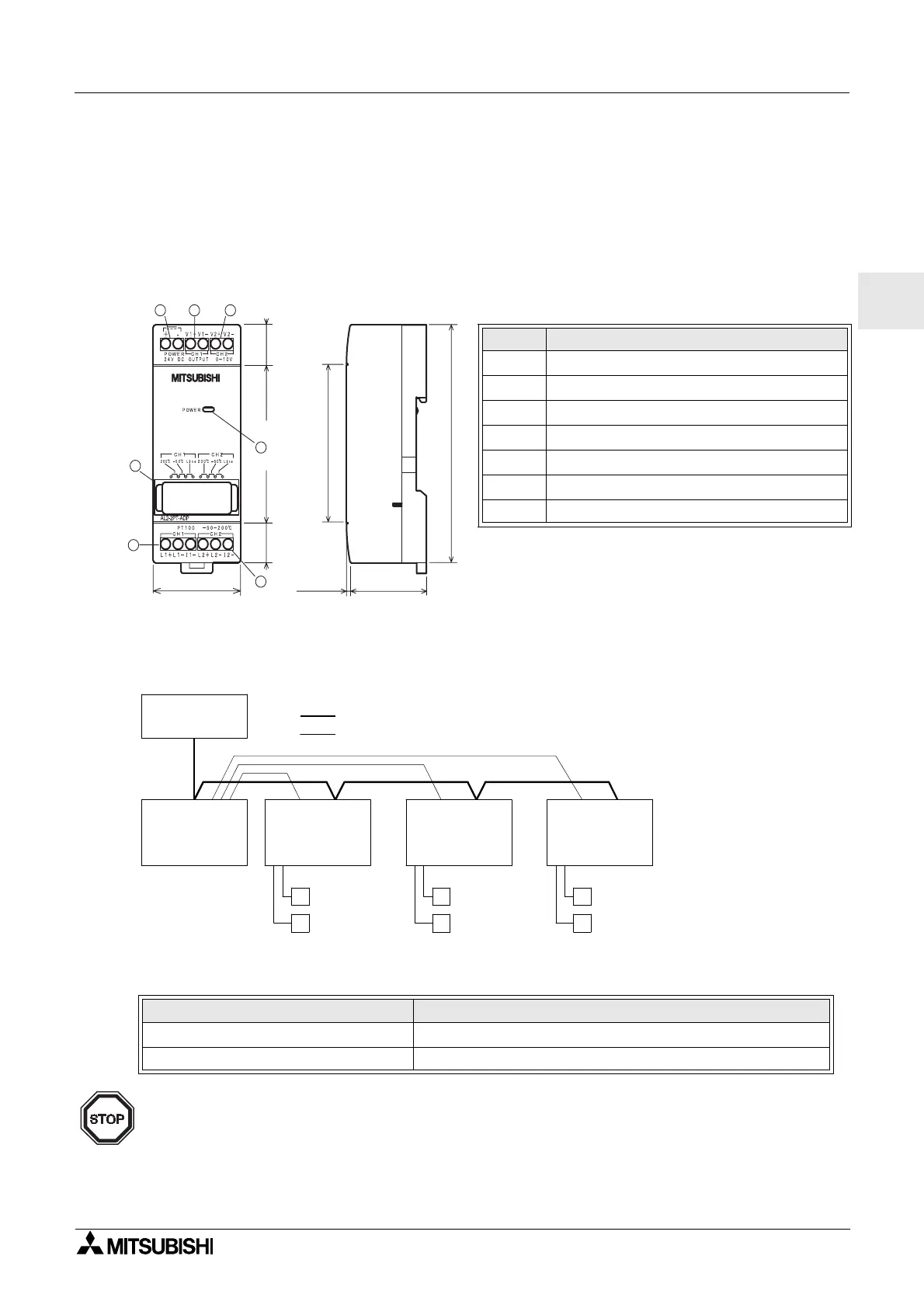

12.1.1 External Dimensions
Figure 12.1:External Dimensions Unit:mm (inches)
12.2 System Configuration
Figure 12.2:
For general specifications please refer to Chapter 2.
Note
The AL2-2PT-ADP cannot be used with the original α Series Controllers.
Table 12.1:
Item Description
1 +24V DC Power Supply
2 Channel 1 Voltage Output Terminal
3 Channel 2 Voltage Output Terminal
4 Channel 1 PT100 Sensor Input Terminal
5 Channel 2 PT100 Sensor Input Terminal
6 Jumper pins for adjustment
7 Power LED
Table 12.2: Applicable Version
PLC Type Applicable version
α2 Series (DC Version only) V2.00 or later
VLS Software V2.30 or later
35.5(1.40")
15(0.60")
15(0.60")
60(2.37")
90(3.55")
31.0(1.23")
1.5(0.06")
7
6
4
5
1 2 3
Power Supply
24V DC
AL2-10MR-D
AL2-14MR-D
AL2-24MR-D
AL2-2PT-ADP AL2-2PT-ADP AL2-2PT-ADP
DC power line
Analog signal
PT100
Sensor
PT100
Sensor
PT100
Sensor
