4.6.2 Relay Output Wiring Diagram AL2-4EYR (AC and/or DC)

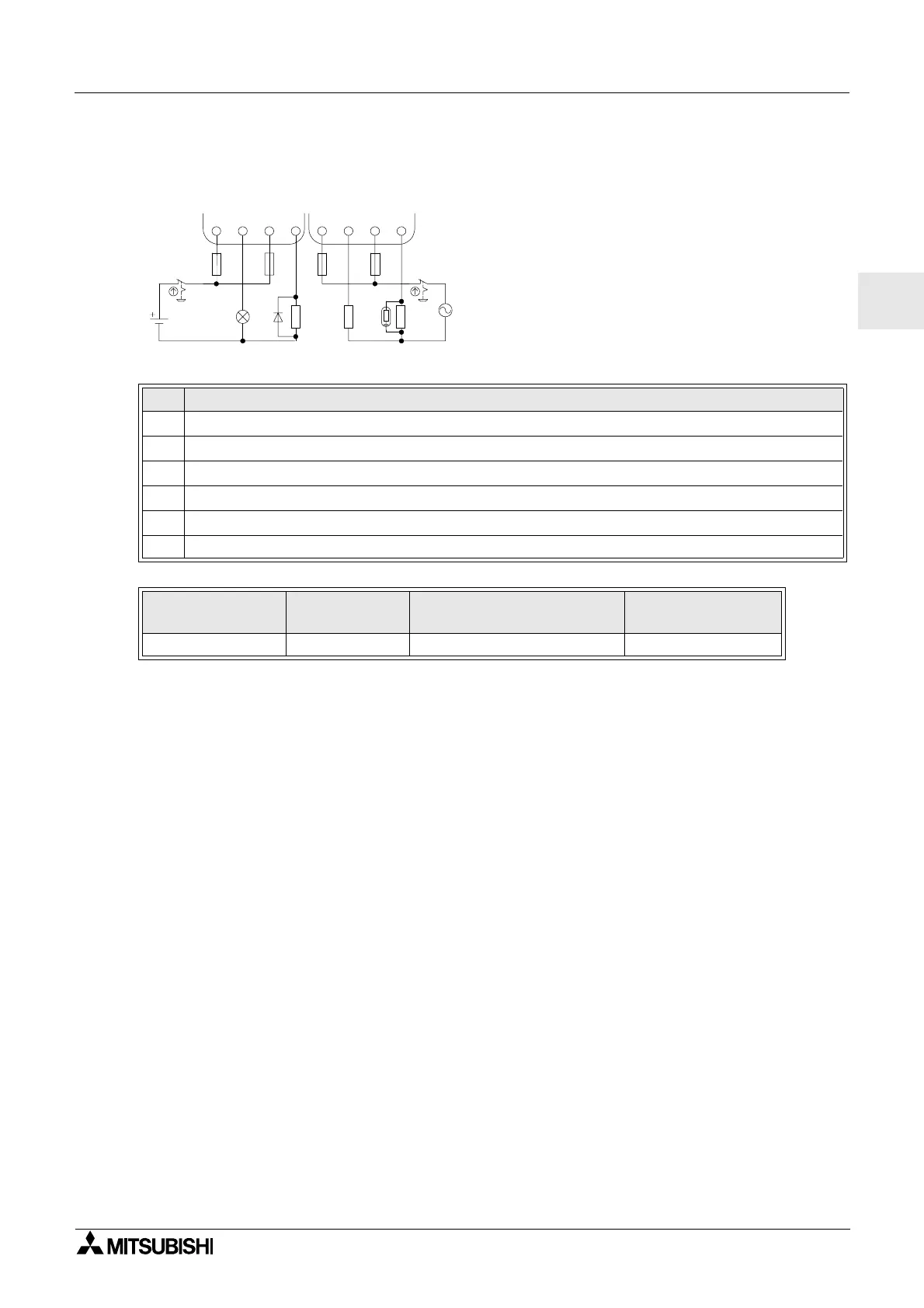

Figure 4.10: Relay Output Wiring Diagram AL2-4EYR (AC and/or DC)
Table 4.11: Relay Output Wiring AL2-4EYR (AC and/or DC)
Ref. Item Description
1 DC power supply
2 Emergency stop
3 Circuit protection device (Fuse: ≤ 3A)
4 Mutually exclusive outputs
5 Output devices
6 AC power supply
Table 4.12: Relay Output Circuit Protection Table
Model
Number of
Output
Max. Resistive Load
Circuit Protection
(Fuse)
AL2-4EYR EO1-EO4 2A/common ≤ 3A / Circuit
EO1 EO2 EO3 EO4











