Engine compartment

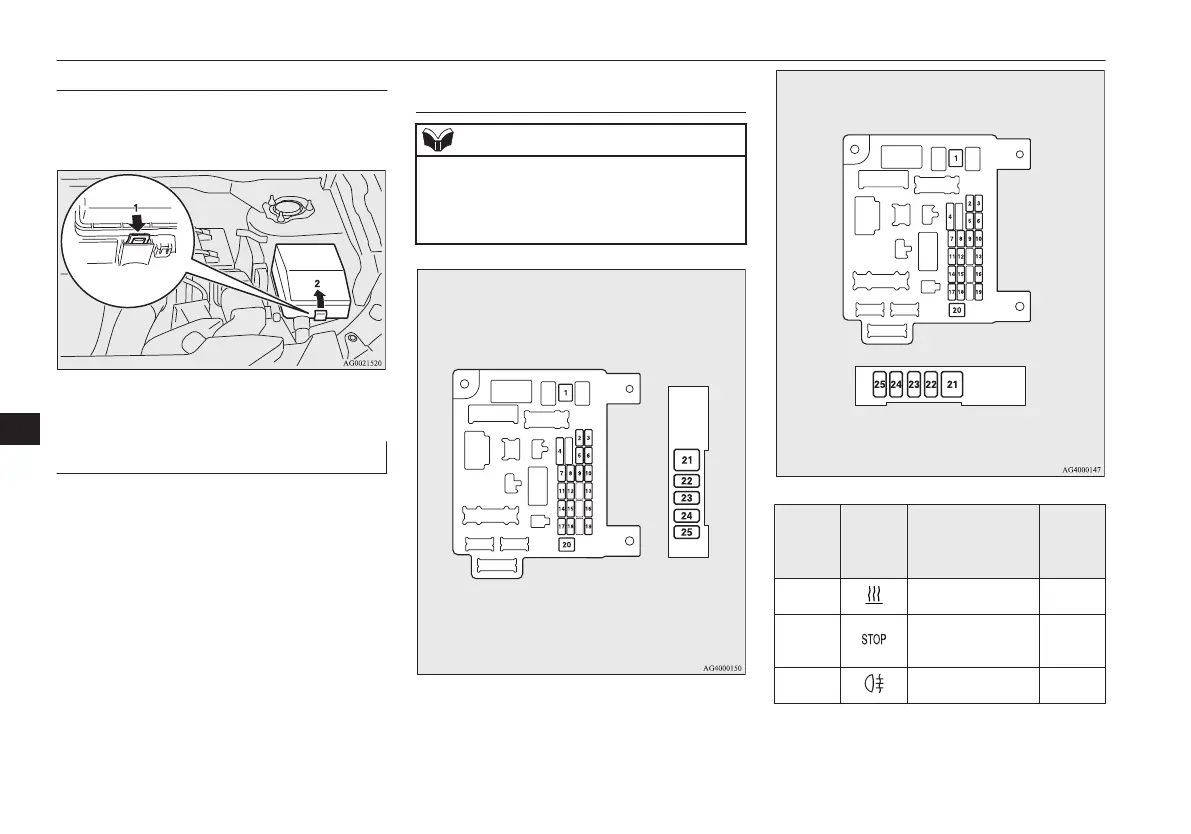

In the engine compartment, the fuse block is
located as shown in the illustration.
1- Push the knob.
2- Remove the cover.
Fuse load capacity
E01007701870
The fuse capacity and the names of electrical
systems protected by the fuses are indicated
on the inside of the fuse lid (LHD vehicles),
the inside of the glove box (RHD vehicles)
and inside of the fuse block cover (inside of
the engine compartment).
Passenger compartment fuse lo-
cation table
NOTE
l
Spare fuses are provided on the lid of the
fuse block in the engine compartment. Al-
ways use a fuse of the same capacity for re-
placement.
Passenger compartment fuse location (LHD)
Main fuse block Sub fuse block
Passenger compartment fuse location (RHD)
Sub fuse block
Main fuse block
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
1 Heater
30 A
*
2
Stop lamps
(Brake lamps)
15 A
3 Rear fog lamp 10 A
*
: Fusible link
Fuses
