Mitsubishi ECLIPSE CROSS 2017

Instruments and controls
E08500102036
2
3
4
5
6
7
8
9
10
11
12
13
15
14
16
17
18
20
19
21
22
1
LHD

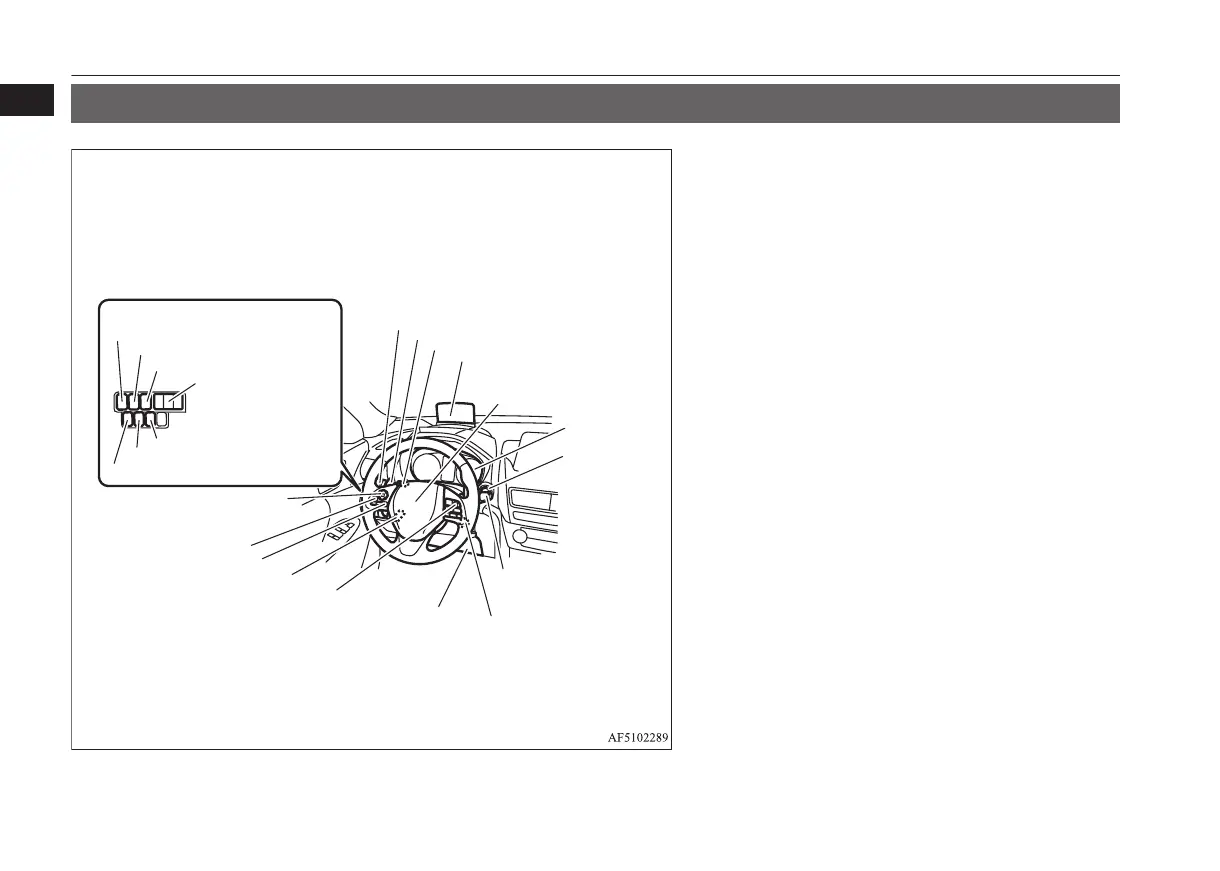

1. Combination headlamps and dipper switch p. 5-55
Automatic High-Beam (AHB) switch p. 5-58
Turn-signal lever p. 5-64
Front fog lamp switch* p. 5-65
Rear fog lamp switch p. 5-66
2. Shift paddles* p. 6-34
3. Multi-information display switches p. 5-04
4. Head Up Display (HUD)* p. 5-50
5. Supplemental restraint system (SRS) - airbag (for driver’s seat)
p. 4-25, 4-29
Horn switch p. 5-74
6. Instruments p. 5-02
7. Engine switch* p. 6-14
8. Windscreen wiper and washer switch p. 5-66
Rear window wiper and washer switch p. 5-70
Headlamp washer switch* p. 5-71
9. Ignition switch* p. 6-13
10. Supplemental restraint system (SRS) - front knee airbag (for driv-
er’s seat) p. 4-25, 4-30
11. Cruise control switches* p. 6-55
12. Steering wheel height and reach adjustment lever p. 6-09
13. Bluetooth® 2.0 interface* p. 7-57
14. Camera switch* p. 6-120
15. Steering wheel audio remote control switches* p. 7-35 [For DIS-
PLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi-Communication System (MMCS), refer to
the separate owner’s manual.]
16. Headlamp levelling switch* p. 5-62
17. Auto Stop & Go (AS&G) OFF switch p. 6-24
18. Sonar switch* p. 6-111
19. Head Up Display (HUD) switches* p. 5-50
20. Active stability control (ASC) OFF switch p. 6-54
21. Lane Departure Warning (LDW) switch p. 6-101
22. Forward Collision Mitigation system (FCM) and Ultrasonic mis-
acceleration Mitigation System (UMS)* ON/OFF switch p. 6-83
