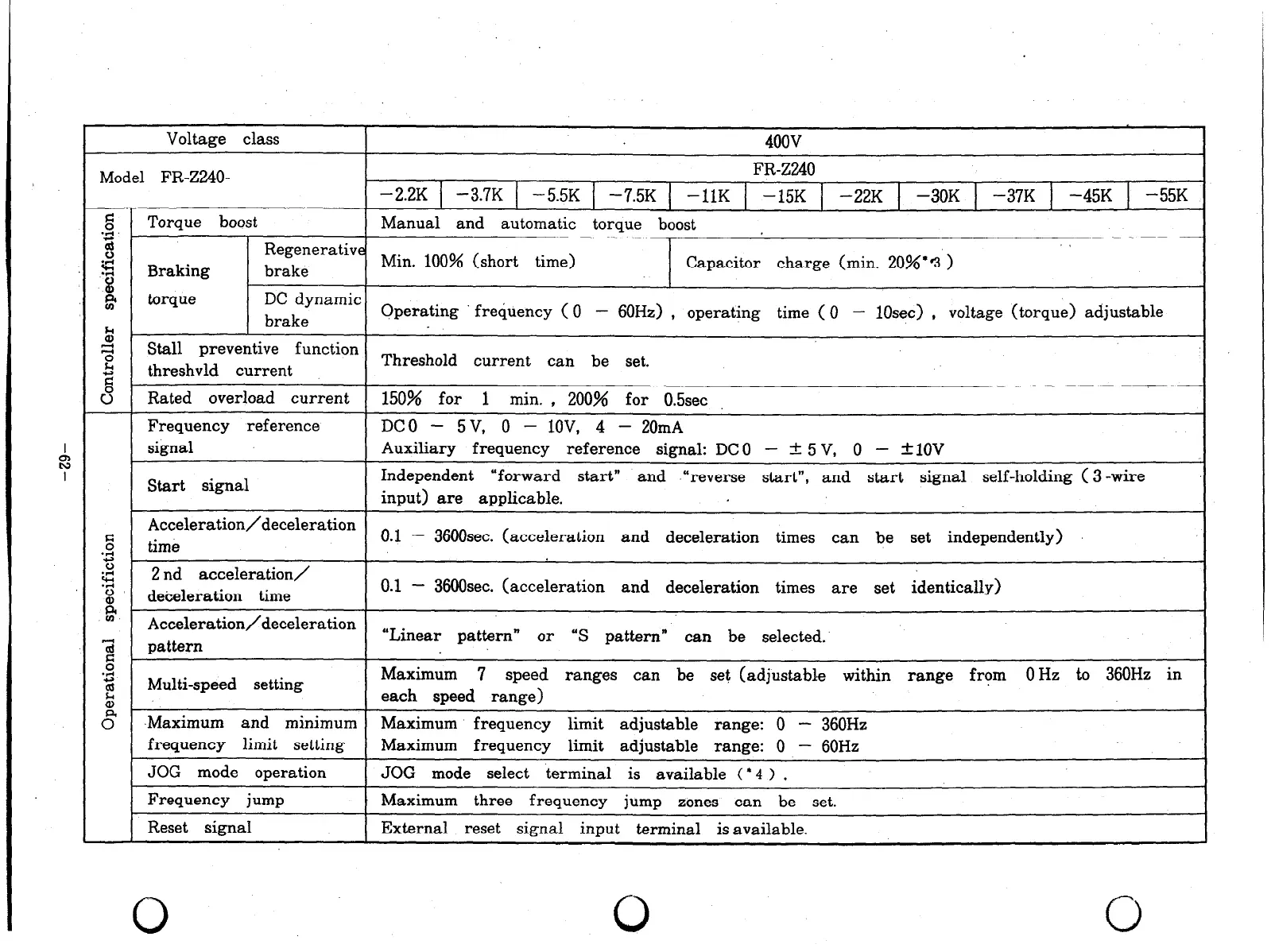

Voltage class
400v
Model FR-Z240-
FR-Z240
-22K 1 -3.7K 1 -5.5K 1
-7.5K -1lK -15K
-22K
1 -3OK 1 -37K 1 -45K 1 -55K
g
Torque boost
‘I:
Manual and automatic torque boost
,
d
Regenerative
c
.r(
8
Braking brake
Min. 100% (short time)
Capacitor charge (min. 20%*‘3 )
iit
torque DC dynamic
!ii
brake
Operating frequency ( 0 - 60Hz) , operating time ( 0 - 1Osec) , voltage (torque) adjustable
z
e
Stall preventive function
threshvld current
Threshold current can be set.
2
u”
Rated overload current 150% for 1 min. , 200% for 0.5sec
Frequency reference DC0 -
5 V, 0 - l.OV, 4 - 20mA
signal Auxiliary frequency reference signal: DC 0 - & 5 V, 0 - &lOV
Start signal
Independent “forward start” and .Yeverse start”,
and start signal self-holding ( 3 -wire
input) are applicable.
Acceleration/deceleration
do
o I
. - 36OOsec. (acceleration and deceleration times can be set independently)
3
time
0
5
2 nd acceleration/
8 deceleration time
0.1 - 36OOsec. (acceleration and deceleration times are set identically)
ii?
Acceleration/deceleration
74
od
pattern
“Linear pattern” or “S pattern” can be selected.
‘S
2
Multi-speed setting
Maximum 7 speed ranges can
be set (adjustable within range from 0 Hz to 360Hz in
Q)
each speed range)
8
.Maximum and minimum
Maximum frequency limit adjustable range: 0 - 360Hz
frequency limit setting
Maximum frequency limit adjustable range: 0 - 60Hz
JOG mode operation
JOG mode select terminal is available (
l
4 > ,
Frequency jump Maximum three frequency jump zones can be set.
Reset signal External reset signal input terminal is available.
0
0
0
