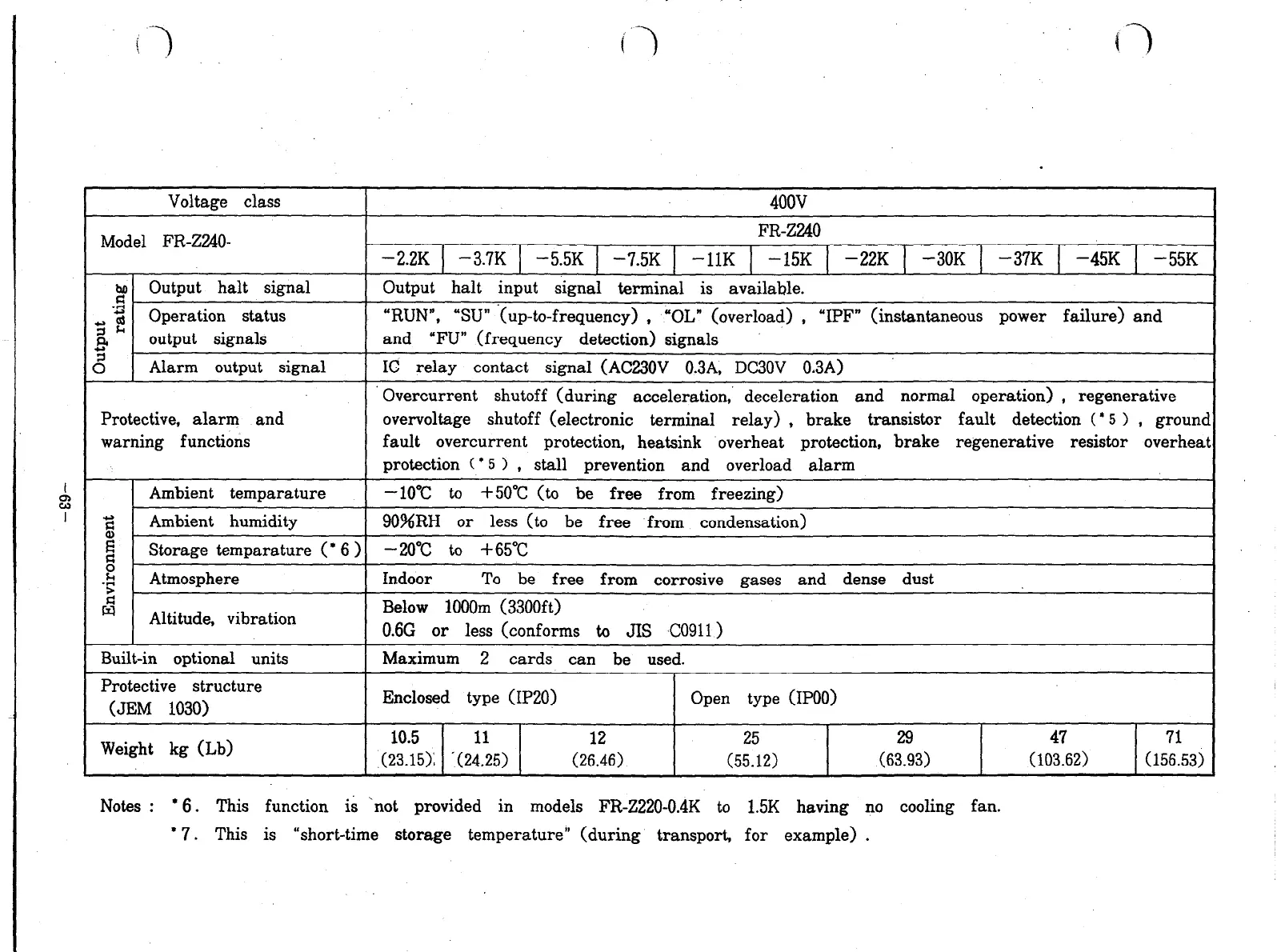

Voltage class 4oov
Model FR-Z240-
FR-2240
-22K 1 -3.7K 1
-5.5K 1 -7.5K 1 -1lK
-15K 1 -22K 1 -3OK 1 -37K ] -45K 1 -55K
2 Output halt signal
Output halt input signal terminal is available.
5 .$ Operation status
“RUN”,
“SU” ‘(up-to-frequency) , ‘OL” (overload) ,
“IPF” (instantaneous power failure) and
i3
output signals and “FU” (frequency detection) signals
a
Alarm output signal IC relay contact signal (AC230V 0.3A, DC30V 0&3A)
Overcurrent shutoff (during acceleration,’ deceleration and normal operation) , regenerative
Protective, alarm and
overvoltage shutoff (electronic terminal relay) ,
brake transistor fault detection (*
5
> , groun
warning functions
fault overcurrent protection, heatsink overheat protection, brake regenerative resistor overhee
protection ( *
5
> , stall prevention and overload alarm
Ambient temparature -10°C to +5O”C (to be free from freezing)
2
Ambient humidity 9O%RH or less (to be free from condensation)
ii!
Storage temparature (
l
6 )
-20°C to +65”C
2
‘5’
Atmosphere
Indoor
To be free from corrosive gases and dense dust
I3
Altitude, vibration
Below 1OOOm (3300ft)
0.6G or less (conforms to JIS CO911 >
Built-in optional units Maximum 2 cards can be used.
Protective structure
(JEM 1030)
Enclosed type (IP20)
Open type (IPOO)
Weight kg (Lb)
10.5 11
12
25
47
71
(23.15); '(24.25) (26.46) (55.12)
(632993)
(103.62) (156.53;
Notes :
l
6. This function is ‘not provided in models FR-Z220-0.4K to 1.5K having no cooling fan.
’ 7. This is
“short-time storage temperature” (during transport, for example) .
