8 1. CONSTRUCTION

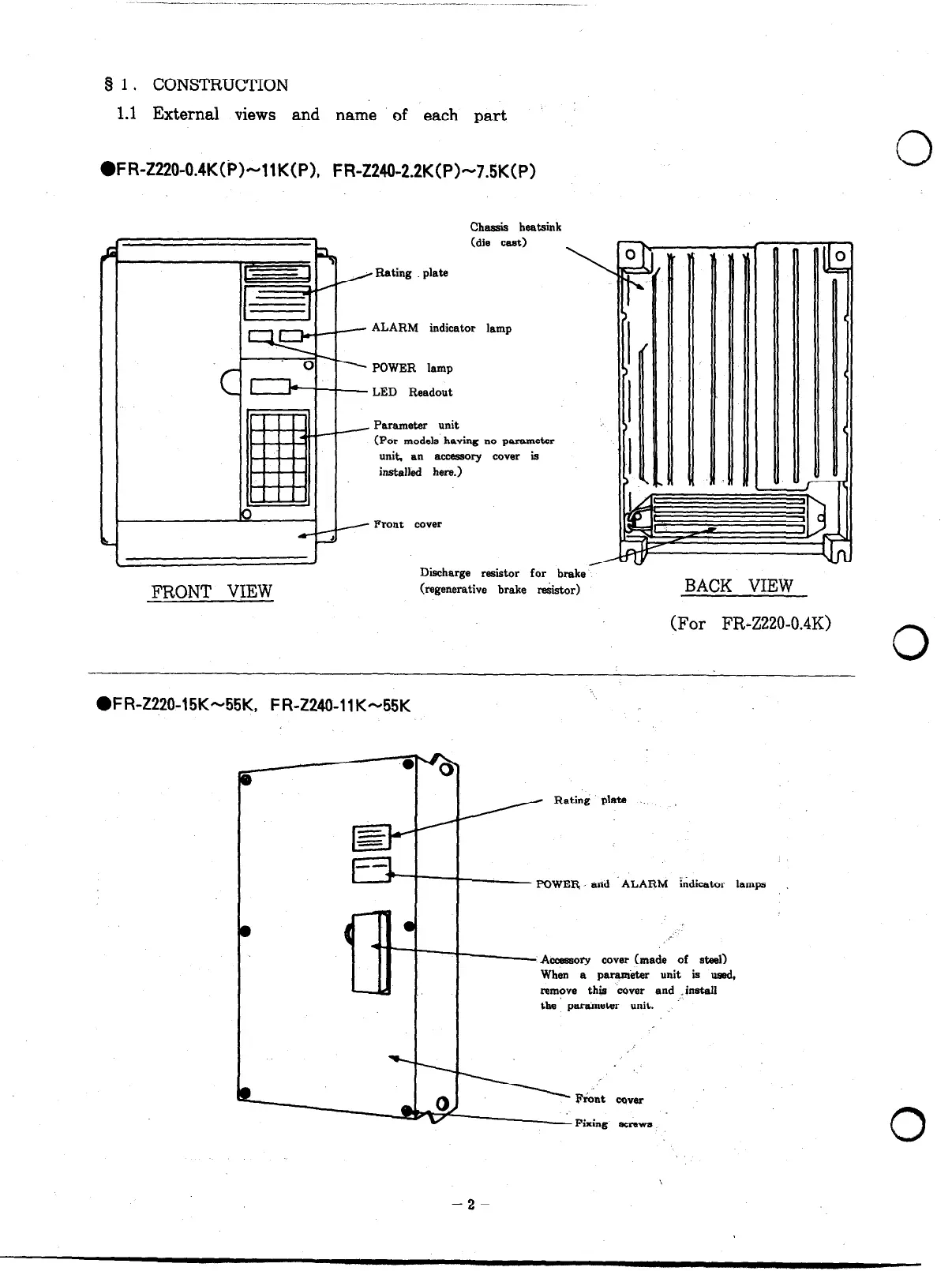

1.1 External views and name of each part
0
.FR-2220-0.4K(~)-11K0, FR-Z240-2.2K(P)-7.5KCP)
~~ -
FRONT VIEW
Chassis heatsink
(die cast)
\f--
, Rating plate
- ALARM indicator lamp
. POWER lamp
- LED Readout
- Parameter unit
(For models having no parameter
unit. an accessory cov*r is
installed hem.)
Discharge resistor for brake
(regenerative brake r&i&or)
BACK VIEW
(For FR-Z220-0.4K)
l
FR-Z220-15K-55K, FR-Z240-llK-55K
- POWER. atid ALARM indicator lamps
- A-ory cover (made of steel)
When a parameter unit is used,
remove this cover and .instaU
the paraineter unit.
3
0
