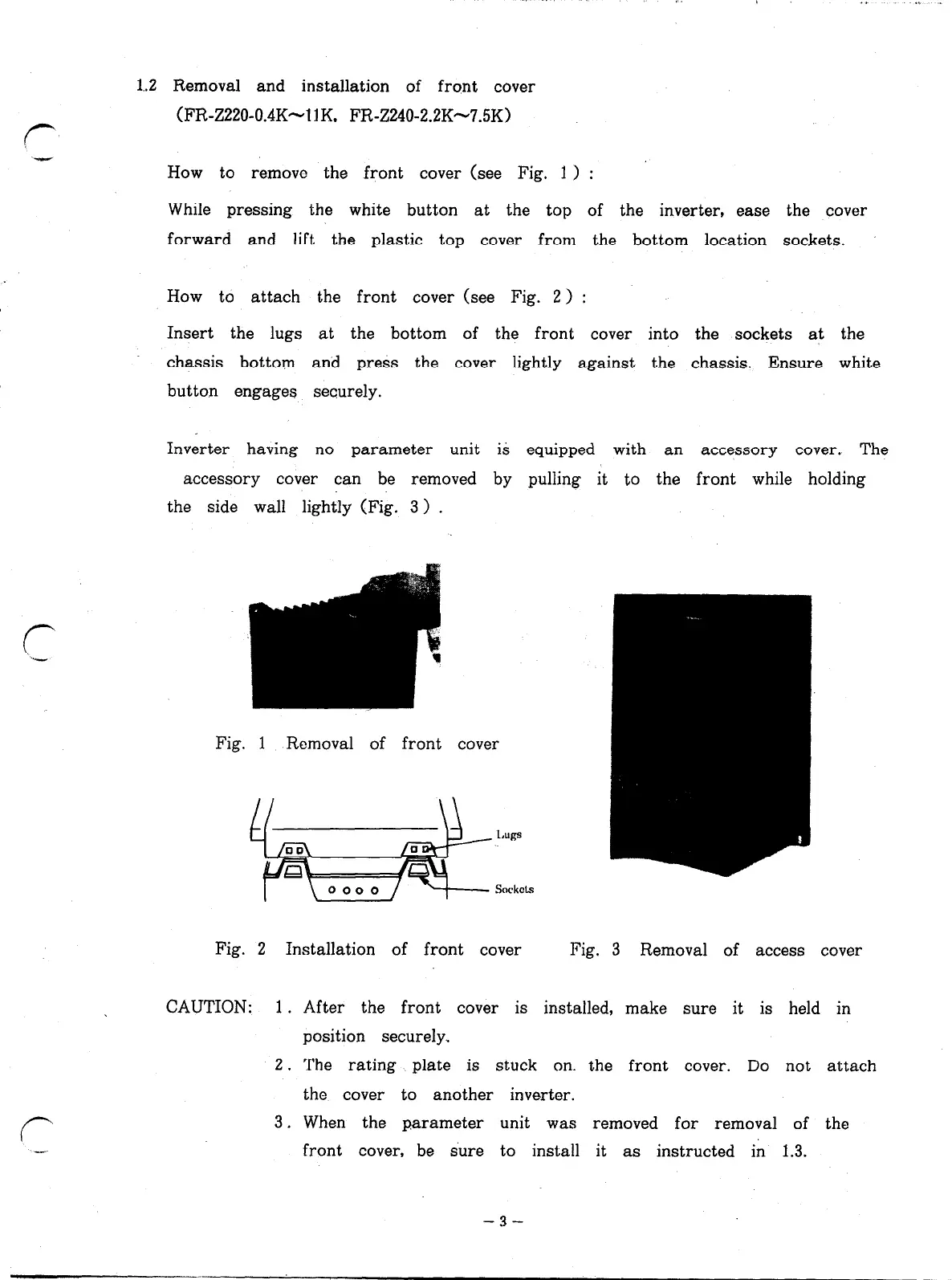

1..2 Removal and installation of front cover
(FR-Z220-0.4K--11 K, FR-Z240-2.2K-7.5K)
f-
How to remove the front cover (see Fig. 1 ) :
While pressing the white button at the top of the inverter, ease the cover
forward and lift the plastic top cover
from the bottom location sockets.
How to attach the front cover (see Fig. 2 ) :
Insert the lugs at the bottom of the front cover into the sockets at the
chassis bottom and press the cover lightly against the chassis. Ensure white
button engages securely.
Inverter having no parameter unit is
equipped with an accessory cover. The
accessory cover can be removed by pulling it to the front while holding
the side wall lightly (Fig. 3 ) .
Fig. 1 Removal of front cover
Fig.
2 Installation of front cover
Fig. 3 Removal of access cover
CAUTION: 1 . After the front cover is installed, make sure it is held in
position securely,
2, The rating plate is stuck on. the front cover. Do not attach
r
--.
the cover to another invertor.
3. When the parameter unit was removed for removal of the
front cover, be sure to install it as instructed in 1.3.
-3-
