1.3 Removal and installation of parameter unit
How to remove the parameter unit (Fig. 4 > : i
Remove two parameter unit mounting screws and ease the unit forward.
How to install the parameter unit:
Put the plug (connector) of the para-
meter unit into the connector of the
inverter.
While holding the parameter unit in
position, tighten two mounting screws.
(Do not over-tighten)
CAUTION: never install the parame-
ter unit to the inverter
with the front cover re-
moved.
Connector
hc%ptacle)
If the inverter must be operated with
‘the front covw removed always use
the extension cable. See page 113.

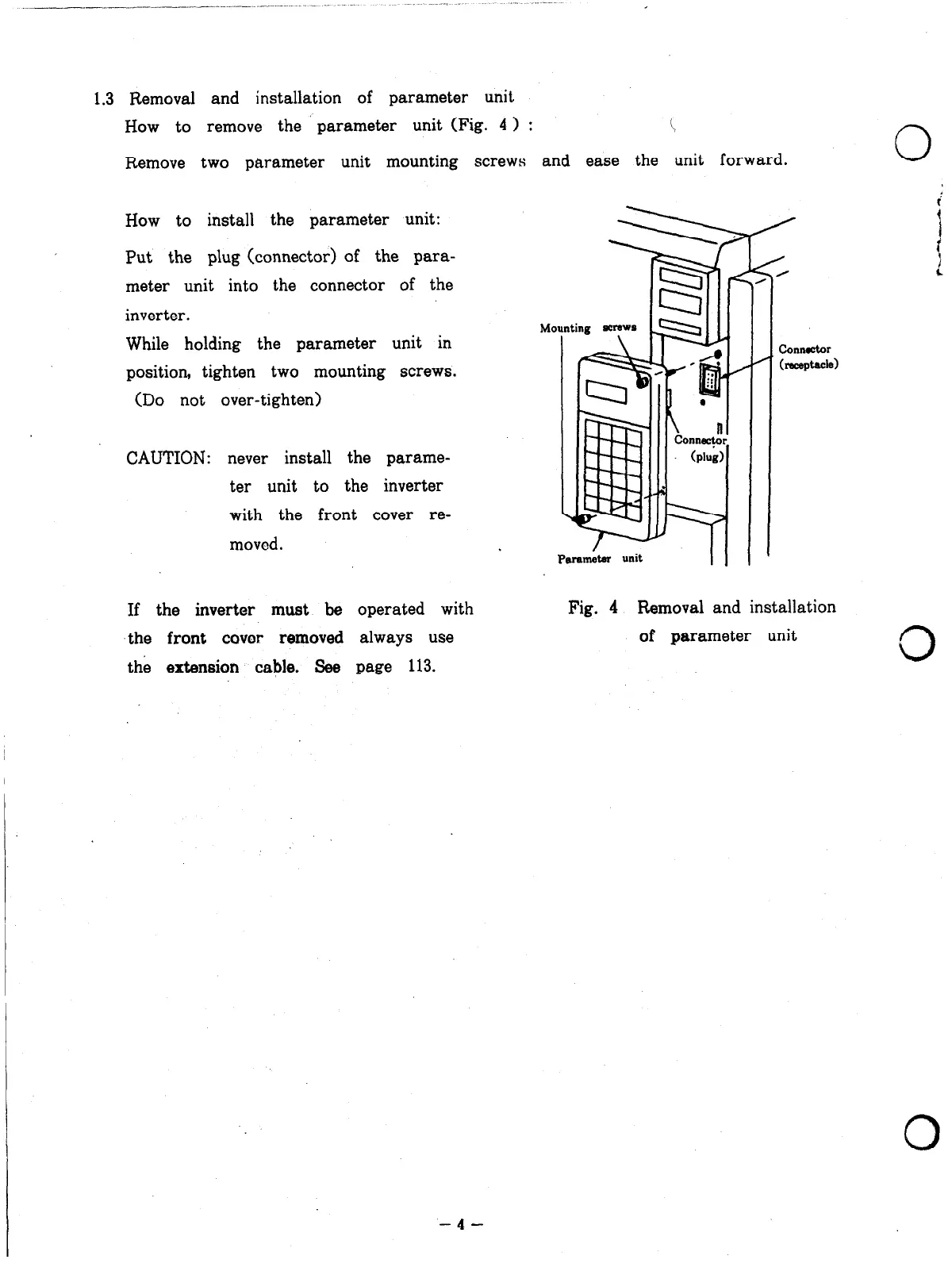

Fig. 4 Removal and installation
of parameter unit
0
0
-4-
