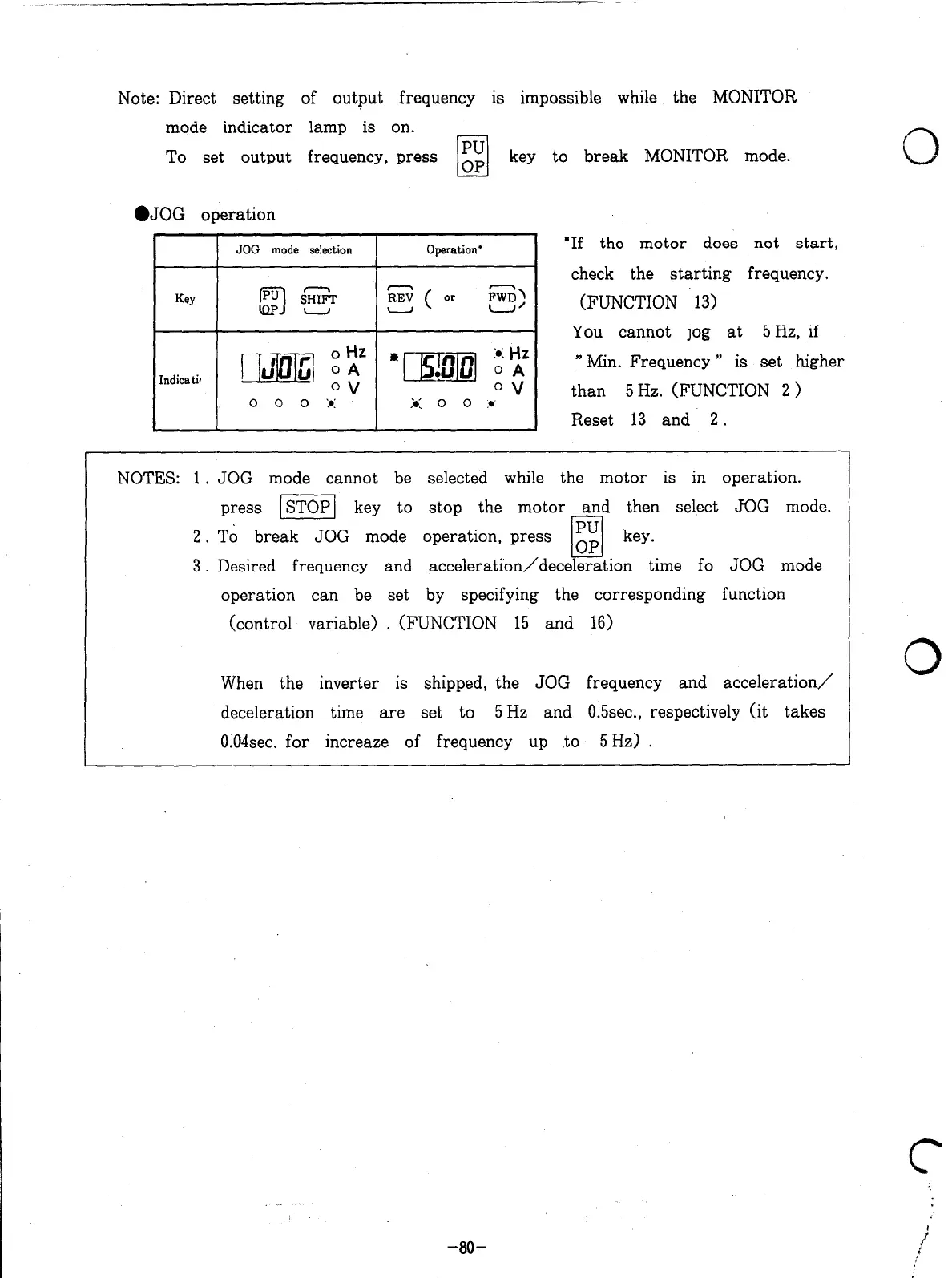

Note: Direct setting of output frequency is impossible while the MONITOR
mode indicator lamp is on.
To set output frequency, press
key to break MONITOR mode.
l
JOG operation
Key
JOG mode selection Operation’
hdicatig
0 0 0 b’ ,. 3: 0 0 ..’
*If the motor does not start,
check the starting frequency.
(FUNCTION 13)
You cannot jog at 5 Hz, if
” Min. Frequency ” is set higher
than 5
HZ.
(FUNCTION 2 )
Reset 13 and 2 .
NOTES: 1 . JOG mode cannot be selected while the motor is in operation.
press STOP key to stop the motor and then select JOG mode.
2 . To break JOG mode operation, press
3. Desired frequency and acceleration/deceleration time fo JOG mode
operation can be set by specifying the corresponding function
(control variable) . (FUNCTION 15 and 16)
When the inverter is shipped, the JOG frequency and acceleration/
deceleration time are set to 5 Hz and 0.5sec., respectively (it takes
0.04sec. for increaze of frequency up .to 5 Hz) .
0
0
-8O-
;
