Removal sequence
Installation sequence
Follow the removal sequence in reverse.
• Do not allow any flames or sources of heat near the fuel tank, as it may explode.
• Fuel is highly flammable. Keep it away from flames and sources of heat.
• To avoid risk of fire, wipe up any spilled fuel.
Tightening torque (Unit: N·m {kgf·m})
Mark Parts to be tightened Tightening torque Remarks
Bolt (fuel tank bracket mounting) 70 to 90 {7.1 to 9.1} –
Nut (fuel tank band mounting) 6.9 to 9.8 {0.7 to 1.0} –
Fuel cock 15 to 25 {1.5 to 2.5} –

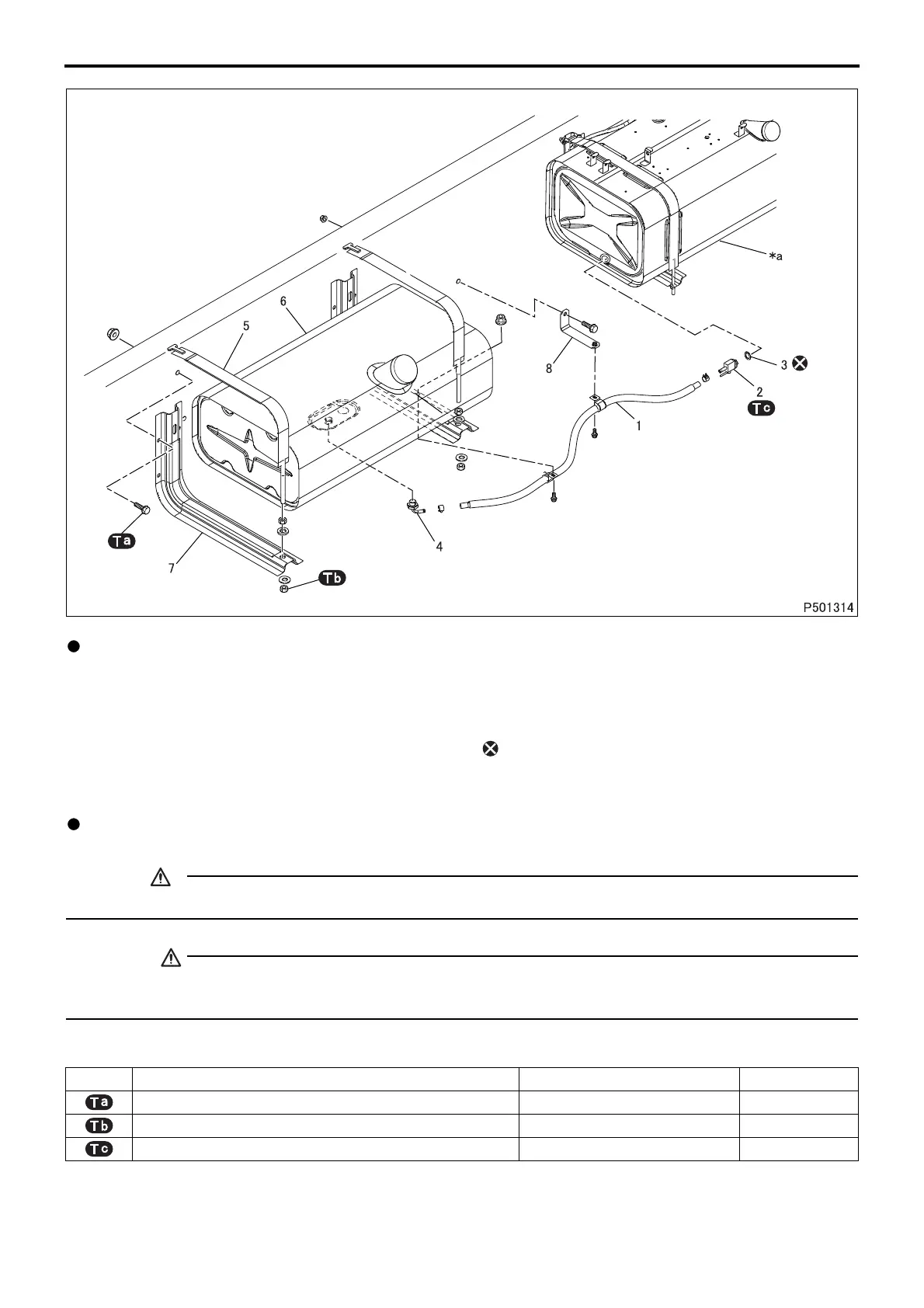

1 Fuel hose
2 Fuel cock
3 Gasket
4 Connector
5 Fuel tank band
6 Fuel tank
7 Fuel tank bracket
8 Fuel hose bracket
*
a: Main fuel tank
: Non-reusable parts
