13E-2
1. Overview
In the common rail system, an electronic control unit monitors various aspects of the engine (engine speed, throt-
tle opening, coolant temperature, etc.) using information from sensors. In accordance with these data, the elec-
tronic control unit effects control over the fuel injection quantity, fuel injection timing, and fuel injection pressure in
order to optimize the engine’s operation.
The electronic control unit has a diagnosis function that enables it to recognize abnormalities in the common rail
system’s major components and alert the driver to them.

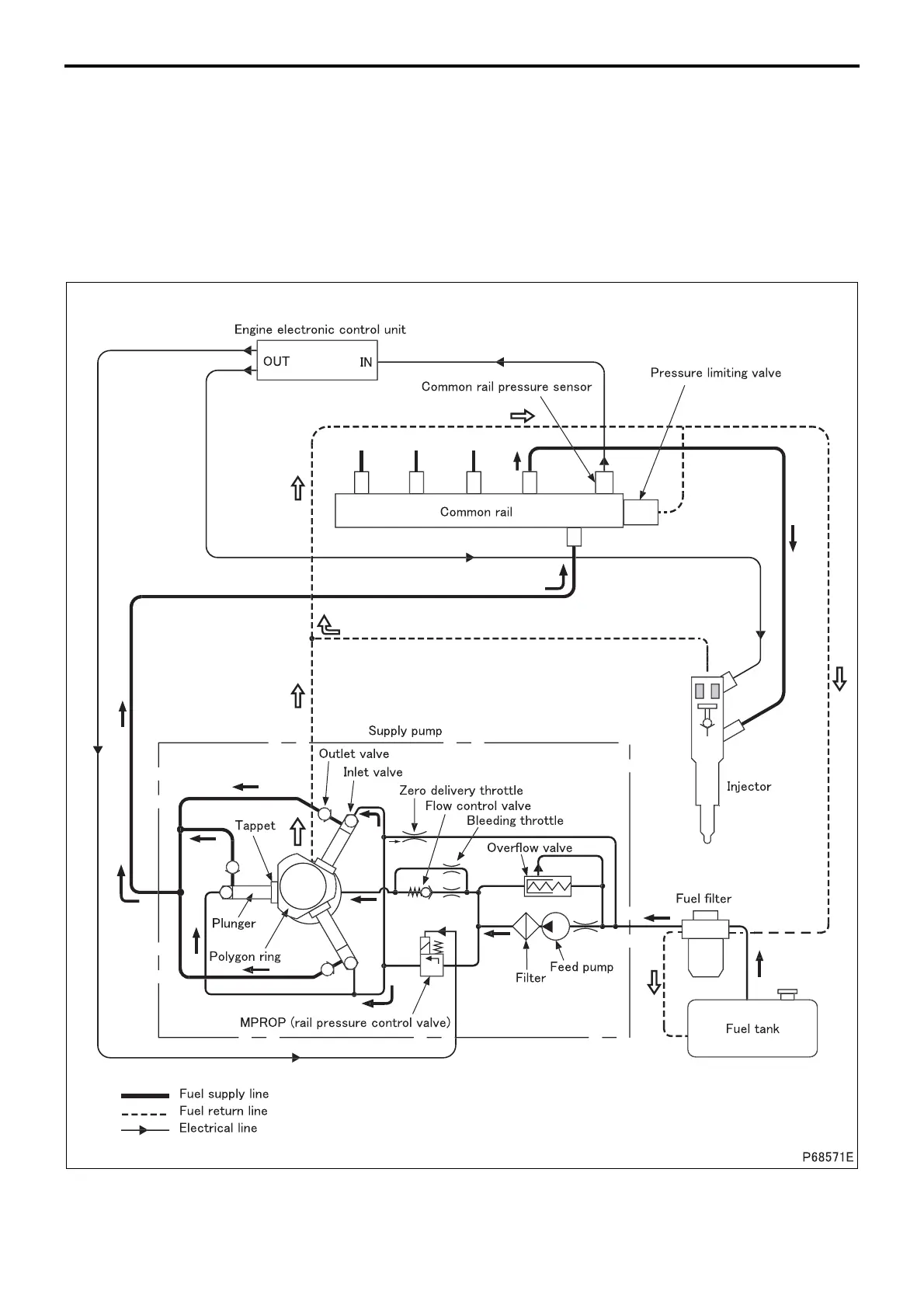

The common rail system consists mainly of an electronically controlled supply pump; injectors; a common rail;
and the electronic control unit and sensors that are used to control the other components.
STRUCTURE AND OPERATION
