Lubricant and/or sealant

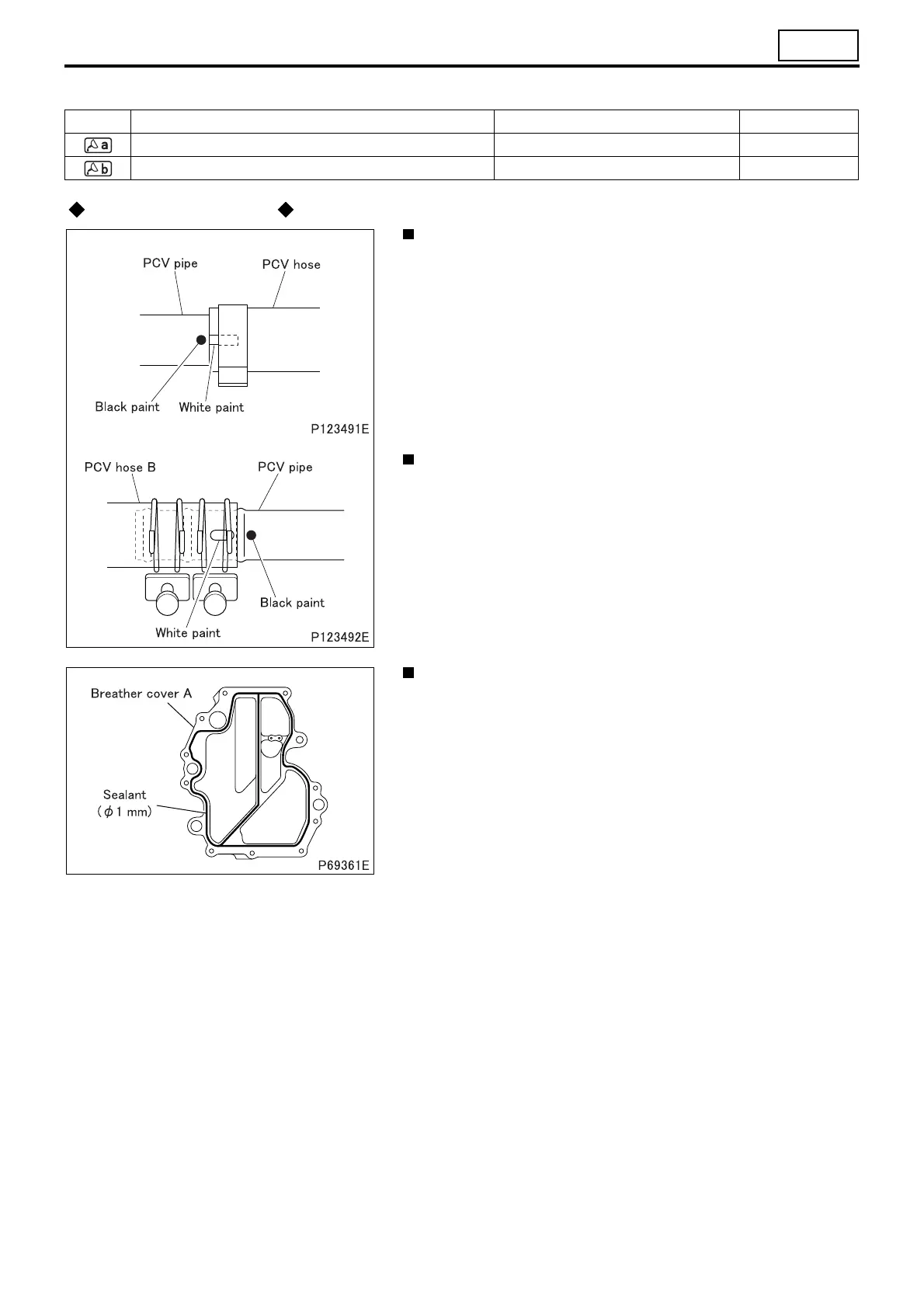

Installation procedures
Installation: PCV hose
• Install the PCV hose to the PCV pipe with the white paint on the
hose and the black paint on the pipe aligned as shown in the il
-
lustration.
Installation: PCV hose B
• Install the PCV hose B to the PCV pipe with the white paint on
the hose and the black paint on the pipe aligned as shown in the
illustration.
Installation: Breather cover A
• Clean the sealant application surfaces of each part.
• Apply a bead of sealant to the breather cover A evenly and with-
out any breaks as shown in the illustration.
• Install the lower crankcase within three minutes of applying the
sealant to the upper crankcase, being careful not to dislodge the
sealant.
Mark Points of application Specified lubricant and/or sealant Quantity
O-ring Engine oil As required
Mating surface of breather cover A or B ThreeBond 1216 As required
To Next Page
