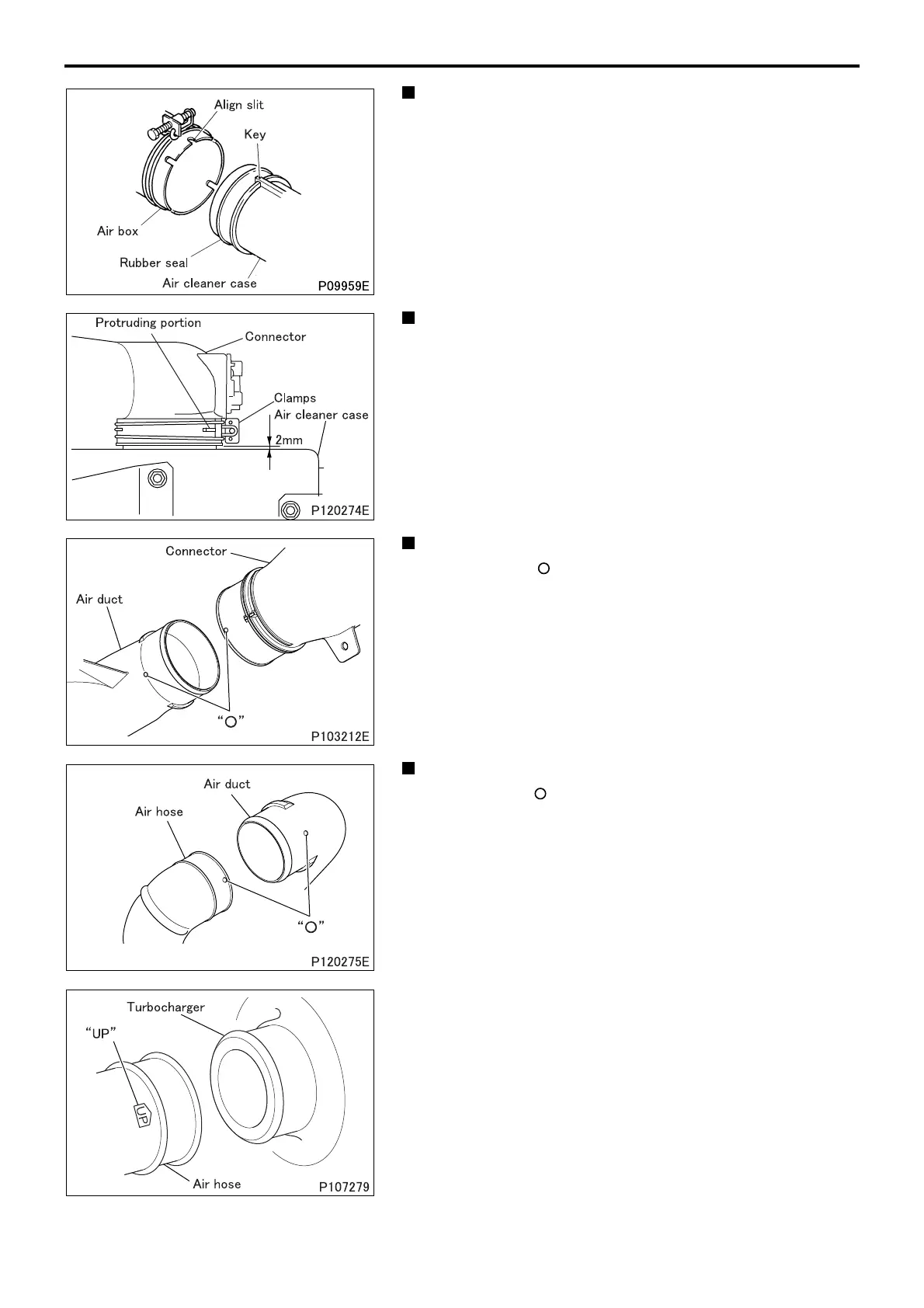

Installation: Air box
• Align slit of air box with key of air cleaner case.
Installation: Connector
• The protruding portion of the connector is put between clamps.
• Installation is such that the space between the connector and
the air cleaner case measures the amount shown in the figure.
Installation: Air duct
• Align the mark “ ” on air duct with the connector’s and push
the air duct in until it hits stopper.
Installation: Air hose
• Align the mark “ ” on air hose with the air duct’s and push the
air hose in until it hits stopper.
• Connect the air hose to the turbocharger with the “UP” mark fac-
ing up.
AIR DUCT AND AIR CLEANER
