14
14-25

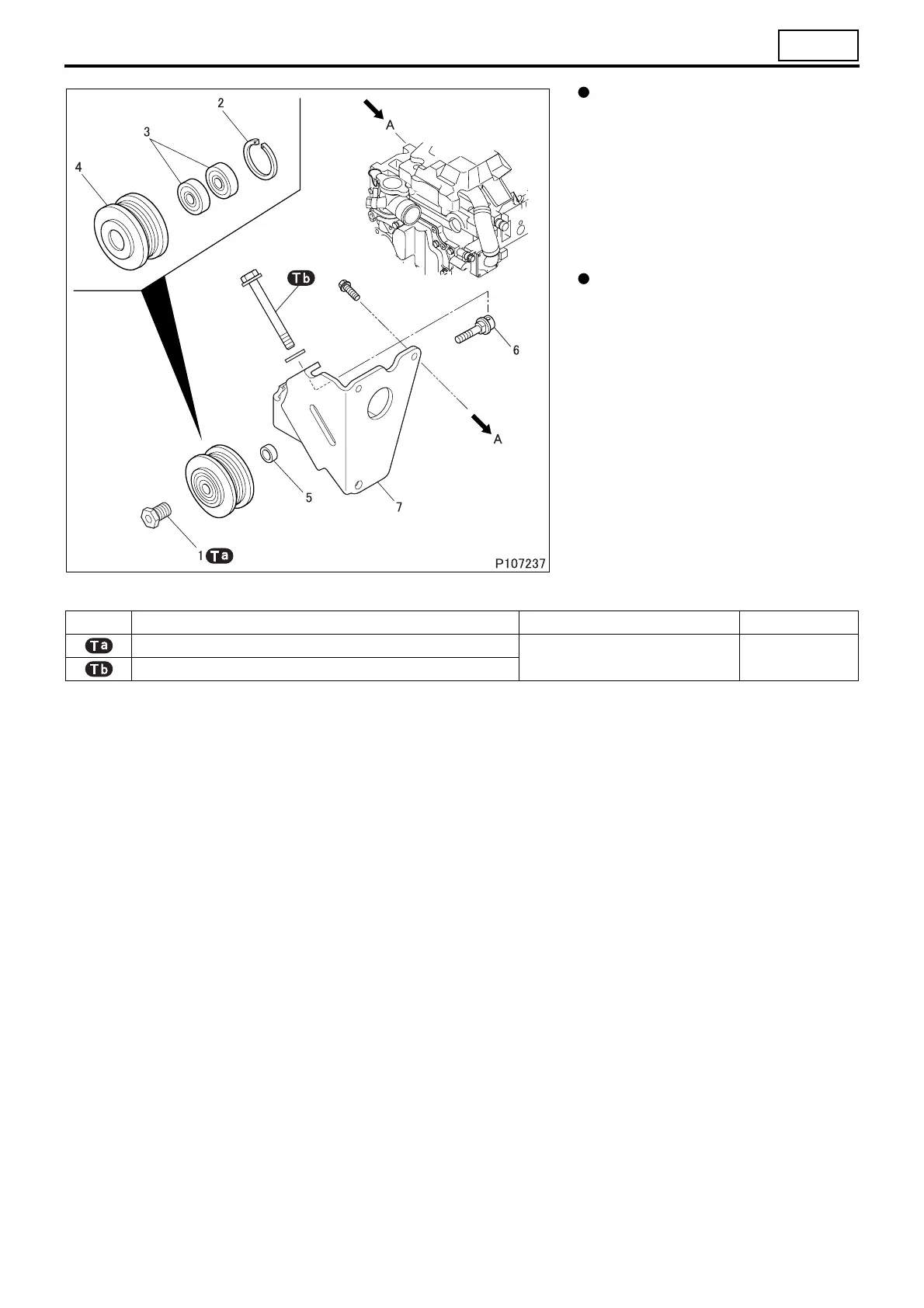

Disassembly sequence
1 Sleeve
2 Snap ring
3 Bearing
4 Tension pulley
5 Spacer
6 Shaft
7 Tension pulley bracket
Assembly sequence
Follow the disassembly sequence in re-
verse.
Tightening torque (Unit: N·m {kgf·m})
Mark Parts to be tightened Tightening torque Remarks
Sleeve
15 {1.5}
Bolt (fixing of shaft)
TENSION PULLEY
