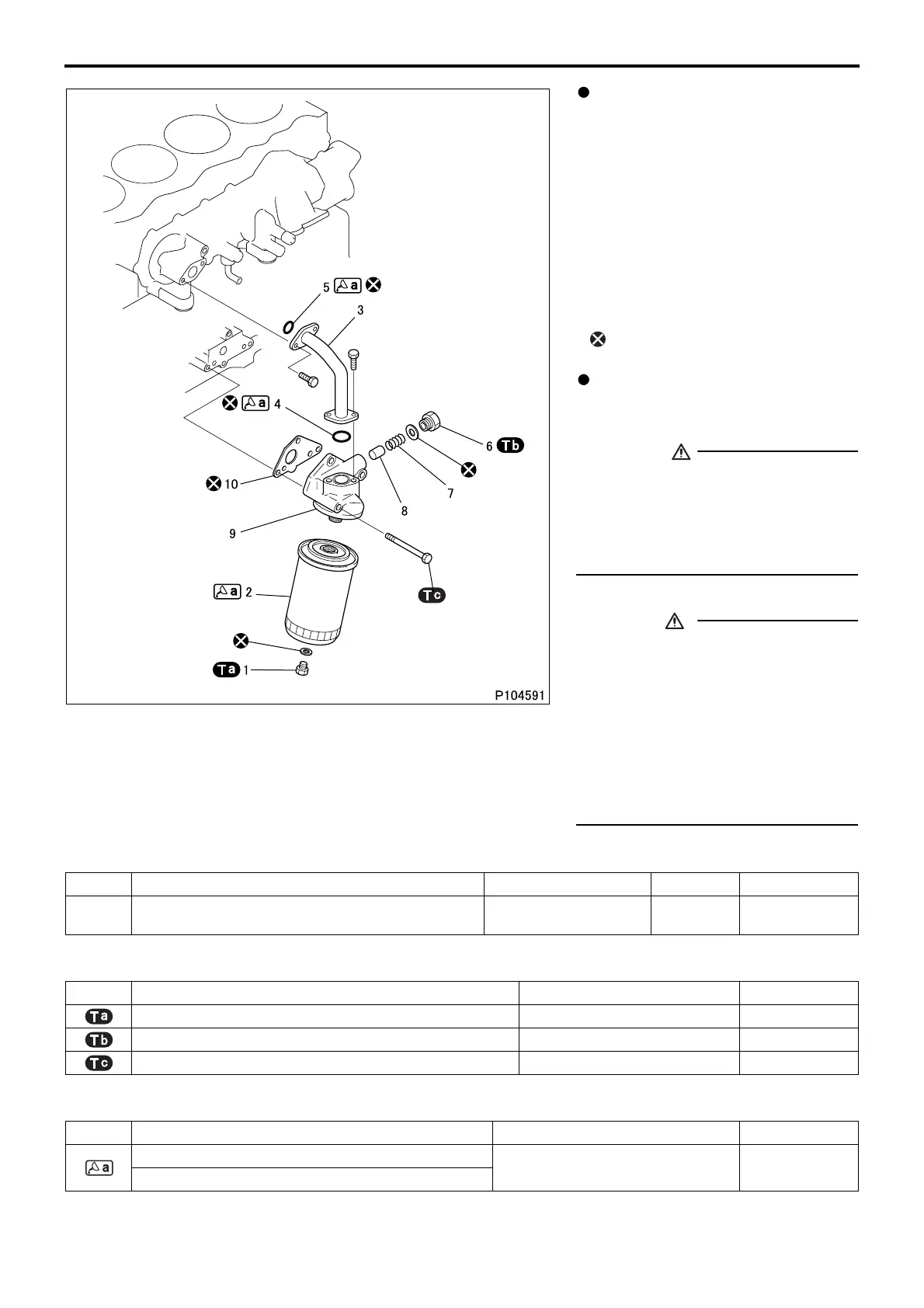

Disassembly sequence
1 Drain plug
2 Oil filter
3 Oil pipe
4 O-ring
5 O-ring
6 Plug
7 Regulator valve spring
8 Regulator valve
9 Oil filter head
10 Gasket
: Non-reusable parts
Assembly sequence
Follow the disassembly sequence in re-
verse.
WARNING
• Wipe up any spilled engine oil, as it
can cause fires.
• To avoid any risk of burns, take
care not to touch the engine oil
when the engine is hot.
CAUTION
• Make sure not to put any engine oil
on the Belt when working on the oil
cooler and oil filter. Belts soiled
with oil or grease may easily slip,
resulting in deteriorated perfor-
mance of the cooling system.
• Make sure to install the gasket in
the correct position so that it does
not cover up the oil hole.
Service standards (Unit: mm)
Tightening torque (Unit: N·m {kgf·m})
Lubricant and/or sealant
Location Maintenance item Standard value Limit Remedy
7
Load of installed regulator valve spring
(installed length: 39 )
93.5 ± 0.5 N
{9.5 ± 0.05 kgf}
–Replace
Mark Parts to be tightened Tightening torque Remarks
Drain plug 9.8 ± 1.96 {1.0 ± 0.2} –
Plug (regulator valve mounting) 60 {6.0} –
Bolt (oil filter head mounting) 44.1 {4.5} –
Mark Points of application Specified lubricant and/or sealant Quantity
Oil filter gasket
Engine oil As required
O-ring
+0.3
0
OIL FILTER
