FX1S Series Programmable Controllers Installation Notes 3
3-3
3.2 FX
1S
RUN/STOP Control
RUN or STOP of the FX
1S
can be controlled by:
nThe RUN/STOP switch mounted next to the programming port.
oA standard input (X0 to X17) defined by the system parameters.
pRemotely from a personal computer or other programming peripheral.
Note
:The FX
1S
RUN/STOP switch works in parallel with the RUN input terminal. Please
refer to Table 3.2.
During remote operation the FX
1S
RUN/STOP status is determined by the most recently
operated control.
E.g. If the RUN/STOP switch is in RUN and a remote STOP is made from a personal
computer, the PLC can only be restarted with the RUN/STOP switch by first moving the
switch to STOP and then back to RUN.

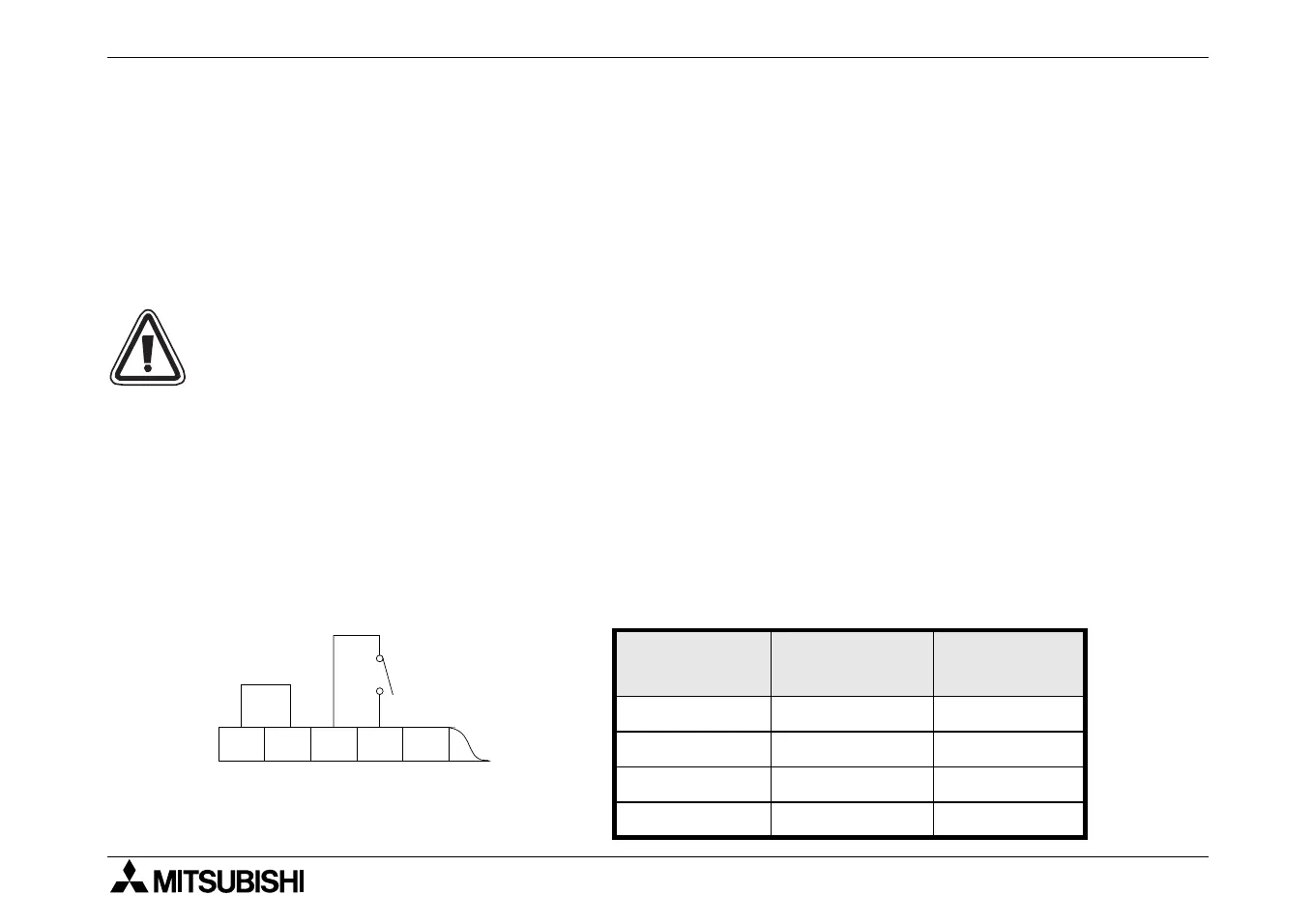

Figure 3.2: RUN/STOP Input Wiring Diagram
Table 3.2: Run Status Table
n
RUN/STOP
SWITCH
o
RUN INPUT
TERMINAL
FX
1S
MPU
STATUS
99
RUN
9
RUN
STOP
9
RUN
X2S/S 0V 24V X0 X1
RUN
➁
